Tenda O3 User Manual

15
receiver in the open air at the point where the IP camera is located.
Step 2 Uncover the housings of the two CPEs, and connect the PoE/LAN/WAN ports of the CPEs
to PoE injectors respectively. The LAN/WAN LED indicators light up.
Step 3 Adjust the two CPEs’ direction or location until the LED1, LED2 and LED3 of the two CPEs
light up.
Step 4 Use the plastic straps to attach the two CPEs to the poles respectively.
Check the LED1, LED2 and LED3 indicators of the CPEs to confirm whether the positions are
proper. The more LED indicators light up, and the better the connection quality is. The LED
indicator descriptions of the CPEs below are for reference.
LED Indicator
Status
Description
LED1, LED2, LED3
(Received signal strength
LED indicators)
Solid on/Blinking
There is device connected to the CPE.

Solid on: The CPE may work in AP, Repeater, P2MP or Router
mode.

Blinking: The CPE may work in Client, Universal Repeater or
WISP mode.
Each LED indicator corresponds to a received signal
strength value. When the received signal strength of the
CPE reaches the RSSI threshold, the corresponding LED
indicator lights up. You can judge the connection quality
based on the statuses of the LED indicators.
By default, the minimum signal strength of LED1, LED2
and LED3 are -90 dBm, -80 dBm and -70 dBm. You can
change them on the Wireless > Advanced page of the
web UI of the CPE.
Off
No device is connected to the CPE, or the received signal
strength is less than the RSSI threshold (default: -90
dBm).

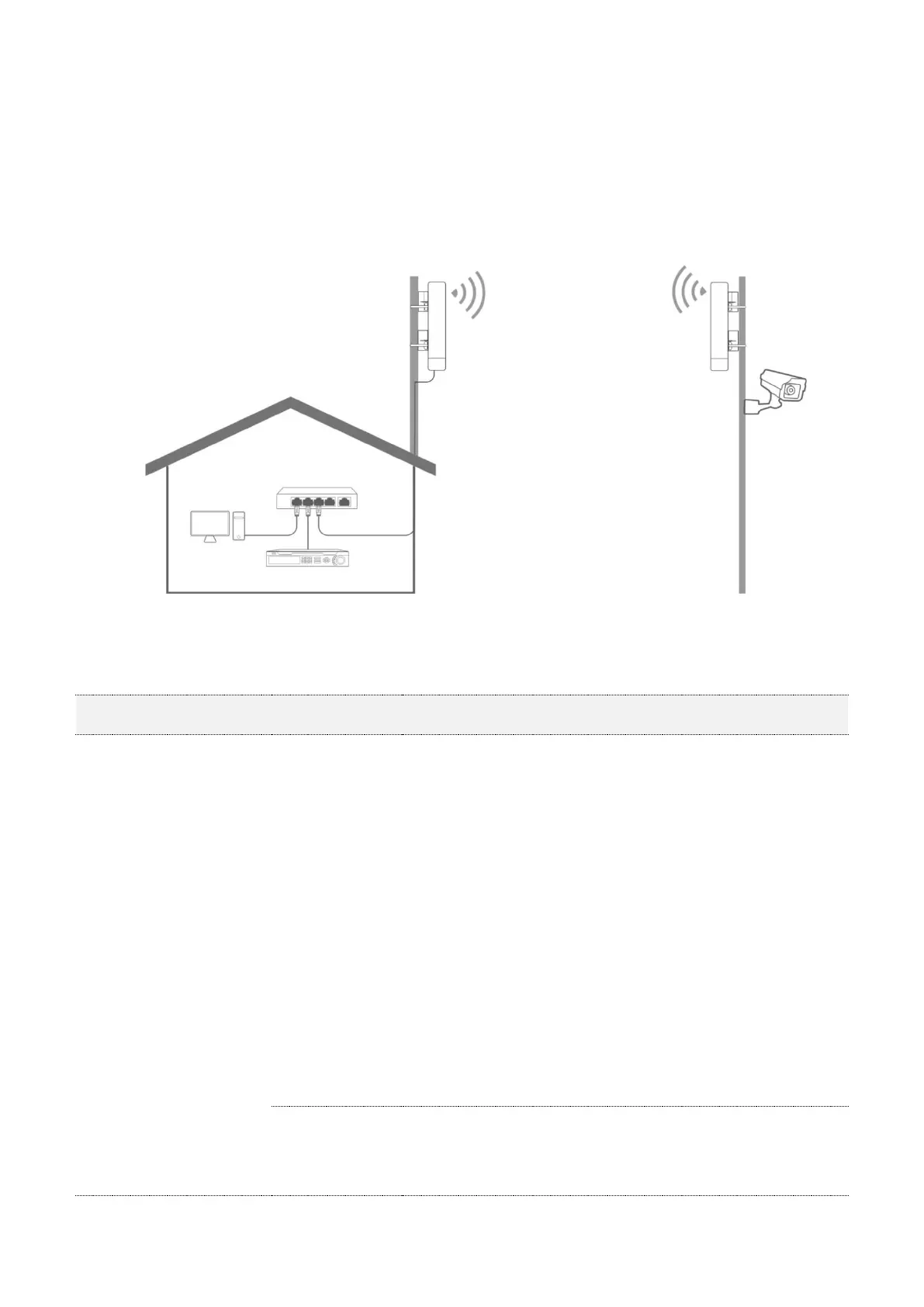

Computer
Switch
NVR
CPE1: AP mode
CPE2: Client mode
IP camera

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
