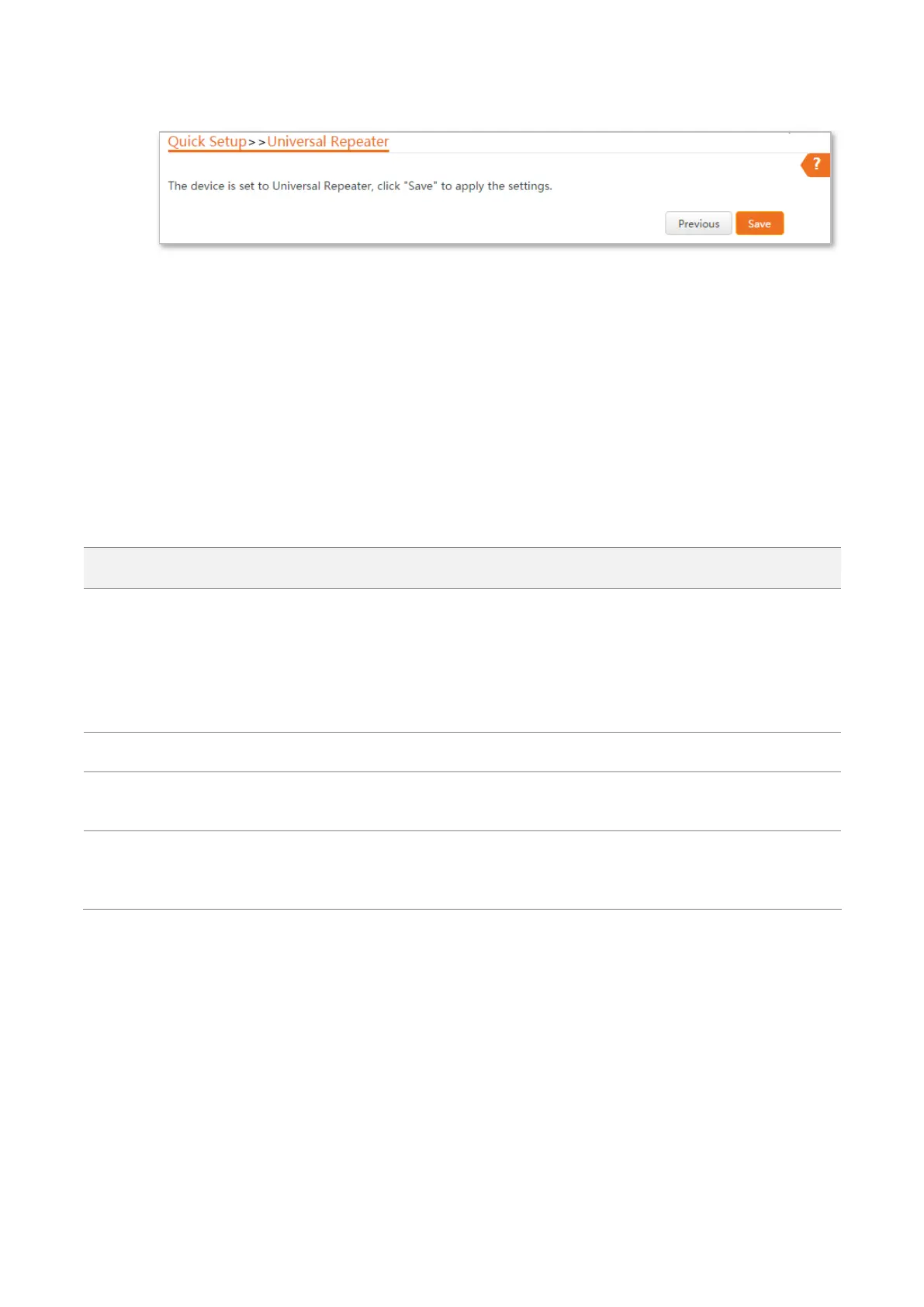

Step 6 Click Save, and wait until the device reboots to activate the settings.
----End
When the LED1, LED2, and LED3 are blinking, the bridging succeeds. The WiFi name and password
of the device are the same as those of the wireless router.
To access the internet with:
 Wireless devices: Connect the wireless devices, such as a smart phone, to the WiFi network of
the CPE using the SSID and key of the wireless router.
 Wired devices: Connect the wired devices, such as a computer, to the LAN port of the power
adapter whose PoE port is connected to the CPE, or the switch connected to the LAN port of
the power adapter.
Parameters description
Name
Description
Working modes
It specifies the working mode of this device.
Universal Repeater mode: In this mode, the device expands your WiFi network for
broader network coverage.
Advantage of Universal Repeater compared with Repeater mode: This mode does not
require that the upstream AP supports WDS function.
Upstream AP
It specifies the wireless network name (SSID) of the upstream AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be
automatically populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be automatically
populated when you select an SSID to bridge. If the WiFi network to be bridged has a WiFi
password, you need to enter the password manually.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
