Tenda O3 User Manual

35

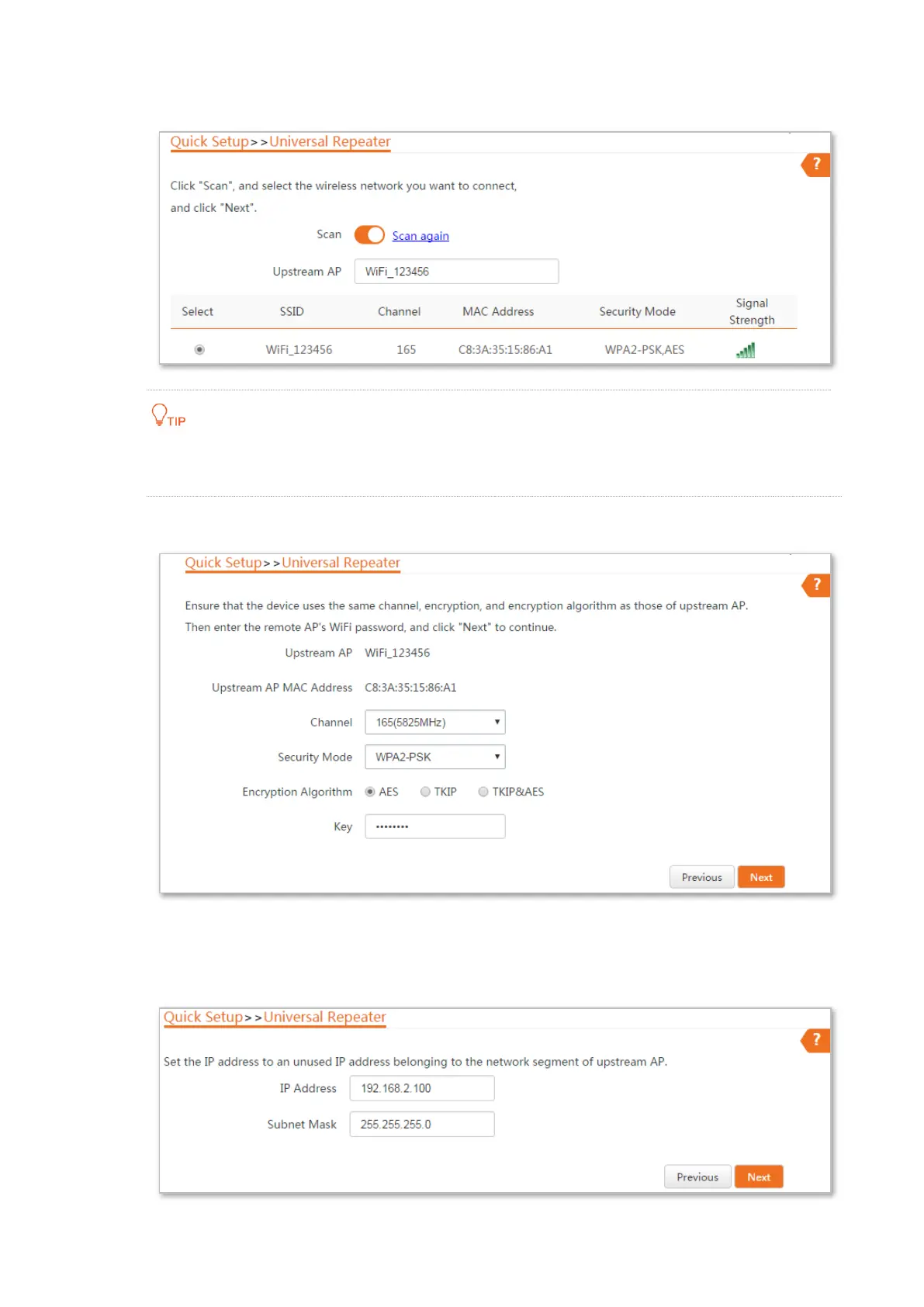

Step 3 Select the SSID of the router and click Next at the bottom of the page.
If you cannot find the SSID of the router from the list, ensure that the WiFi network of the router is
enabled. Only the WiFi networks at the same band as that of the CPE will be displayed in the list.
Step 4 Enter the WiFi password of the router in the Key text box, and click Next.
Step 5 Set the IP address to an unused IP address belonging to the same network segment as
that of the router. For example, if the IP address of the router is 192.168.2.1, you can set
this device’s IP address to 192.168.2.X (X ranges from 2 to 254). Then click Next.
*

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
