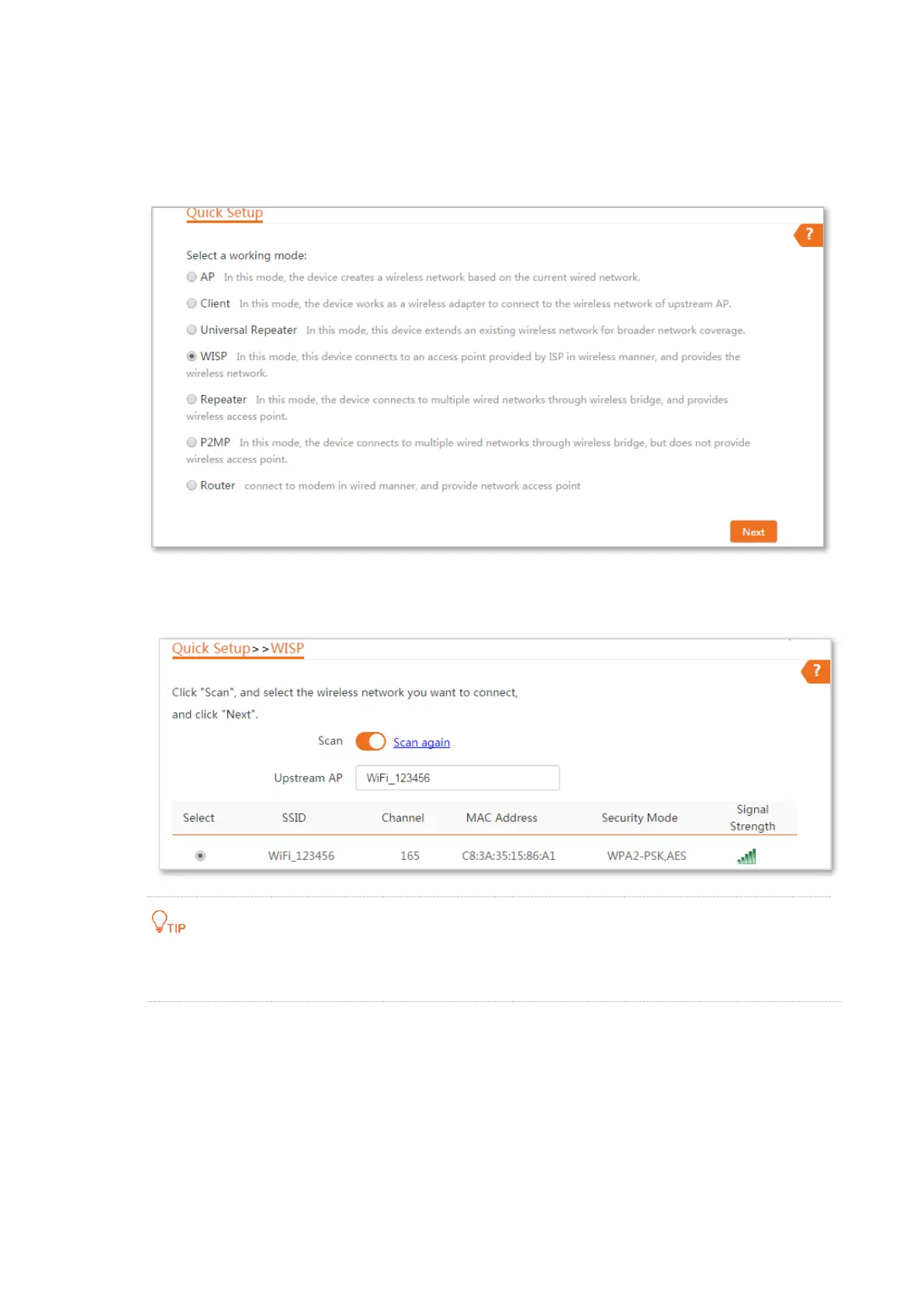

45
Configuration procedures
Step 1 Log in to the web UI of this CPE and choose Quick Setup to enter the configuration page.
Step 2 Select WISP, and click Next.
Step 3 Select the SSID of your ISP (Internet Service Provider) hotspot, which is WiFi_123456 in
this example, and click Next at the bottom of the page.
If you cannot find the SSID of the router from the list, ensure that the WiFi network of the router is
enabled. Only the WiFi networks at the same band as that of the CPE will be displayed in the list.

Other manuals for Tenda O3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda O3 and is the answer not in the manual?

Tenda O3 Specifications

General IconGeneral
5 GHzNo
2.4 GHzYes
Number of users15 user(s)
Transmitting power29 dBmW
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivityMCS0: -88dBm MCS7: -72dBm
Maximum outdoor range5000 m
Maximum data transfer rate150 Mbit/s
USB 2.0 ports quantity0
Ethernet LAN (RJ-45) ports1
PlacementWall
CertificationFCC / CE / RoHS
Product colorWhite
LED indicatorsLAN, Power, WAN
International Protection (IP) codeIP64
Antenna featuresIntegrated antenna
Antenna gain level (max)12 dBi
Output current1 A
Output voltage12 V
Power consumption (max)6 W
Security algorithmsWPA, WPA2, WPA2-PSK
Cables includedLAN (RJ-45)
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth94.86 mm
Width270 mm
Height67.5 mm
