Parameters description
Name
Description
Working modes
It specifies the working mode of this device.
Repeater mode: In this mode, the device can connect 2 or more (this device supports 4
at most) wired networks with a wireless link, and can be connected with both wired and
wireless clients. To use the Repeater function of this device, the peer AP is required to
support WDS function, and use the same radio band as that of this device.
Peer AP
It specifies the wireless network name (SSID) of the peer AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be
automatically populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be automatically
populated when you select an SSID to bridge.
The Repeater mode only supports WEP and None security modes.

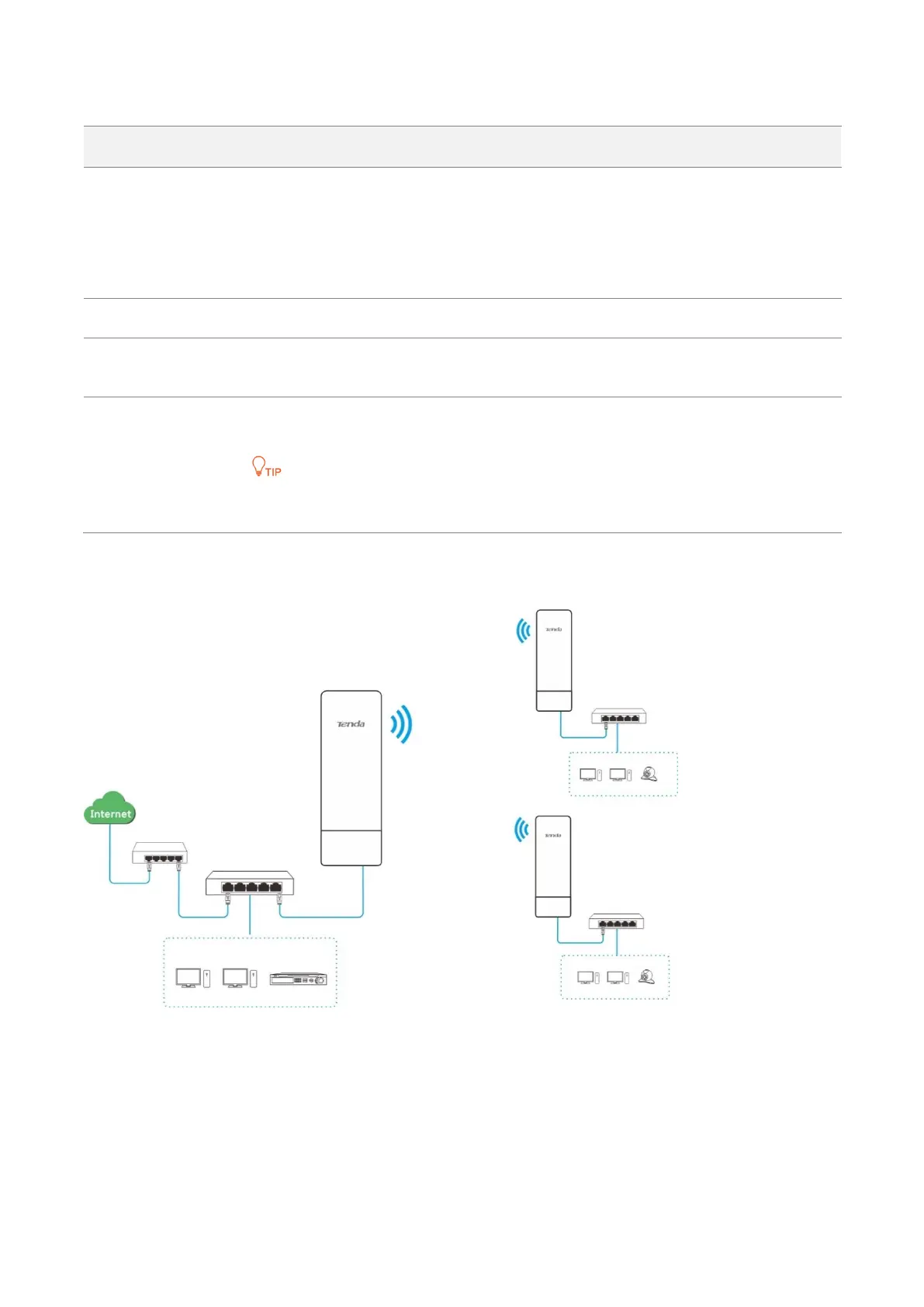

Configuration procedures of peer to multiple peers briding
Assume that the related parameters are shown as follows:
CPE1:
− IP Address: 192.168.2.1
− SSID: Tenda_123456
− Channel: 165
− Security mode: None
CPE1 in Repeater mode
CPE2 in Repeater mode
CPE3 in Repeater mode
Switch
Switch
Switch

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
