Tenda O3

53
CPE2:
− SSID: Tenda_1
− WLAN MAC address: C8:3A:35:15:86:8C
CPE3:
− SSID: Tenda_2
− WLAN MAC address: C8:3A:35:01:8C:C9
Step 1 Set the CPE2 to the Repeater mode.

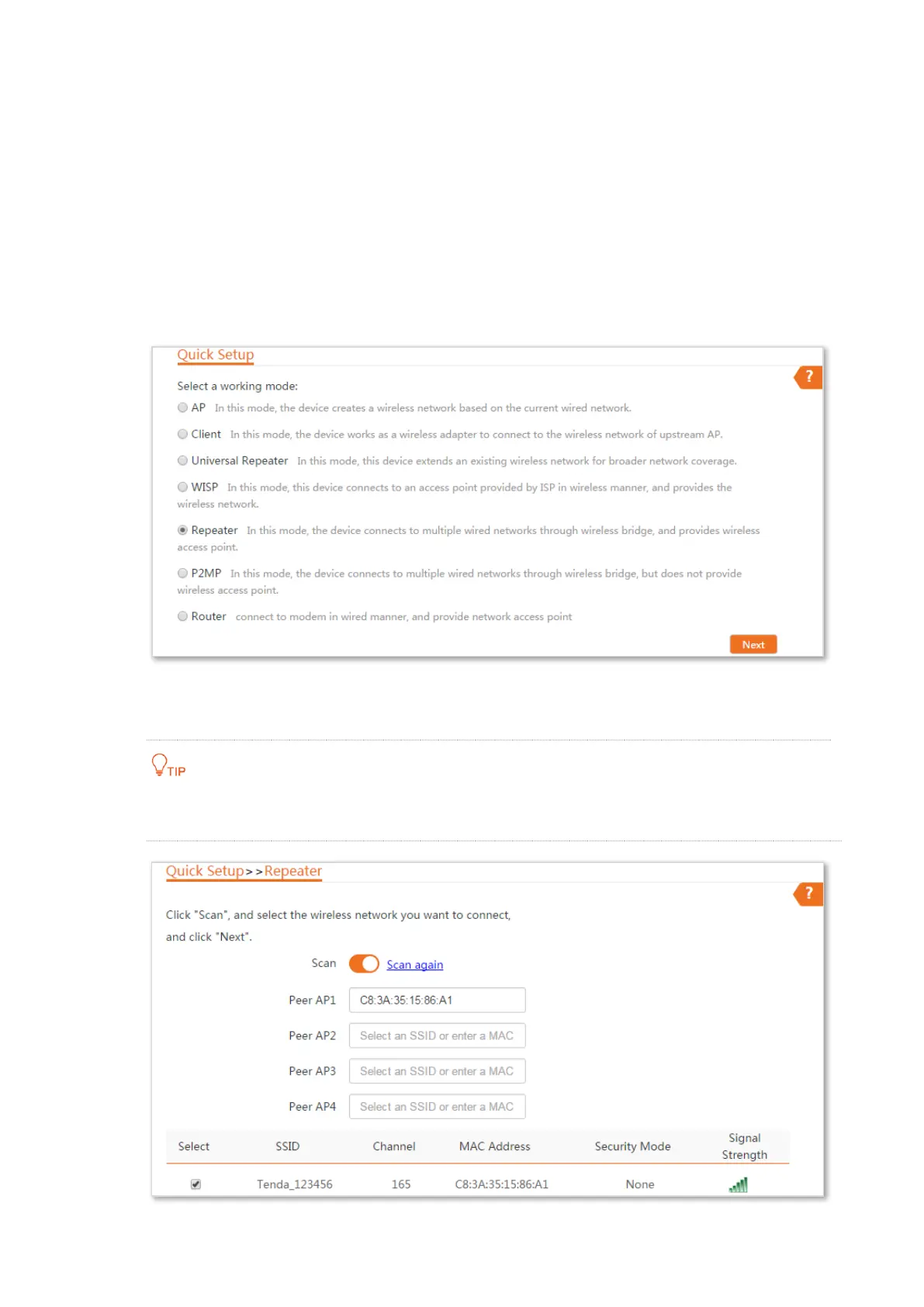

1. Log in to the web UI of CPE2, and choose Quick Setup, and select Repeater.
2. Select the SSID of CPE1 from the list, which is Tenda_123456 in this example, and click
Next at the bottom of the page.
If you cannot scan the SSID of CPE1 from the list, choose Wireless > Basic and enable the wireless
function. Then try again.
