Tenda PH3 AV1000 User Manual

Access the Internet
5
Procedure:
 Plug in your adapters.
 Wait until the PLC LEDs on the two adapters are lit.

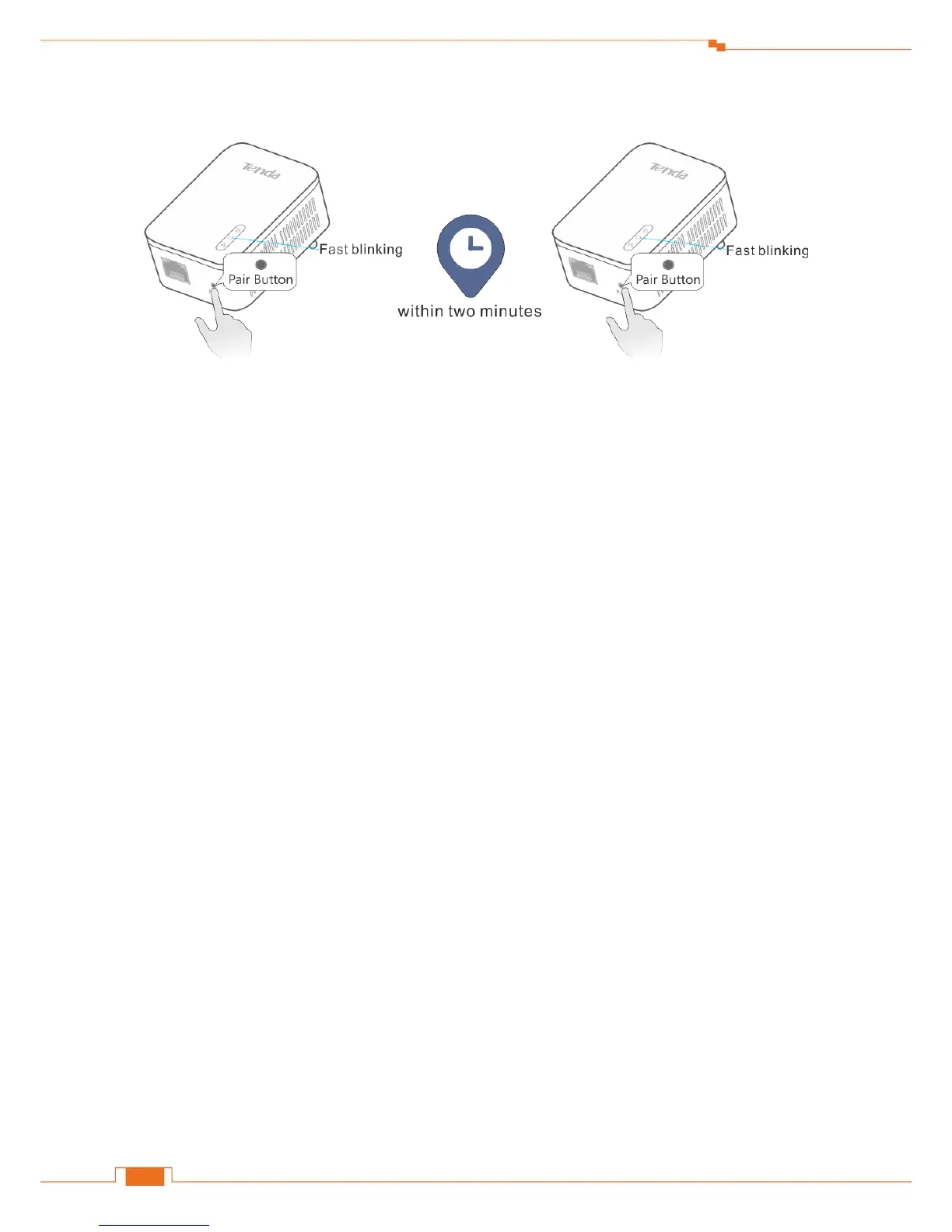

 Press the Pair button on one adapter for 1 second, and the PLC LED on the adapter starts
blinking.
 Then press the Pair button on the other adapter for 1 second.
Both buttons must be pressed within two minutes.
Observe the PLC LEDs on the two adapters until they are lit again. It indicates that a secure
powerline network is established successfully between the two adapters.

Tenda PH3 AV1000 Specifications

General

Model	PH3
Type	Powerline Adapter
Data Transfer Rate	1000 Mbps
Encryption	128-bit AES
Button	Pair Button
Modulation Technology	OFDM
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Technology	HomePlug AV2
Operating Voltage	100-240V AC
Operating Frequency	50/60Hz
Plug Type	EU, UK, US
Standards	IEEE 802.3, IEEE 802.3u
LED Indicators	Power, Ethernet
Input	AC 100-240V~50/60Hz 0.1A
Frequency Band	2-68MHz
System Requirements	Windows, Mac, Linux
Package Content	2 x Ethernet cables, Quick Installation Guide
Ports	1 x RJ45
Interface	Gigabit Ethernet Port
