300Mbps Wireless Access Point
Appendix : WDS Application Instances
The configurations of P2P, P2MP and Wireless Repeater in WDS mode
are almost the same. The number of devices which need to be
configured is different according to different mode. The following steps
take P2P for example.
If you want to establish P2P transmission between AP1 and AP2, you
need to set the parameters as follows.

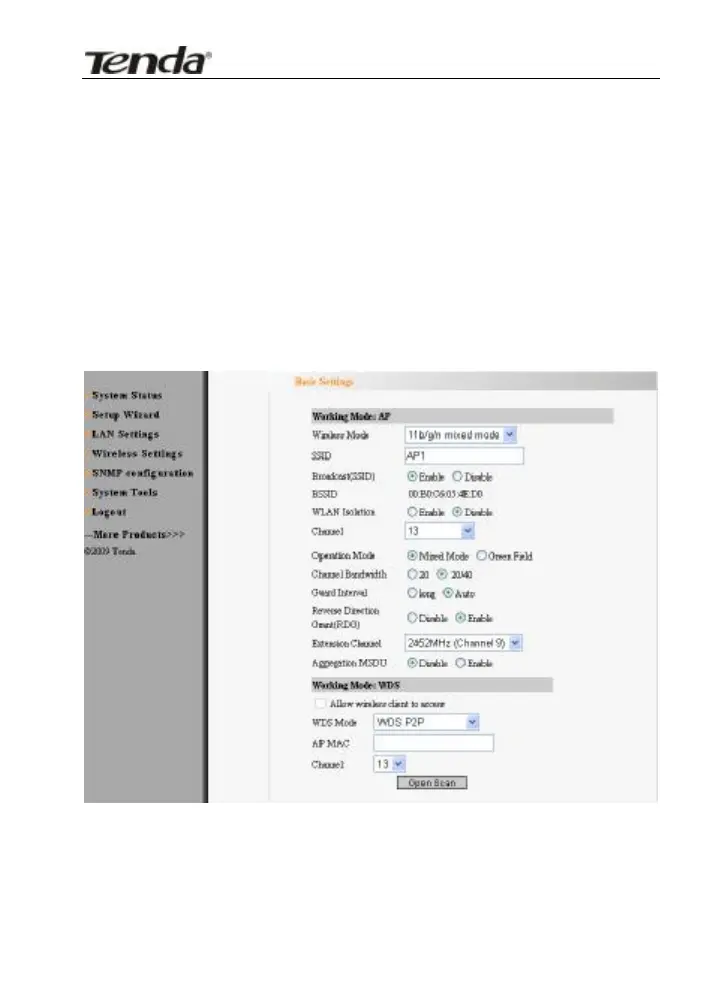

Select “WDS” mode in Setup Guide for AP1 and set the SSID as “AP1”
and channel as “13”. The BSSID is 00:b0:c6:05:4e:d0.
Click “Next” to enter the WDS Security Setting.
To Next Page
