300M Wireless AP
8
Chapter 2 Installation

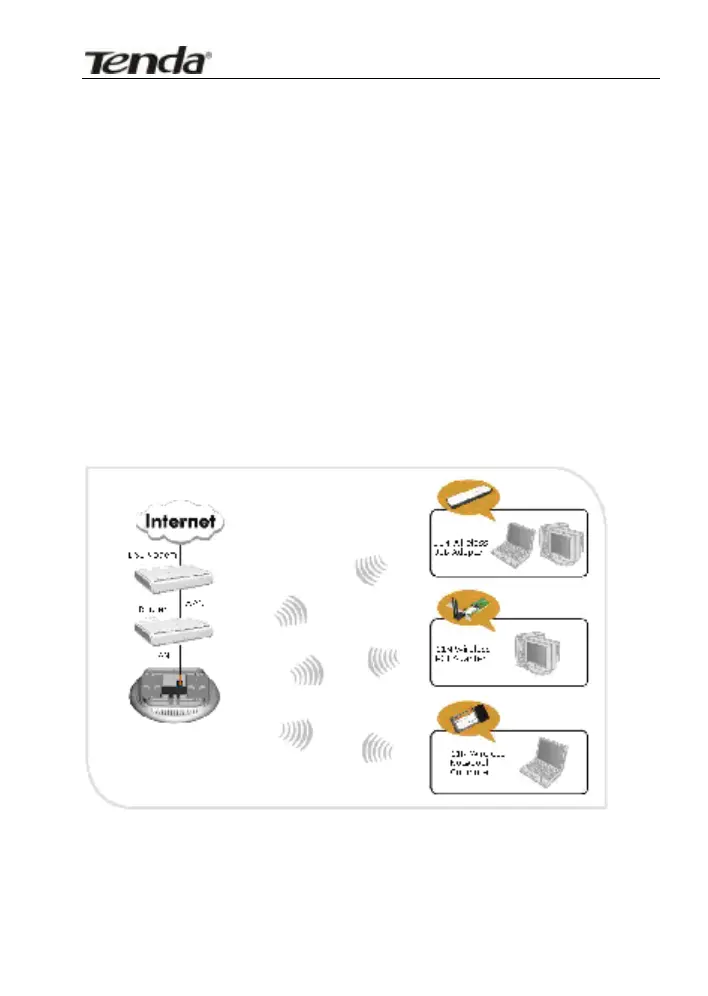

2.1 Physical Installation
Tip--------------------------------------------------------------------------------------------------------------------------------------
1. The PoE switch should be IEEE 802.3at compliant.
2. With a PoE device, it is advisable to connect to the PoE device for power supply; Without a PoE device,
please use the included power adapter for power supply.
-----------------------------------------------------------------------------------------------------------------------------------------------
Connect to a PoE Device
Step 1: Insert the Ethernet cable into the bracket (Recommended: Cat5, Cat5e or higher);
Step 2: Install the bracket onto the ceiling (Drill 4 holes on the ceiling, maneuver the bracket until it fits in
the holes on the ceiling and then fix the bracket onto the ceiling with the included screws.);
Step 3: Connect the Ethernet cable to the LAN port of the device;
Step 4: Fix the device onto the bracket;
Step 5: Connect the other end of the Ethernet cable to a PoE port on an IEEE 802.3at-compliant switch;
