Tenda W308R User Manual

11N Wireless Broadband Router User Guide
41

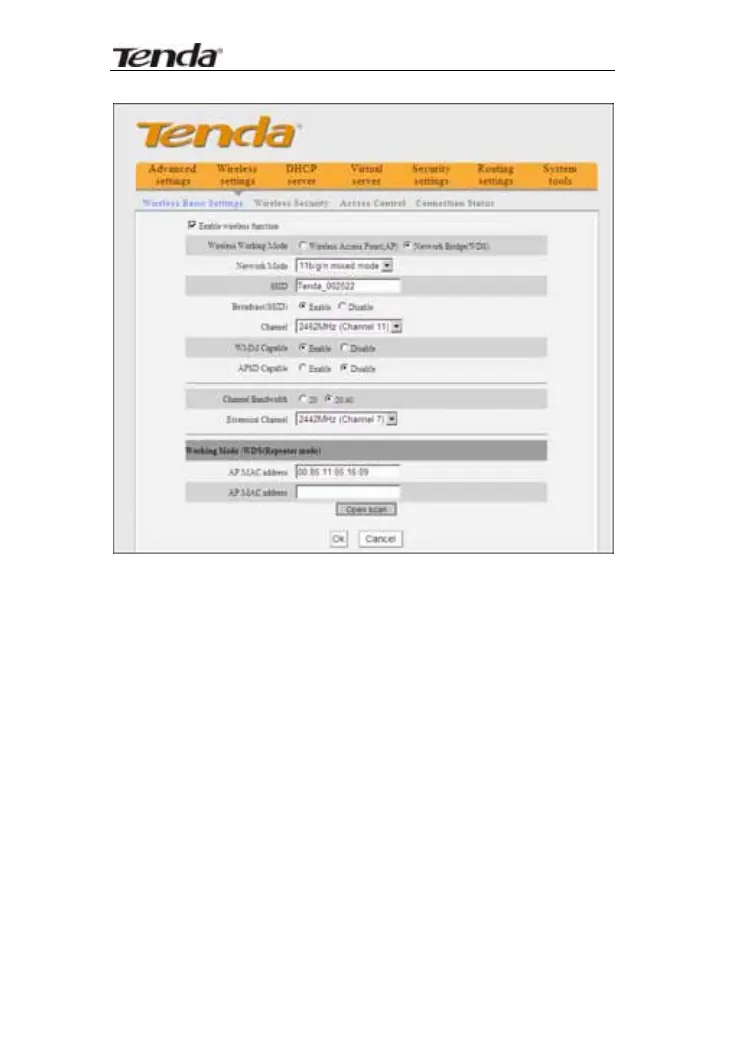

2. You can also search for the wireless router’s signal by
scanning.
a) Click “Open scan” and click the scanned signal and
click the ”Ok” button on the dialog box and the
corresponding wireless MAC address will be added to
the AP MAC address field automatically.

Tenda W308R Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band	2.4 GHz
Data Rate	Up to 300 Mbps
Antenna	2 x 5dBi external antennas
LAN Ports	4x 10/100 Mbps
WAN Ports	1x 10/100 Mbps
Security	WPA, WPA2
WAN Connection Type	Dynamic IP, Static IP, PPPoE
