Tenda W308R User Manual

11N Wireless Broadband Router User Guide
54
and its port 21 will be added to the corresponding field
automatically.
2. Enter 192.168.0.10 in the LAN IP column, and then
select “Both” as the protocol and select “Enable”.

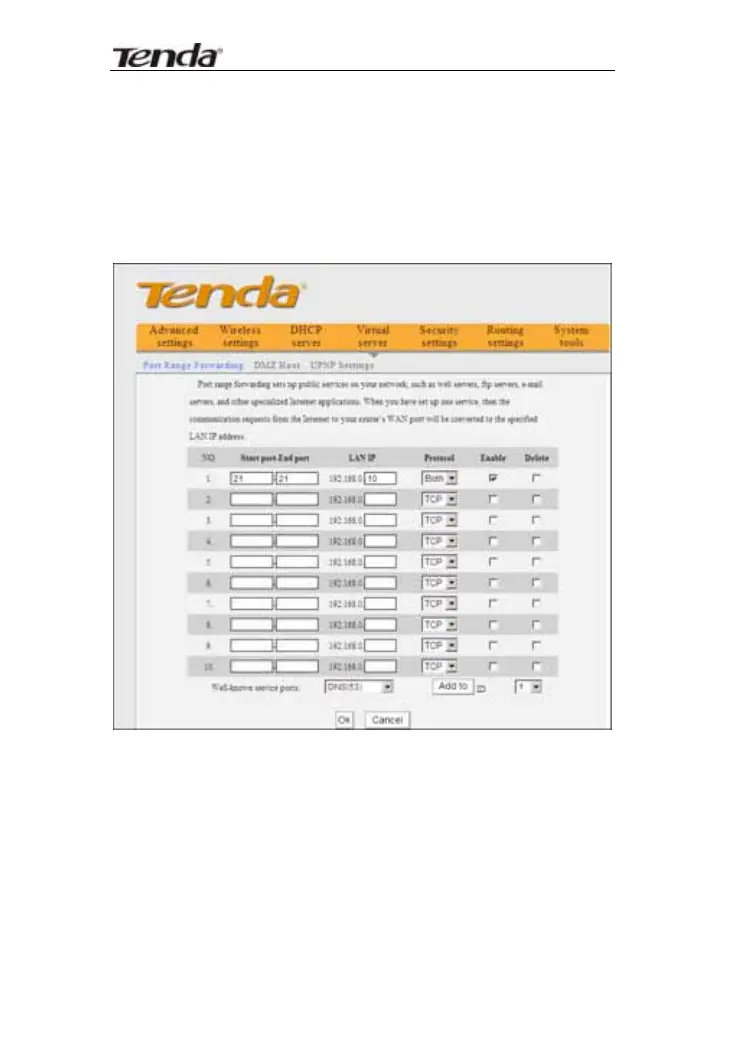

3. As the picture shown below.
4. Click the “Ok” button to save the settings.
And now, when your friends want to visit the FTP server,
they only need to enter ftp://xxx.xxx.xxx.xxx:21 in the
address field. Here, xxx.xxx.xxx.xxx means the router’s
WAN IP address. For example, when your router’s WAN
IP address is 172.16.102.89; your friends need to enter

Tenda W308R Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band	2.4 GHz
Data Rate	Up to 300 Mbps
Antenna	2 x 5dBi external antennas
LAN Ports	4x 10/100 Mbps
WAN Ports	1x 10/100 Mbps
Security	WPA, WPA2
WAN Connection Type	Dynamic IP, Static IP, PPPoE
