Tenda W308R User Manual

11N Wireless Broadband Router User Guide
59

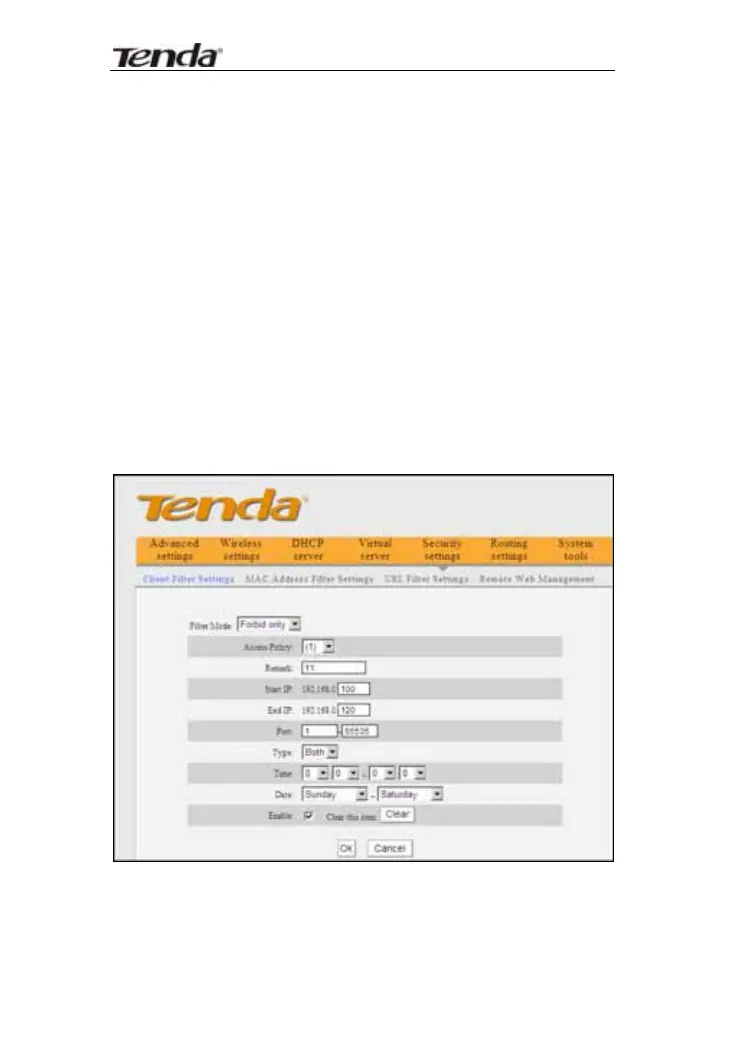

¾ Port: Enter the controlled TCP/UDP protocol port.
You can specify a port or port range.
¾ Type: Select one protocol (TCP/UDP/Both) from
the drop-down list.
¾ Time: Select the time range of client filter.
¾ Date: Select the day(s) to run the access policy.
¾ Enable: To enable/disable the access policy
(forbid/permit the packets matched with the
access policy to pass through the router.
Example1 Forbid LAN computers at the IP addresses of
192.168.0.100--192.168.0.120 to access the Internet.
Example 2 Permit LAN computer with the IP address
of 192.168.0.145 to access websites during 8:00 to

Tenda W308R Specifications

General

Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency Band	2.4 GHz
Data Rate	Up to 300 Mbps
Antenna	2 x 5dBi external antennas
LAN Ports	4x 10/100 Mbps
WAN Ports	1x 10/100 Mbps
Security	WPA, WPA2
WAN Connection Type	Dynamic IP, Static IP, PPPoE
