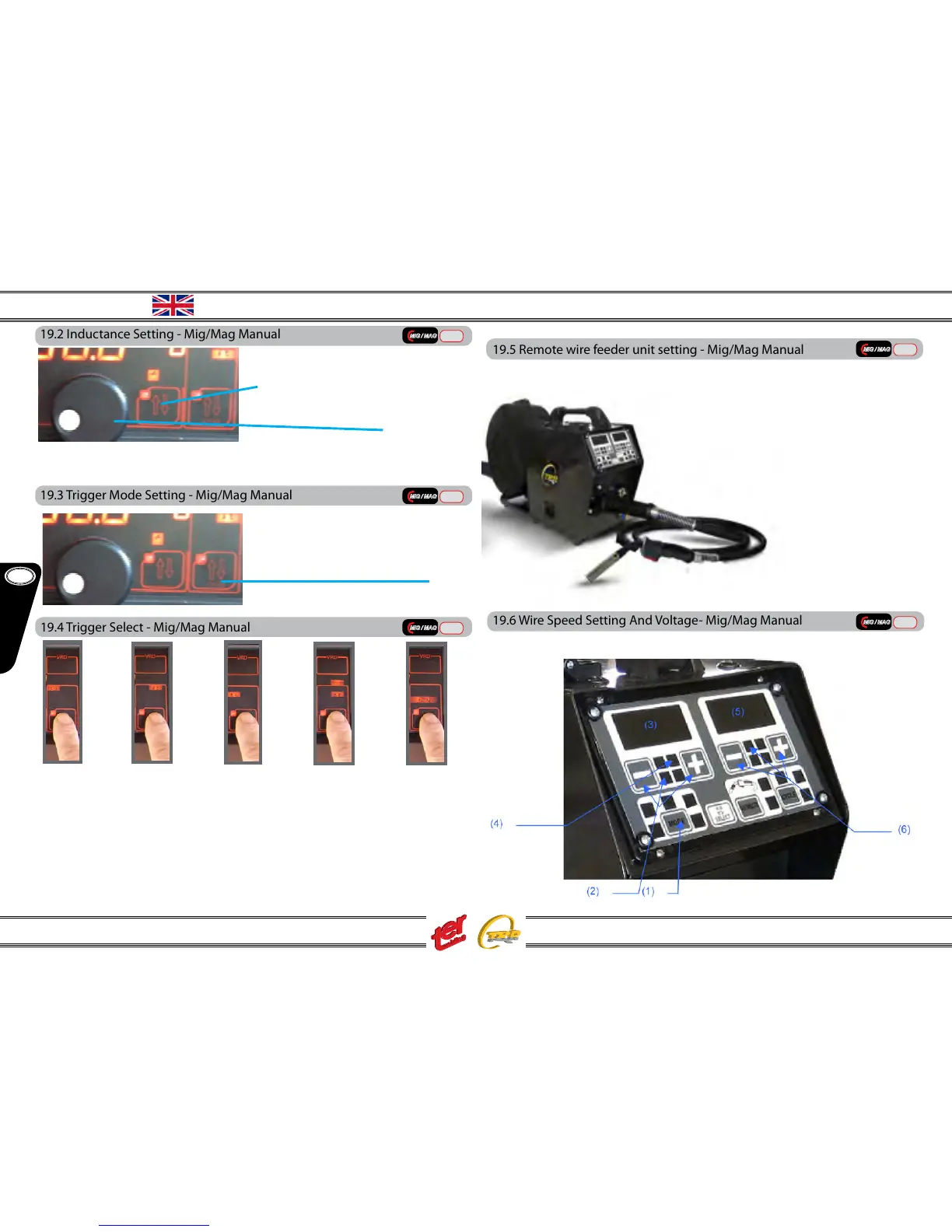

19.2 Inductance Setting - Mig/Mag Manual
In the same way you can set the POST GAS TIMER, SLOPE DOWN & CRATER
FILLER.
19.3 Trigger Mode Setting - Mig/Mag Manual
A - press until inductance led light on
B – adjust inductance
Press to select
19.5 Remote wire feeder unit setting - Mig/Mag Manual
The remote wire feeder
unit LPM can be con-
nected to the generator
by an interconnecting
cable which carries
power cable, control
signals, gas hose and
eventual hoses for the
torch cooling.
19.6 Wire Speed Setting And Voltage- Mig/Mag Manual
19.4 Trigger Select - Mig/Mag Manual
(A) TIMER
it activates
the spot
function.
The spot arc
remains on
during the
set time
(B) 2T trigger
:
arc strikes when
torch trigger is
pressed, and
stops when
released
(C) 2T slope:
arc strikes when
torch trigger is
pressed, and
stops when
released with a
slope down
(D) 4T trigger:
arc strikes
pressing and
releasing torch
trigger. It stops
pressing and
releasing once
again
(E) 4T slope:
it’s like the 4T
trigger, adding a
current slope on
start and a slope
down current on
stop
Manual
MIG / MAG
Manual
MIG / MAG
Manual
MIG / MAG
Manual
MIG / MAG
Manual
MIG / MAG
