Ter Welding Multi 250K - Multi 500 F; Spare Parts Multi 500 F

GB
English
Instruction Manual
Multi 250 - 400K - 500F - 500K - 500 MAR e Accessories
4
3
1
2
13
6 7 8
5
9
10
14
11
12
5
MULTI 500F
MULTI 500F MULTI 500FW

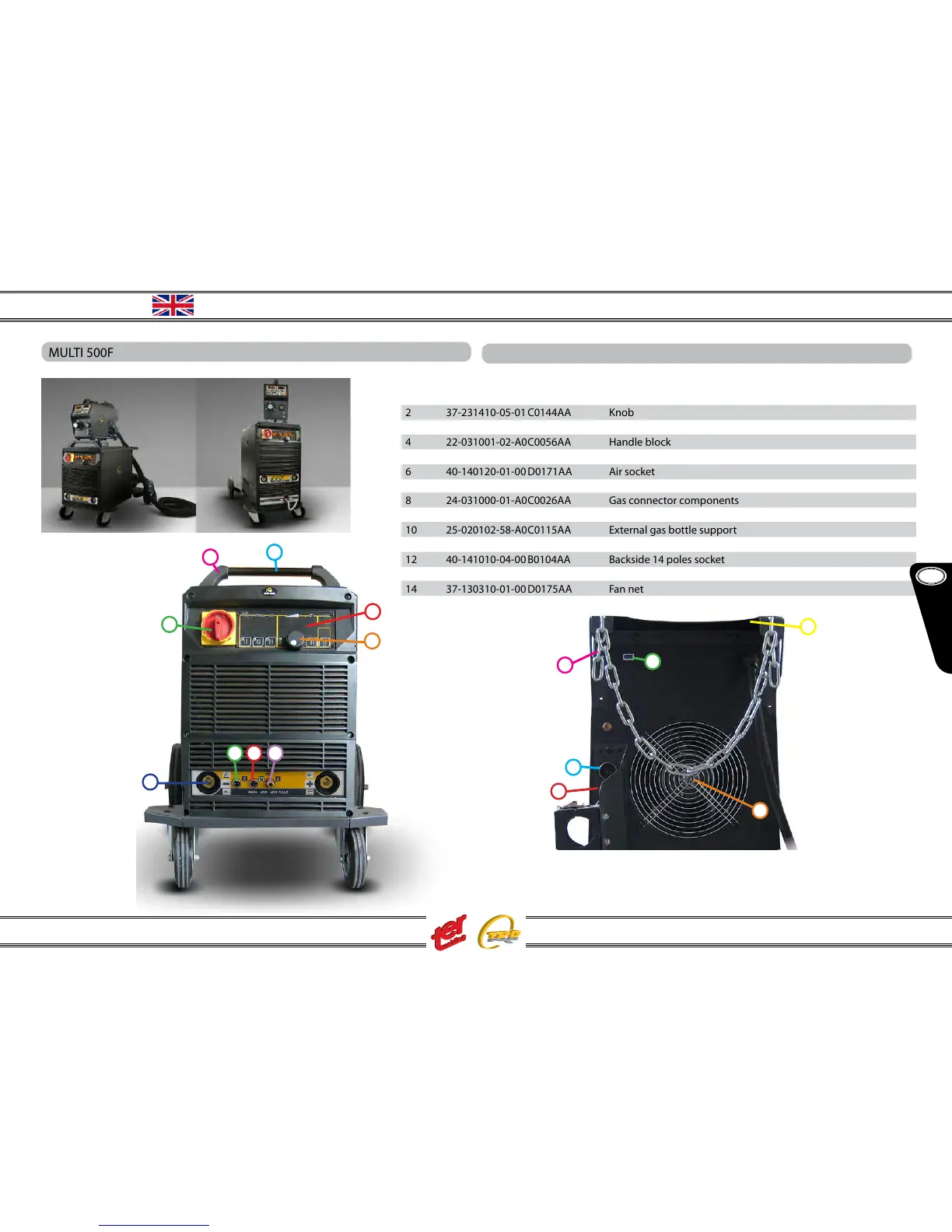

N° CODE TER CODE DESCRIPTION Rif. WELDING DIAGRAM
1 07-990003-06-00 D0170AA Universal switch 62A S1
2 37-231410-05-01 C0144AA Knob
3 37-260100-01-00 C0054AA Handle block
4 22-031001-02-A0 C0056AA Handle block
5 40-160710-01-00 B0078AA Fast socket
6 40-140120-01-00 D0171AA Air socket
7 40-140120-02-00 D0172AA Air socket
8 24-031000-01-A0 C0026AA Gas connector components
9 37-220100-02-00 D0190AA Chain
10 25-020102-58-A0 C0115AA External gas bottle support
11 39-106309-01-A0 Program input serial port
12 40-141010-04-00 B0104AA Backside 14 poles socket
13 T177PCB T177PCB Digtal display control PCB1
14 37-130310-01-00 D0175AA Fan net
Spare Parts Multi 500F
