Ter Welding Multi 250K - Page 35

GB
English
Instruction Manual
Multi 250 - 400K - 500F - 500K - 500 MAR e Accessories
16
32
20
21
22
25
26
17
30
24
23
33
28
29
27
12
N° CODE TER CODE DESCRIPTION Rif. WEL.DIAGRAM
12 25-020102-58-A0 C0115AA External gas bottle support
16 T178PCB T178PCB Contor PCB PCB2
17 T186PCB T186PCB Auxiliary board PCB3
18 03-010300-11-00 M0021AA auxillary transformer 50Hz T1
19 03-010500-40-00 M0042AA auxillary transformer 50Hz T2
20 03-010303-27-00 M0033AA Toroidal HF transformer T3
21 03-020100-15-00 M0034AA output choke L1
22 T192PCB T192PCB Probe lter PCB5
23 04-010300-22-00 E0021AA rectier D1-D2-D3

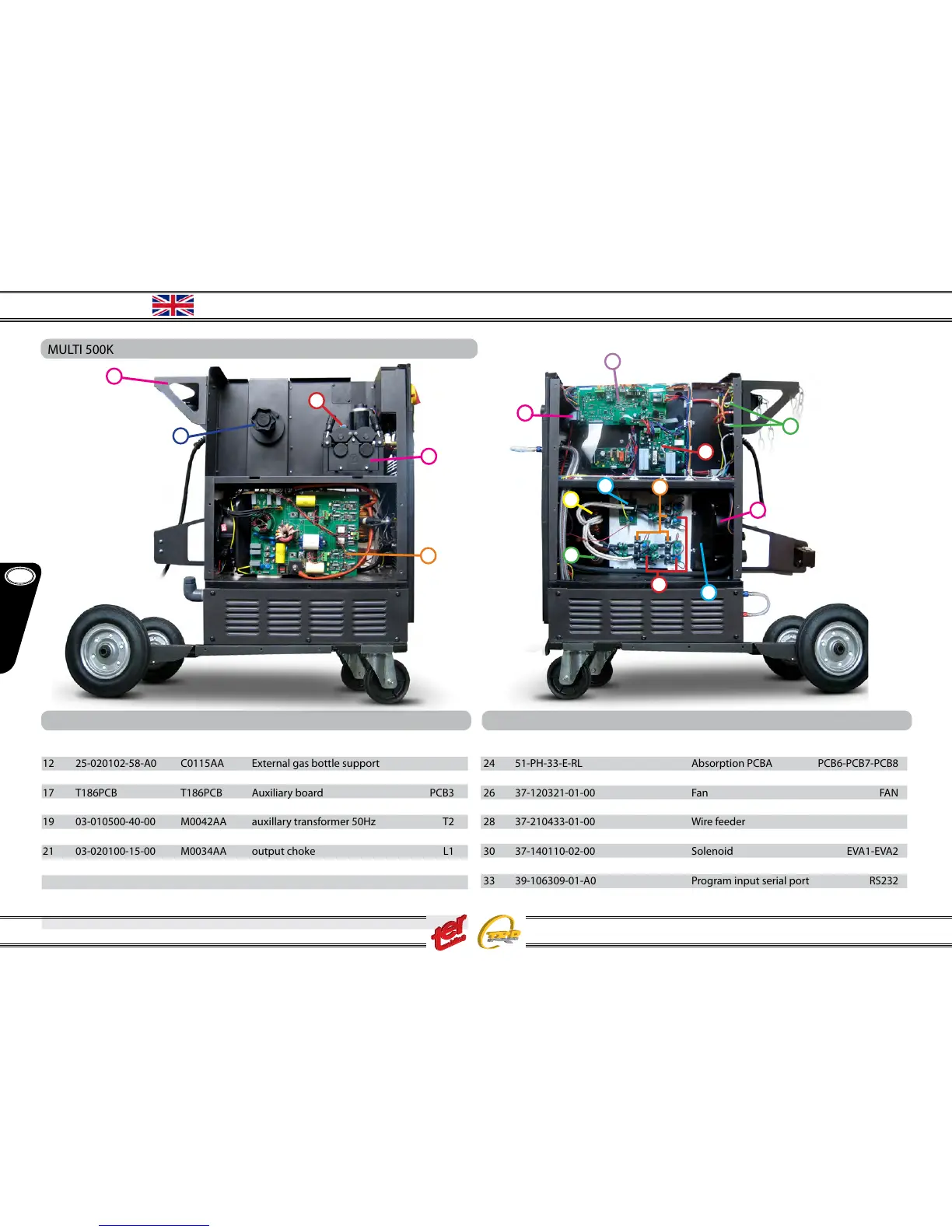

Spare Parts Multi 500K
MULTI 500K
N° CODE TER CODE DESCRIPTION Rif. WEL.DIAGRAM
24 51-PH-33-E-RL E0022AA Absorption PCBA PCB6-PCB7-PCB8
25 23-020602-01-A0 D0162AA Fan cover
26 37-120321-01-00 D0161AA Fan FAN
27 37-221100-02-00 D0164AA Spool Support
28 37-210433-01-00 A0006AA Wire feeder
29 T188PCB T188PCB Driver Board PCB4
30 37-140110-02-00 A0003AA Solenoid EVA1-EVA2
32 T173PCB T173PCB Wire control PCB PCB9
33 39-106309-01-A0 Program input serial port RS232
- 37-190100-05-00 B0214AA Fuse
Spare Parts Multi 500K
32
