N° CODE TER CODE DESCRIPTION Rif. WEL.DIAGRAM
8 37-221100-02-00 D0164AA Spool Support
9 37-210433-01-00 A0006AA Wire feeder
10 39-106309-01-A0 Program input serial port RS232
11 37-300100-01-00 Plastic internal module
12 T173PCB T173PCB Wire control PCB PCB9
13 T178PCB T178PCB Contor PCB PCB2
14 T186PCB T186PCB Auxiliary board PCB3
15 T196PCB T196PCB EMC board PCB10
- T192PCB T192PCB Probe Filter PCB5
Spare Parts Multi 400K
N° CODE TER CODE DESCRIPTION Rif. WEL.DIAGRAM
16 37-140110-02-00 A0003AA Solenoid
17 03-020200-20-00 Output choke
18 03-010303-11-00 M0036AA Toroidal HF transformer T3
19 T194/T195PCB T194/T195PCB 400K Driver Board PCB4
20 03-010300-11-00 M0021AA auxillary transformer 50Hz T1
21 03-010500-40-00 M0042AA auxillary transformer 50Hz T2
22 40-141010-04-00 B0104AA Backside 14 poles socket
23 37-220100-02-00 D0190AA Chain
24 25-020102-58-A0 C0115AA External gas bottle support
Spare Parts Multi 400K

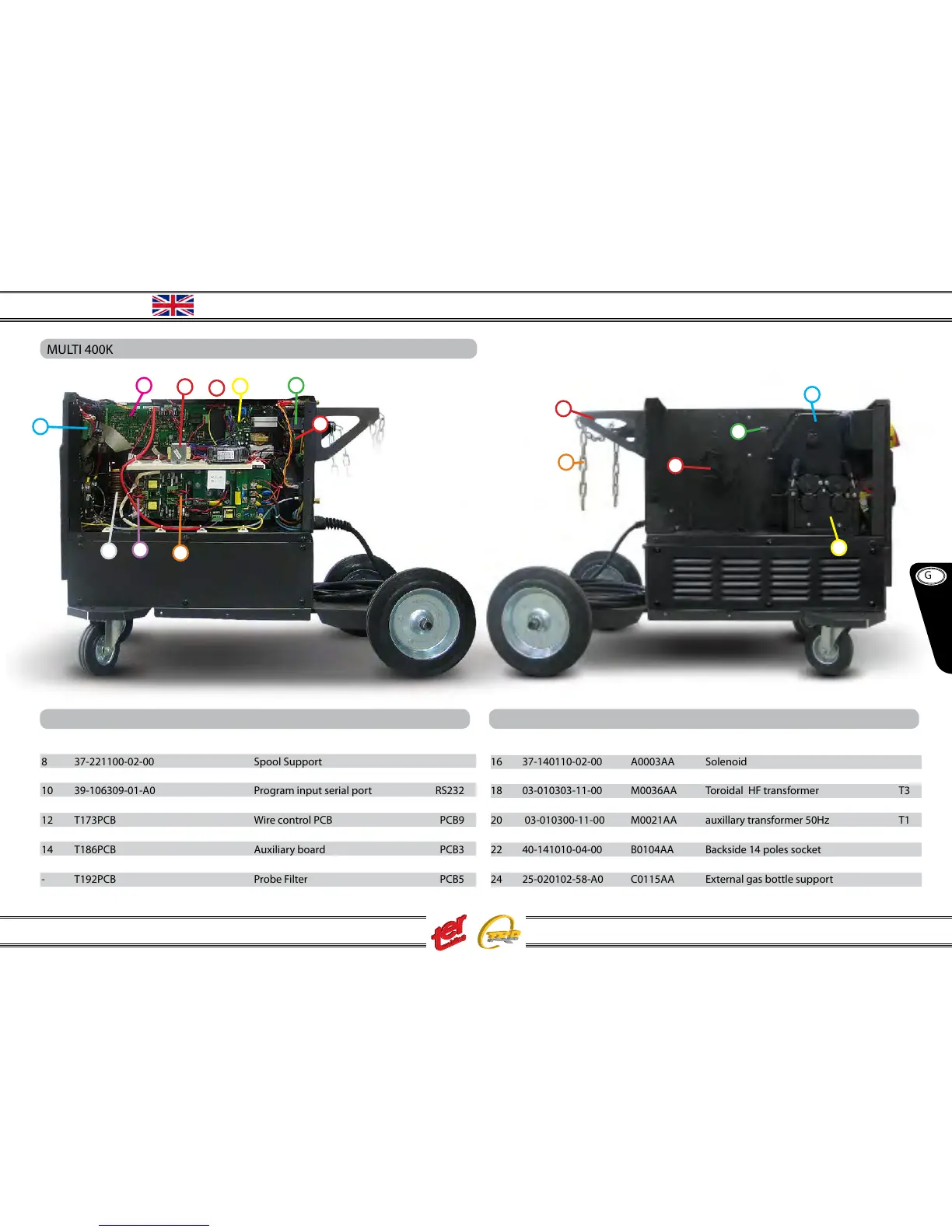

MULTI 400K
