Instruction Manual
Multi 250 - 400K - 500F - 500K - 500 MAR e Accessories

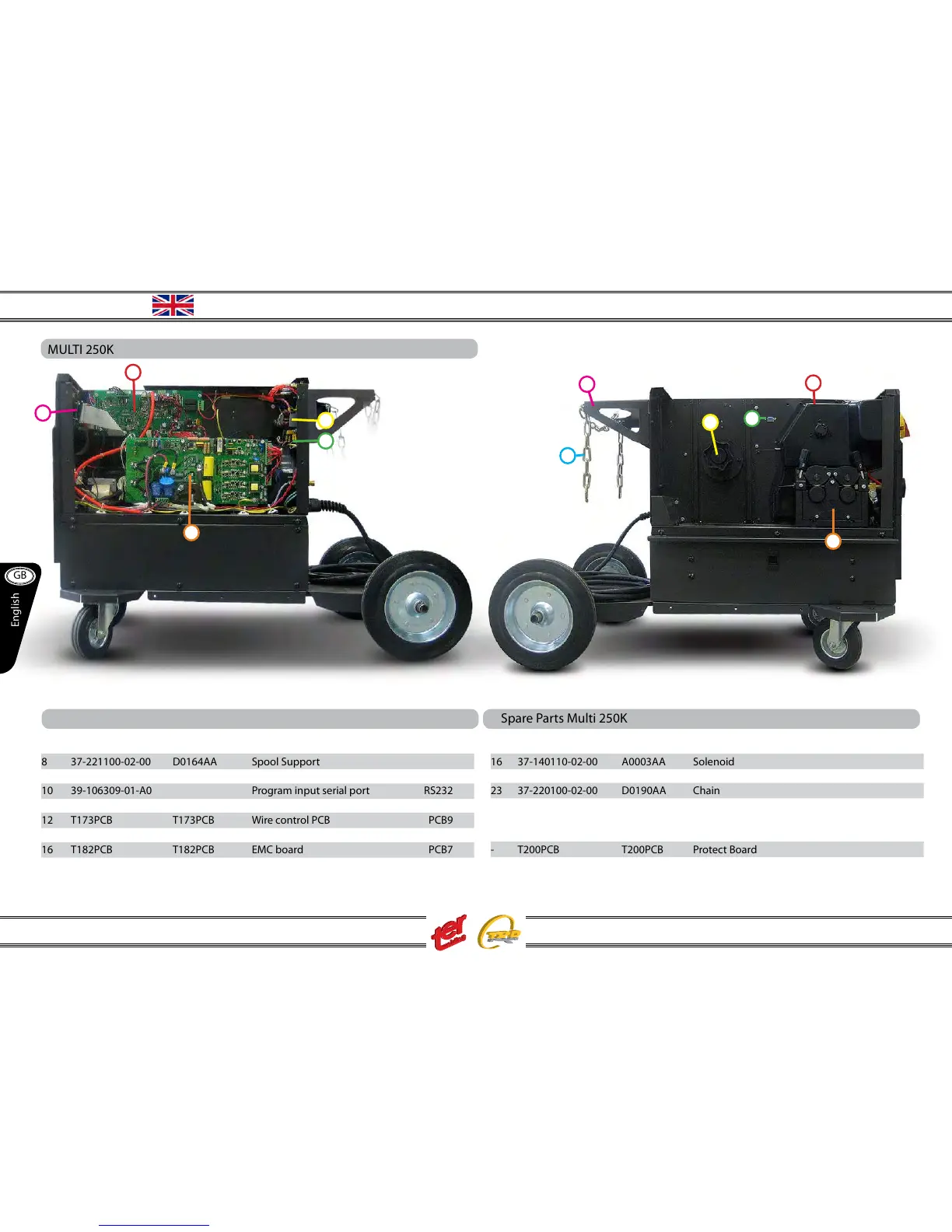

MULTI 250K
15
16
12
13
19
8
10
11
9
23
24
N° CODE TER CODE DESCRIPTION Rif. WEL.DIAGRAM
8 37-221100-02-00 D0164AA Spool Support
9 37-210433-01-00 A0006AA Wire feeder
10 39-106309-01-A0 Program input serial port RS232
11 37-300100-01-00 Plastic internal module
12 T173PCB T173PCB Wire control PCB PCB9
13 T178PCB T178PCB Contor PCB PCB2
16 T182PCB T182PCB EMC board PCB7
Spare Parts Multi 250K
N° CODE TER CODE DESCRIPTION Rif. WEL.DIAGRAM
16 37-140110-02-00 A0003AA Solenoid
19 T198PCB T198PCB 250K Driver Board PCB4
23 37-220100-02-00 D0190AA Chain
24 25-020102-58-A0 C0115AA External gas bottle support
- 03-010303-21-00 Toroidal transformer
- T192PCB T192PCB Probe Filter PCB5
- T200PCB T200PCB Protect Board
Spare Parts Multi 250K
