Teradek Bolt 4K MAX - Array Panel Antenna Usage

Teradek, LLC 2020. All rights reserved. v1.3-0620
9

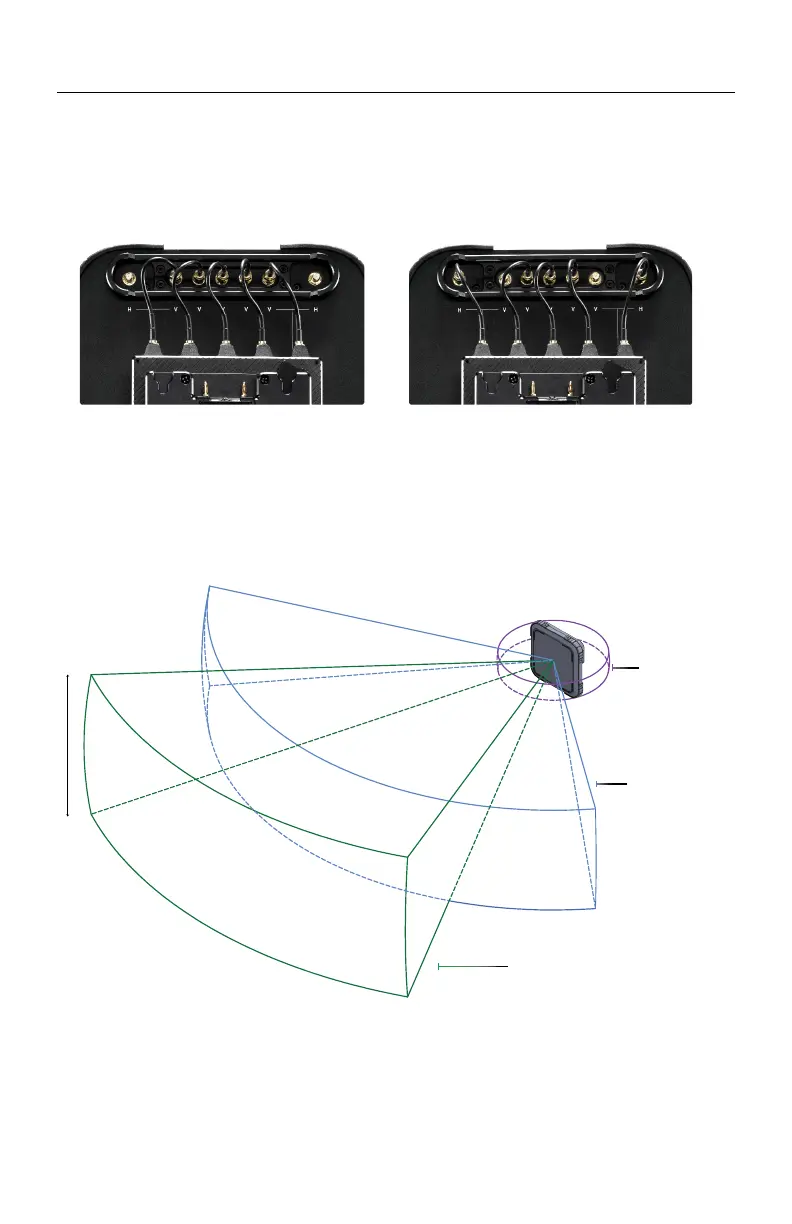

If using the Array Panel Antenna with your Bolt 4K 1500 or MAX receiver, you must
connect the five RP-SMA connectors from the receiver to the back of the antenna (see
below for connector placement), and position the antenna so that the front (with the
Teradek logo) has a clear line of sight to the transmitter.
V antenna only
H+V configuration
The Array 4K panel has a built-in directional antenna with a receive pattern that
varies based on its distance from the transmitter. The horizontal receive angle
measures 55° at 5,000 ft (1.5 km), 104° at 4,000 ft (1.25 km), and is eectively
omni-directional at up to 500 ft (150 m). The vertical receive angle measures 20°
at any distance.
ARRAY PANEL ANTENNA
500 ft (150 m) ~ 360°
5,000 ft (1.5 km) ~ 55°
4,000 ft (1.25 km) ~ 104°
20°
For more information about the dierent antenna configurations for Bolt 4K, please
visit:
https://www.teradek.com/blogs/articles/what-antennas-should-i-use-with-bolt-4k
