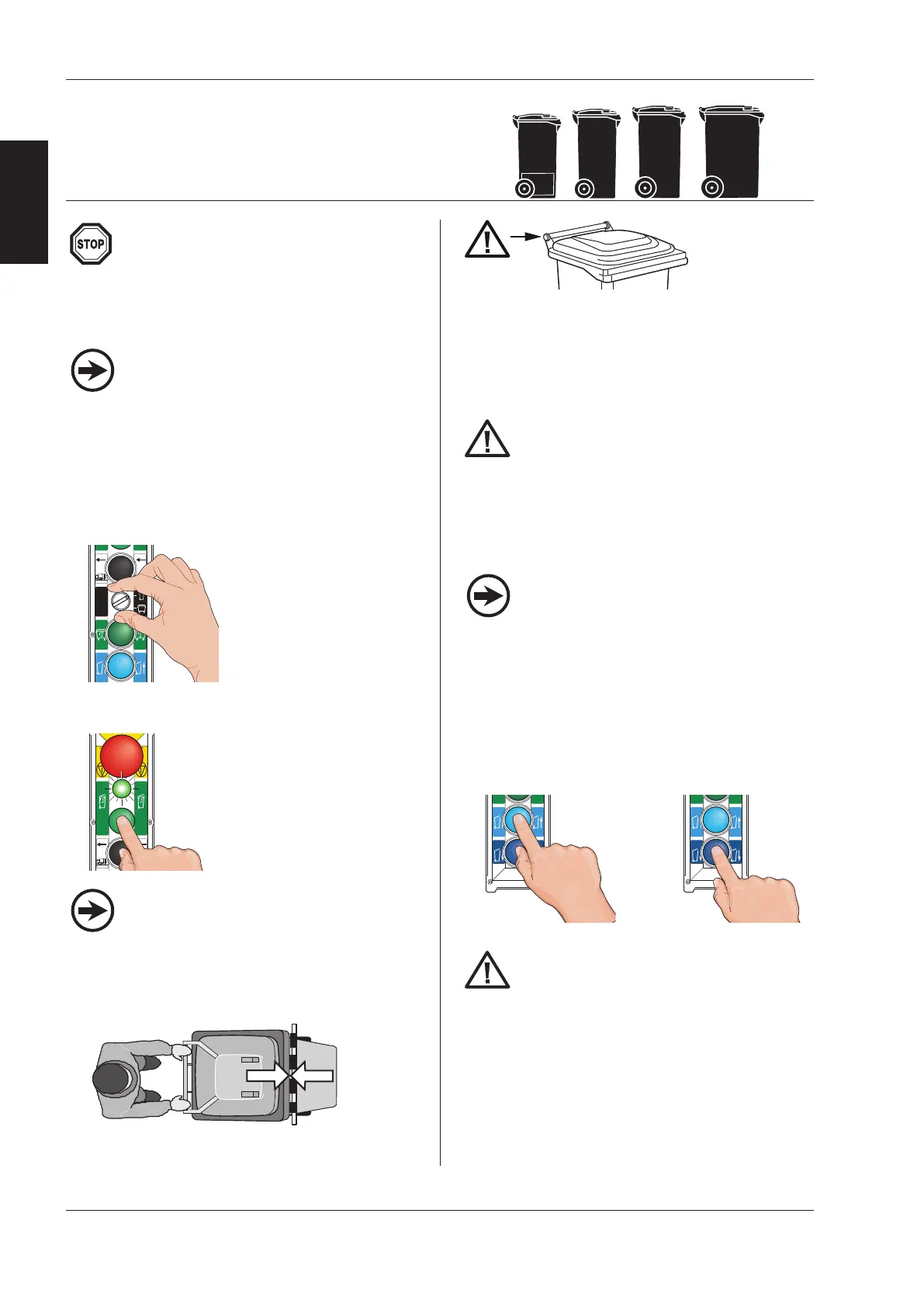

Terberg OMNIDEKA e - Automatic Loading with the Pick-Up Comb 2-Wheel Bins

- Let the bin go as soon as it is lifted.
The container is lifted to the tipping position, is
emptied and returns to the original position.
- Pull the bin out of the bin lift as soon as the
wheels touch the ground.
 You can interrupt the automatic loading cycle by
pressing the UP or DOWN buttons.
The green check light will flash to indicate that the
automatic loading cycle has been interrupted.
When the lifting chair is in the start position again,
the green check light will continue to light up and
automatic bin emptying can be resumed.
Shake function (Green waste)
If refuse remains stuck in the bin, you can use the
shake function. See page 20.
1) Switch on the refuse collection vehicle's
compactor body.
2) Fold both safety arms (04) down (horizontal).
3) Select 2-wheel bins:
Set the rotary switch (E) to
2-wheel containers.
[Or press the black button (K), this
can be done on both button
control stations.
The left-hand LED next to the
2-wheel bin should light up.] *
4) Switch on the automatic function:
Press the light green
automatic button (C).
The green check light should
light up.
5) Roll the bin against and over the pick-up comb
(06).
16 EN
EN
3. Bin lift operation
37878
05-2017
3.5 Automatic loading with the pick-up comb
ã Terberg Machines B.V., IJsselstein, The Netherlands
All rights reserved. No part of this book may be reproduced, stored in database or retrieval system, or published, in any form or in any way,
electronically, mechanically, by print, photoprint, microfilm or any other means without prior written permission from the publisher.
The automatic function must be switched on
for each side.
After emptying a 240 litre bin the pick-up
comb will be in too high a position with respect
to an 80 / 120 litre bin. By moving the 80 /
120 litre bin briefly before the start sensor the
lifting chair will automatically descend to the
right height.
In certain circumstances it may happen that a
bin that has just been emptied is automatical-
ly picked up again. Press the DOWN button if
this is not wanted to cancel the cycle!
When the bin is not located correctly on the
pick-up comb and as a result the bin security
switch is not pressed, the upward movement is
interrupted and the bin descends to the bottom
position. When the lifting movement is
interrupted, in spite of the fact that the bin is
located correctly on the pick-up comb, you must
check the bin for damage.
Voorkom dat kleding achter de handgreep blijft haken.
Rol de container tegen de belading met gestrekte armen!
2-wheel bins;
capacity 80 to 360 litres
according to EN 840-1
Chamberlain Chamberlain
The optional DIN pick-up arms (18) must be
folded in.
[ ] * This text applies to the optional button control stations. See 'Important components' at the start of this chapter.
This bin lift has not been designed for throwing
in loose refuse. Should you decide to load loose
refuse, bags or boxes, then ALWAYS SWITCH
the AUTOMATIC function OFF. Always also do
this when removing refuse from the lifting
chairs.
Prevent clothes from getting caught behind the handle.
Roll the bin up against the bin lift with outstretched arms!
Voorkom dat kleding achter de handgreep blijft haken.
Rol de container tegen de belading met gestrekte armen!
