The OmniDEKA is a versatile automatic bin lift system. This bin lift system is suitable for emptying the normal
2
-wheel bins as well as for emptying most 4-wheel containers (see table 1.2b). With the (optional) pick-up arms,
4-wheel containers that are not fitted with a comb pick-up edge can be emptied.
A safe advantage of this bin lift is that the bin moves away from the operator during the lifting motion.
Operation is done using the two button control stations on each side of the bin lift.
If the bin lift is fitted with an automatic function, then this function can be activated on the button control
station. The bins then only need to be wheeled up against the pick-up comb. The bins/containers are picked up
automatically, clamped, tipped over and put down again.
The bin lift can optionally be provided with a semi-automatic function for 4-wheel containers. This function has
a slightly different mode of operation, you will find more about this in the chapter 'Operation'.
The automatic and semi-automatic functions only work with the safety arms in the horizontal position.
The bin lift is fitted with a passive catcherbar, no adjustment per bin/container type is needed.
EN 5
EN
37878
05-2017
1. Introduction
1.2
Technical specifications
ã Terberg Machines B.V., IJsselstein, The Netherlands
All rights reserved. No part of this book may be reproduced, stored in database or retrieval system, or published, in any form or in any way,
electronically, mechanically, by print, photoprint, microfilm or any other means without prior written permission from the publisher.
1.1
Description of the bin lift system
Guidelines and standards 2006/42/EG, EN 1501-1 & EN 1501-5:2011
Weight 650 kg standard (685 kg with DIN pick-up arms)
Noise level without bin/container ≤ 61 dB(A)
Noise level (according EN1501-4 6.4.3) ≤ 70 dB(A)
Vibrations ≤ 2.5 m/s
2
Operating voltage 24 Volt DC
Maximum current consumed by controls 7.5 Ampère / 24V DC
Required oil flow 40 litres/minute
Required working pressure Min. 200 bar
Return pressure Max. 2.0 bar at 70 litres/minute
Quick release couplings DIN 25, ISO 72141-1

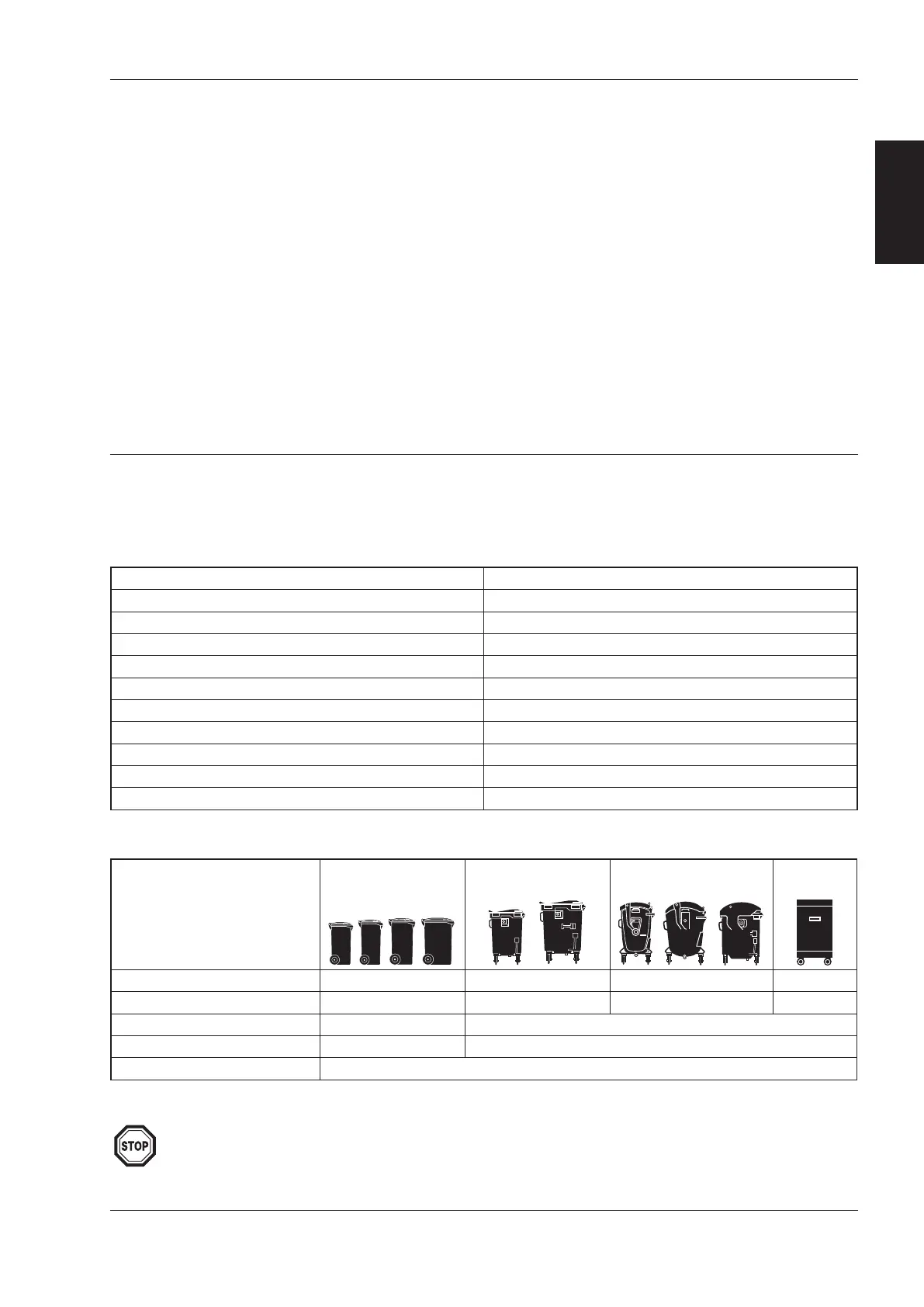

Table 1.2a Technical data OmniDEKA
Table 1.2b Bins/containers to be emptied
The emptying of bin/container types other than those
indicated above, is not permitted with this bin lift sys-
tem. If in doubt, please contact your distributor.
2-wheel bins
4-wheel containers
with flat lid
4-wheel containers
with roll top
Paladin
containers
Capacity 80 - 360 litres 500 - 1280 litres 770 and 1100 litres 900 litres
According to standard EN 840-1 EN 840-2 EN 840-3 --
Lifting capacity (maximum) 1700N (170 kg) 5000N (500 kg)
Cycle time* (excl. dwell time) 5-7 seconds 10-12 seconds
Time in tipping position Adjustable
* Depending on mounting height, bin/container weight and oil temperature.
The bin lift is an 'interchangeable lifting device' in compliance with EN 1501-5:2011.
For information: This bin lift system has been designed for mounting onto refuse collection vehicles that are fitted
with a standard interface (mechanical, hydraulic, electrical, for technical dimensions and functionality).
