Terberg OMNIDEKA e - Level 2: Monitor

24 EN
EN
3. Bin lift operation
37878
05-2017
3.11.2 Diagnostic System - level 2
Position of chairs, Inputs and Outputs, Voltage electrical system, Pressure hydraulic sytem
ã Terberg Machines B.V., IJsselstein, The Netherlands
All rights reserved. No part of this book may be reproduced, stored in database or retrieval system, or published, in any form or in any way,
electronically, mechanically, by print, photoprint, microfilm or any other means without prior written permission from the publisher.
Status
DIGITAL input
000000000000000 DIG IN 0 _ _ _ [ 0-15] POSITION L/H 0000 DIG IN 0 _ _ _ [16-31] 000000000000000 000000000000000 DIG IN _ 1 _ _ [ 0-15] DIG IN _ 1 _ _ [16-31] 000000000000000 000000000000000 DIG IN _ _ 2 _ [ 0-15]
DIG IN _ _ 2 _ [16-31] 000000000000000 000000000000000 DIG IN _ _ _ 3 [ 0-15]
POSITION R/H 0000
push 1x
input 0.0 - 0.15
input 0.16 - 0.31
input 1.0 - 1.15
input 1.16 - 1.31
input 3.0 - 3.15
input 2.16 - 2.31
input 2.0 - 2.15
Status
ANALOGUE input
AI00[0] = 0 0 0 0 AI00[1] = 0 POSITION L/H 0000 AI00[2] = 0 AI00[3] = 0 AI00[4] = 0 AI00[5] = 0 AI00[6] = 0 AI00[7] = 0 AI01[0] = 0 AI01[1] = 0
AI01[2] = 0 0 0 0 AI01[3] = 0 AI01[4] = 0 AI01[5] = 0
POSITION R/H 0000
push 2x
input 0.0 - 0.1
input 0.2 - 0.3
input 0.4 - 0.5
input 0.6 - 0.7
input 1.4 - 1.5
input 1.2 - 1.3
input 1.0 - 1.1
AI01[6] = 0 AI01[7] = 0
input 1.6 - 1.7
Status
DIGITAL output
000000000000000 DIG. OUT 0 _ _ [ 0-15] POSITION L/H 0000 DIG. OUT 0 _ _ [16-31] 000000000000000 000000000000000 DIG. OUT _ 1 _ [ 0-15] DIG. OUT _ 1 _ [16-31] 000000000000000 000000000000000 DIG. OUT _ _ 2 [ 0-15] POSITION R/H 0000
push 3x
output
0.0 - 0.15
output
0.16 - 0.31
output
1.0 - 1.15
output
1.16 - 1.31
output
2.0 - 2.15
Status
ANALOGUE output
AO00[0] = 0 AO00[1] = 0 POSITION L/H 0000 AO00[2] = 0 AO00[3] = 0 POSITION R/H 0000
push 4x
output
0.0 - 0.1
output
0.2 - 0.3

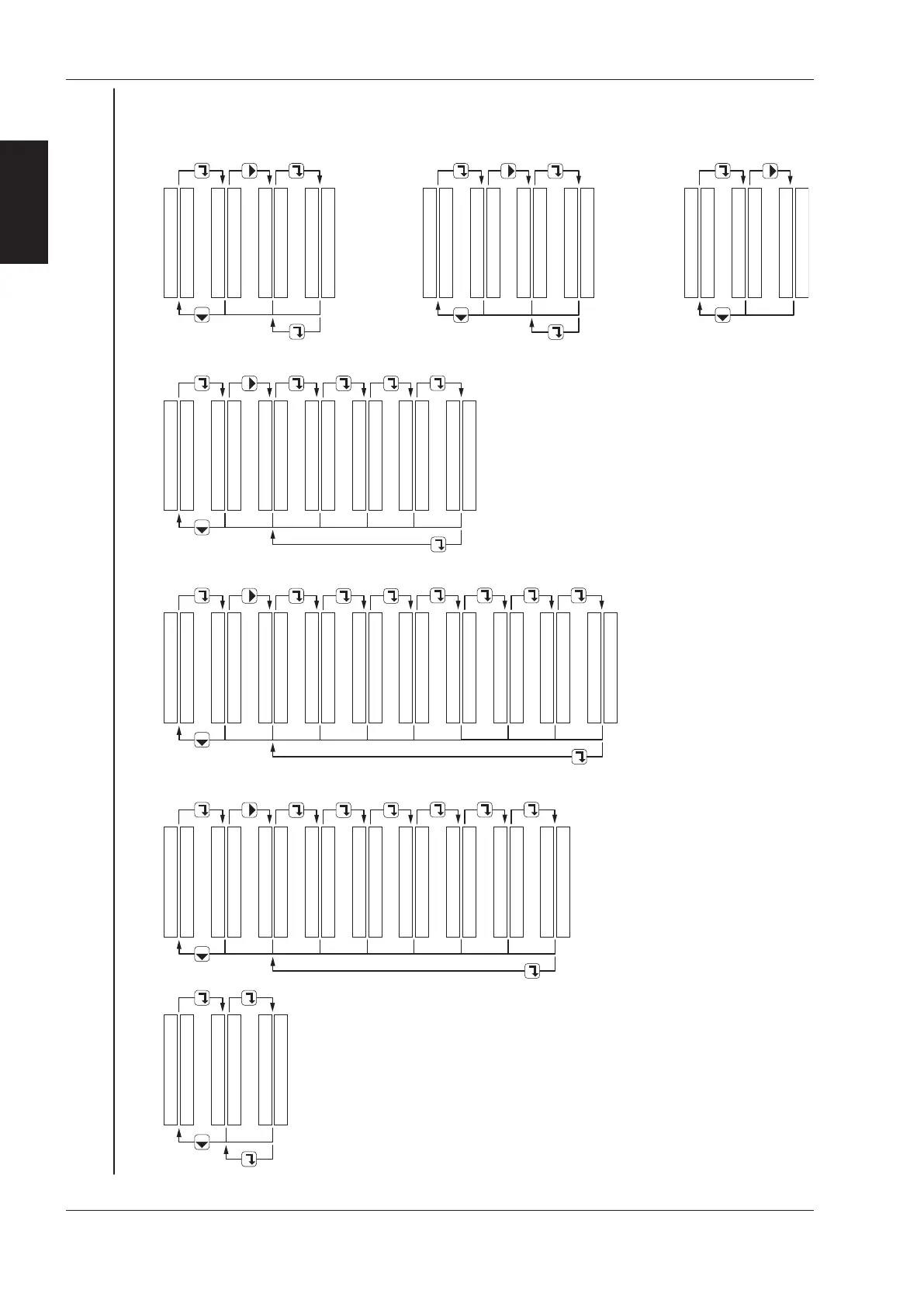

MONITOR MONITOR MONITOR MONITOR
Level 2
Position of
left and right chair
POSITION L/H 0000 POSITION R/H 0000 MONITOR POS DIFFERENCE 000
Dierence between
the chairs
Voltage of the
electric system
SUPPLY VOLTAGE 28.4 V POSITION L/H 0000 EM STOP VOLTAGE 28.0 V POSITION R/H 0000
push 5x
Voltage of the
electric system
Voltage of the
emergency stop
circuit
MONITOR
Pressure hydraulic circuits
left and right
PRESSURE L/H 0.0bar R/H 0.0bar POSITION L/H 0000 POSITION R/H 0000
push 6x
MONITOR
