5. Operating

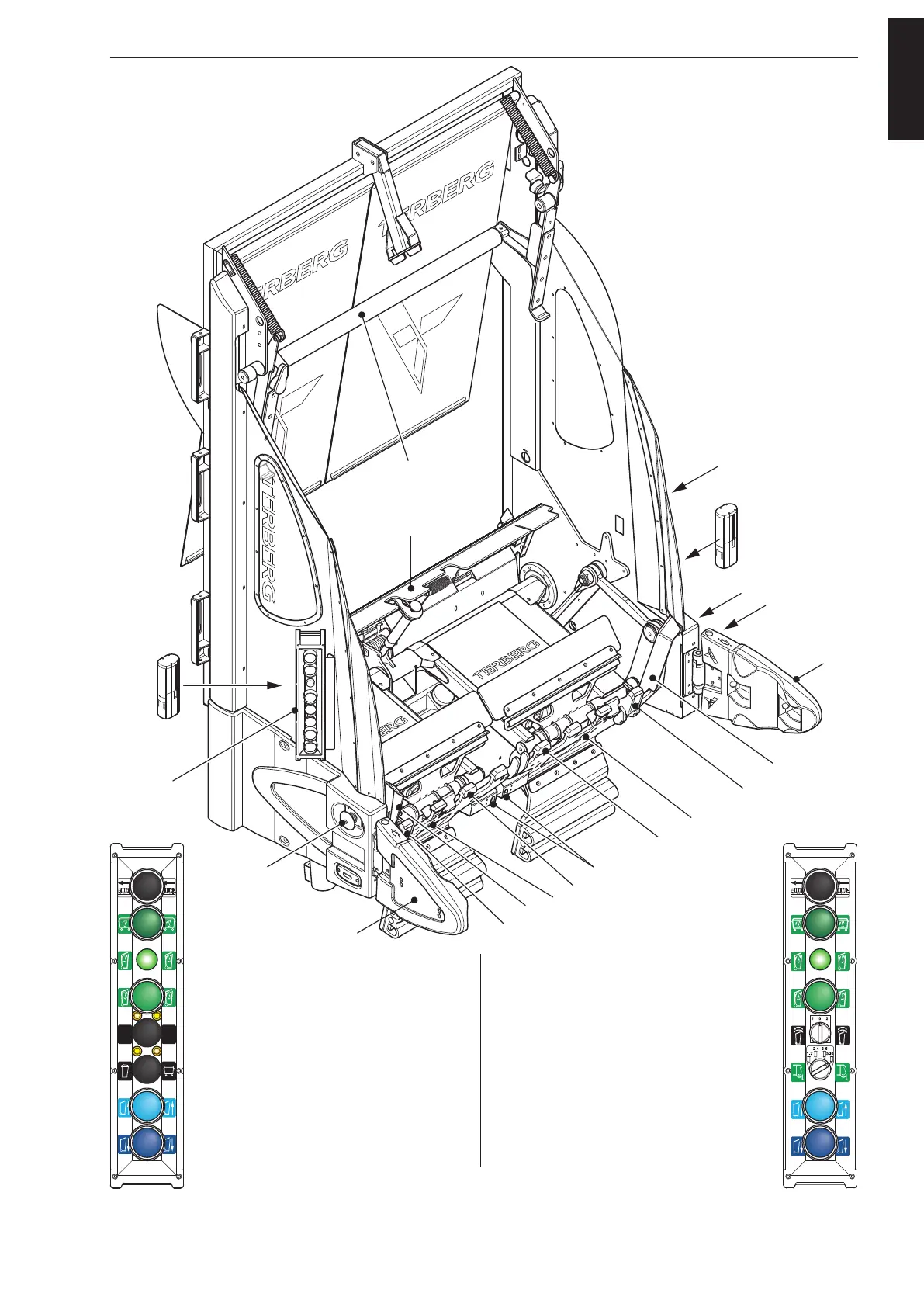

5.1 Important components
3
3
4
4
5
5
6
6
7
8
9
10
12
10
11
8
2
1
13
13
A
B
10060
10067 37722
A B
10060 10067 10353
50%
100%
A
B
29019 377201005929018 10353
A
B
10060 10067 37722
A B
10060 10067 10353
50%
100%
A
B
29019 377201005929018 10353
2*
1*
1. 8 Position button control
station R/H*
2. 8 Position button control
station L/H*
3. Safety arm
4. Startsensor
5. Pick-up comb
6. Bin security switch
7. Hopper plate
8. Emergency stop
9. Catcherbar / Lid opener
10. Bin guide plate
11. Sensor 4-wheel container
recognition
12. Diagnostic System*
13. Light screen (option)
DIN pick-up arms can
also be fitted as an option.
2a Push button travel height
2b Dark green push button semi-automatic
4-wheel (option)
2c Green indicator light automatic
2d Light green push button automatic
2e Push button catcherbar / lid opener
(with indication LED)
2f Push button 2-wheel bins / 4-wheel
containers (with indication LED)
2g Light blue push button UP left and
LIFTING 4-wheel containers**
2h Dark blue push button DOWN left
and LOWERING 4-wheel containers**
1a Push button travel height
1b Dark green push button semi-automatic
4-wheel (option)
1c Green indicator light automatic
1d Light green push button automatic
1e Shake selector switch
1f Selector switch PCDC (option)
1g Light blue push button UP right and
LIFTING 4-wheel containers**
1h Dark blue push button DOWN right
and LOWERING 4-wheel containers**
a
b
c
d
e
f
g
h
a
b
c
d
e
f
g
h
A complete overview of
the different 8-position
control stations is given
in the Spare parts book.
** Once a 4-wheel cycle has started it can not be taken over with the other control station.
* Depending on the country: - The L/H and R/H control stations are interchanged.
- The Diagnostic System is placed on the L/H or R/H side of the bin lift.
