2-position catcherbar (continued)
5.4.2 Loading 4-wheel containers
5.4.2.1 Automatic 4-wheel container recognition
T
he bin lift is equipped with automatic 4-wheel container recognition, if a 4-wheel container is rolled against
the pick-up combs, the bin lift system automatically changes over to 4-wheel containers.
5.4.2.2 4-wheel containers with FLAT lid,
capacity 500-1280 litres EN 840-2

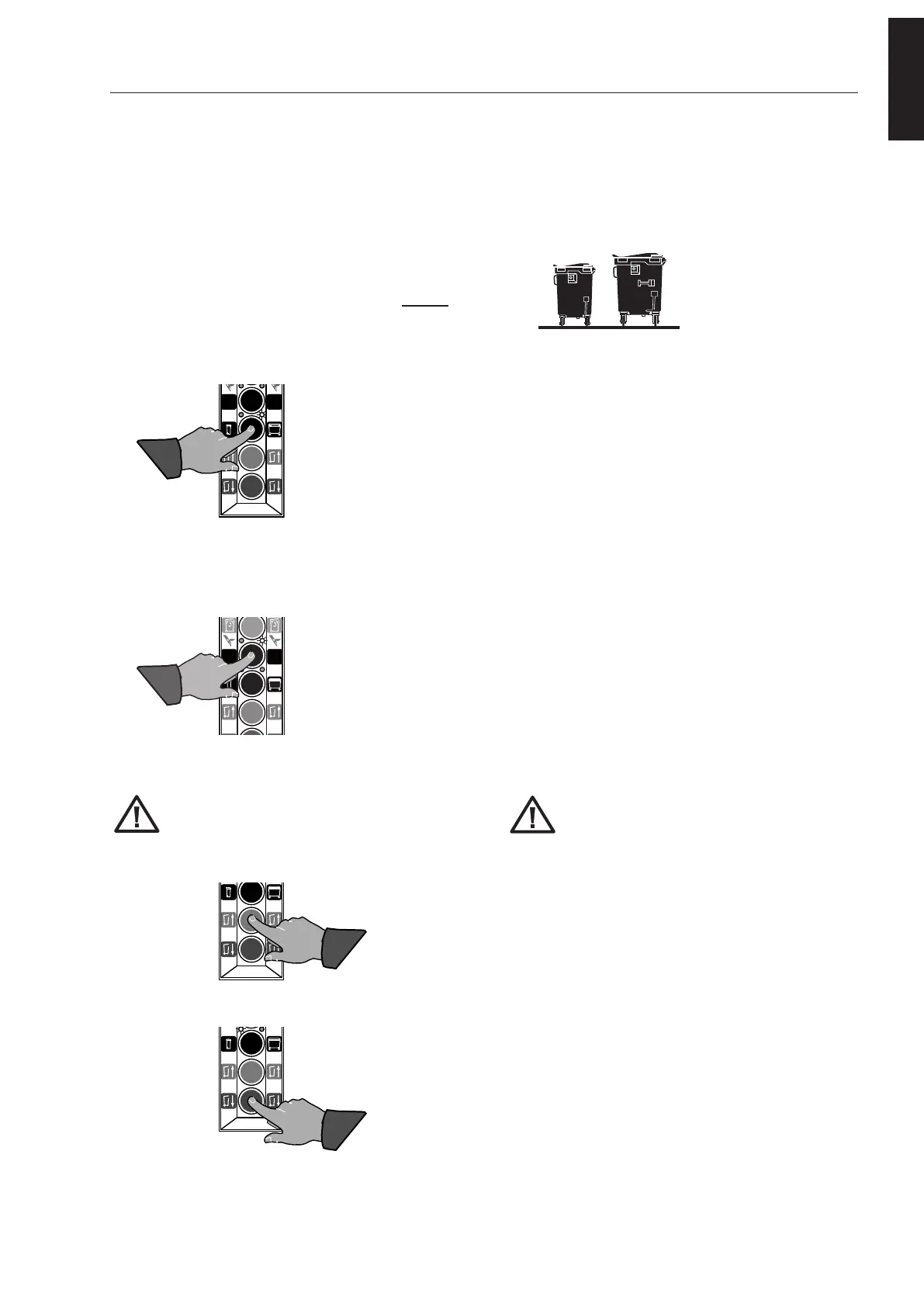

1) Set the bin lift for 4-wheel containers; the right-hand LED near the 4-wheel container must light up.
2) Adjust the catcherbar / lid opener in the correct position.
•
500, 660 and 770 litres containers
®
Position A
•
1000, 1100 and 1280 litres containers
®
Position B
3) Roll the container over the pick-up combs.
4) Press the UP button; the container lifts, tilts and empties itself.
5) Press the DOWN button; the container lowers to the ground.
6) Take the container off of the bin lift when the wheels touch the ground.
500
770
1000
1280
A B
A B
A B
A B
Make sure that the container is located
correctly on the pick-up combs.
Make sure that there are no persons in the
immediate vicinity of the bin lift during the
loading cycle.
