5.7 Setting compacting cycle 2-wheel bins (optional)
The compacting cycle refers to the compacting action that the compactor makes to move and compact the
waste into the body of the refuse collection vehicle.

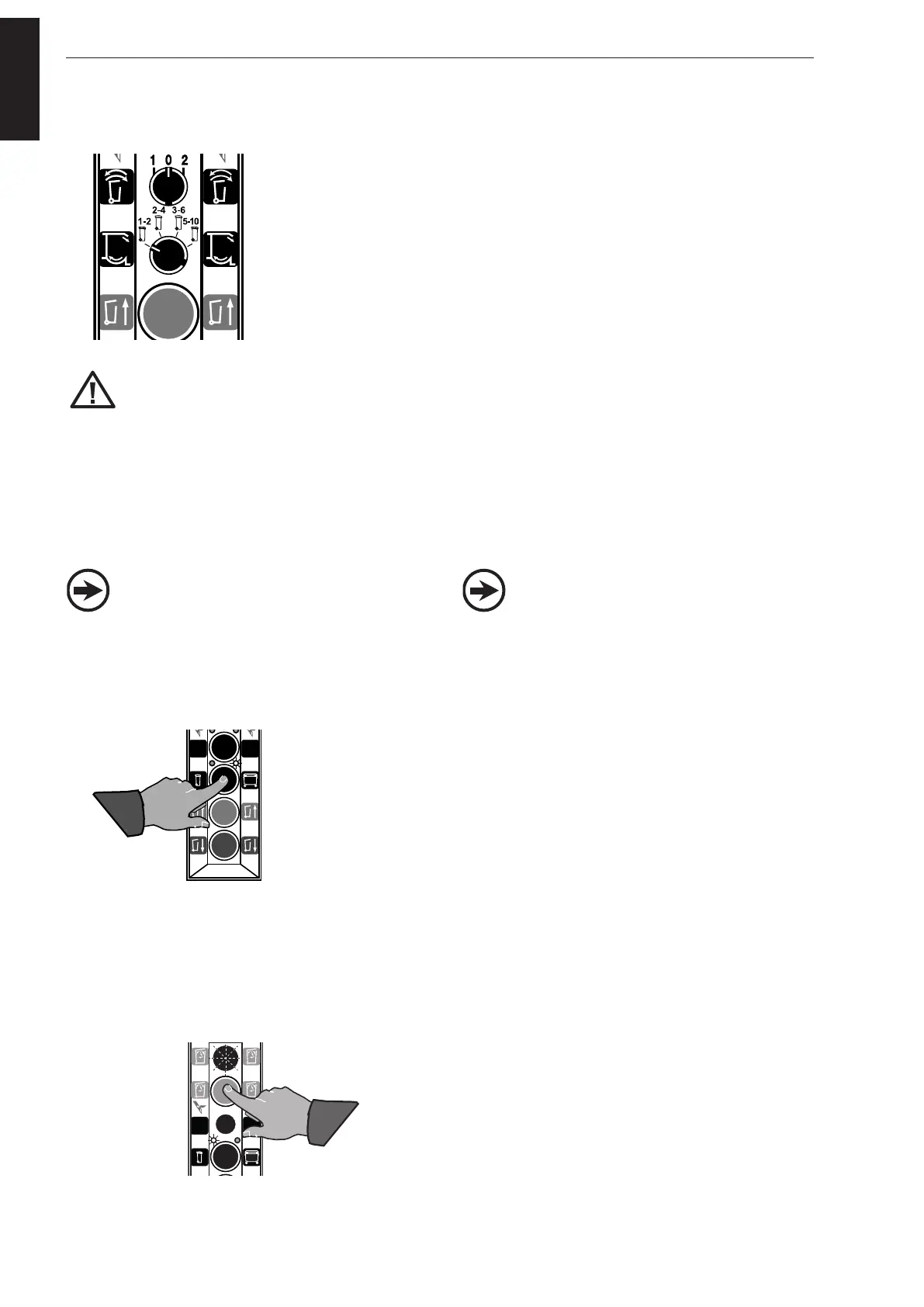

The compacting cycle is controlled using the 4-positions switch.
Position 1-2, the compacting cycle starts after emptying one to two bins.
Position 2-4, the compacting cycle starts after emptying two to four bins.
Position 3-6, the compacting cycle starts after emptying three to six bins.
Position 5-10, the compacting cycle starts after emptying five to ten bins.
5.8 Single man trade 4-wheel containers
Single man trade is a function that makes it possible for one man to empty 4-wheel containers. When this func-
tion is switched on a 4-wheel container is automatically lifted about 20 cm when it is positioned over the pick-up
combs.
Switching on single man trade
1) Set the bin lift to 4-wheel containers, the right-hand LED near the 4-wheel container must light up, or roll a
4-wheel container over the pick-up combs and the bin lift will automatically switch to 4-wheel containers.
2) Check the position of the catcherbar / lid opener:
Position A
®
Containers with FLAT LID 500, 660, 770 litres
Containers with ROLL TOP 770 and 1100 litres
Position B
®
Containers with FLAT LID 1000, 1100 and 1280 litres
3) Press the light green button (automatic function), the green check light will come on.
A B
A B
If the compaction compartment is too full this
may cause damage to the compaction system
and the bin lift.
One-man operation is only possible when
4-wheel containers are lifted with the pick-up
comb.
Emptying 4-wheel containers via DIN-arms is
not possible with the single man trade
function, because the bin security switches do
not operate then.
