4.8.1 Explanation of cable loom connection pins

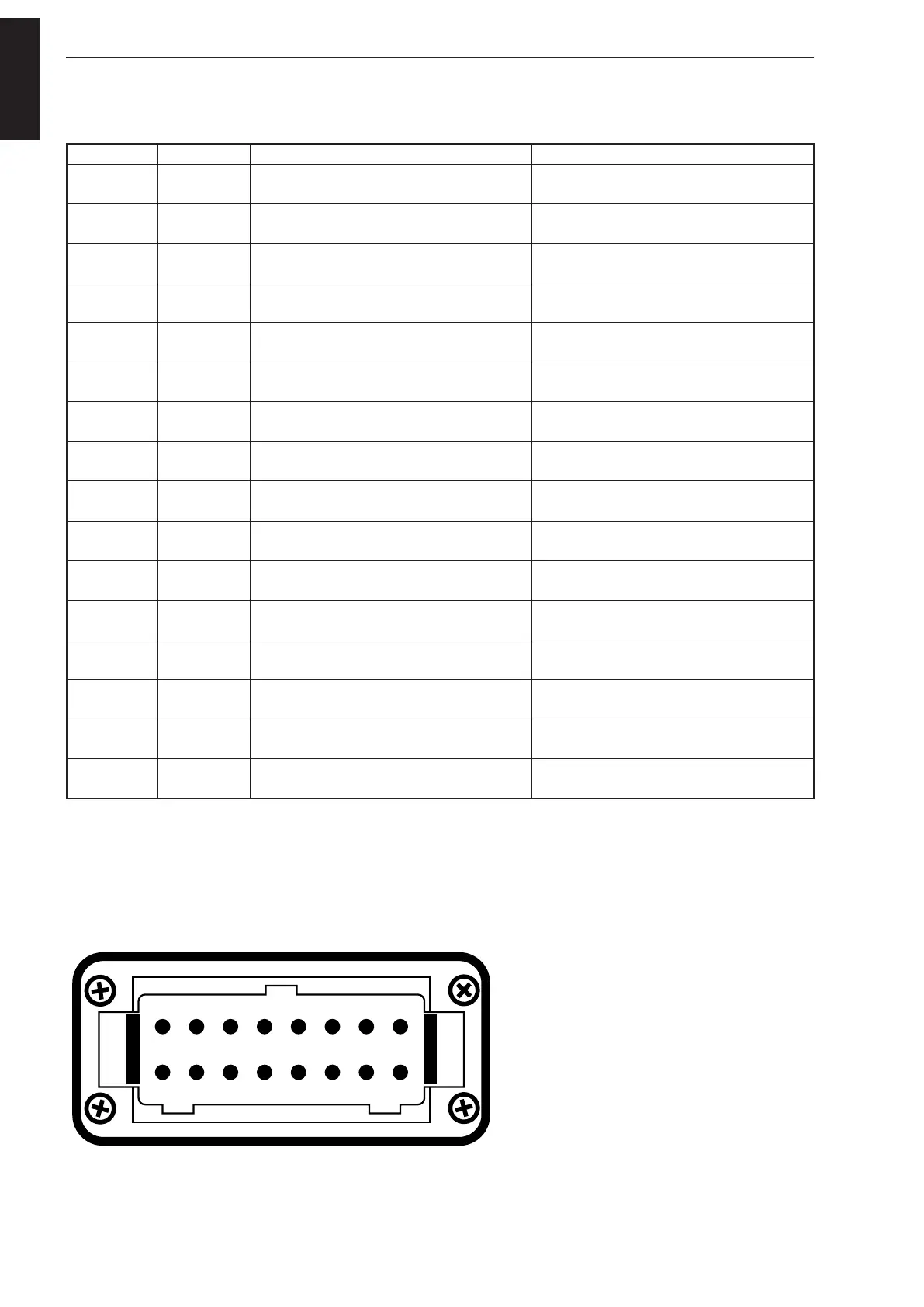

16-pole plug cable loom pin / wire definitions from bin lift
* CleAN open is a CAN data protocol for refuse collection vehicles; it makes data communication possible between the
various components (bin lift, identification system, weighing system and suchlike) of the refuse collection vehicle.
16-pole plug contact side
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
16
Pin number: Signal type: Signal description: Observation:
1 Supply Power supply in
+24 V, direct from chassis,
5 Amps maximum
2 Supply Power supply in
+24 V, direct from chassis,
5 Amps maximum (linked with pin 1)
3 Gnd Ground Mass chassis, 3 Amps maximum
4 Gnd Ground
Mass chassis, 3 Amps maximum
(linked with pin 3)
5 Input Reverse gear engaged +24 V
6 Output
Chairs low position,
out of travel position +24 V
7 Bus CleAN open* CAN (L)
8 Input Emergency stop circuit 1
Loop 1, input from the RCV,
maximum 300 mAmps and 50 V
9 Output Emergency stop circuit 1
Loop 1, output to RCV,
maximum 300 mAmps and 50 V
10 Input Emergency stop circuit 2
Loop 2, input from RCV,
maximum 300 mAmps and 50 V
11 Output Emergency stop circuit 2
Loop 2, output to RCV,
maximum 300 mAmps and 50 V
12 Output
Bin count pulse (one pulse per bin,
no matter if 2- or 4-wheeled)
+24 V, 300ms

1 sec. maximum
13 Input “RCV” ready
Body is in working order, lifter can use
revs and oil.
14 Output
Hydraulic supply request and
engine speed request (+24 V)
15 Bus CleAN open CAN (H)
16 Output Start compaction cycle +24 V, 300ms

1 sec. maximum
