Terberg OmniDEL - 5.4 2-Position Catcherbar Operations; 5.4.1 Manual 2-wheel Bin Loading

27
ã Terberg Machines B.V. IJsselstein, The Netherlands
All rights reserved. No part of this book may be reproduced, stored in database or retrieval system, or published, in any form or in any way,
electronically, mechanically, by print, photoprint, microfilm or any other means without prior written permission from the publisher.
5.4 Omni DEL ( e) with 2-position catcherbar
5.4.1 Loading 2-wheel bins
5.4.1.1 MANUAL loading 2-wheel bins,
capacity 80-360 litres EN 840-1

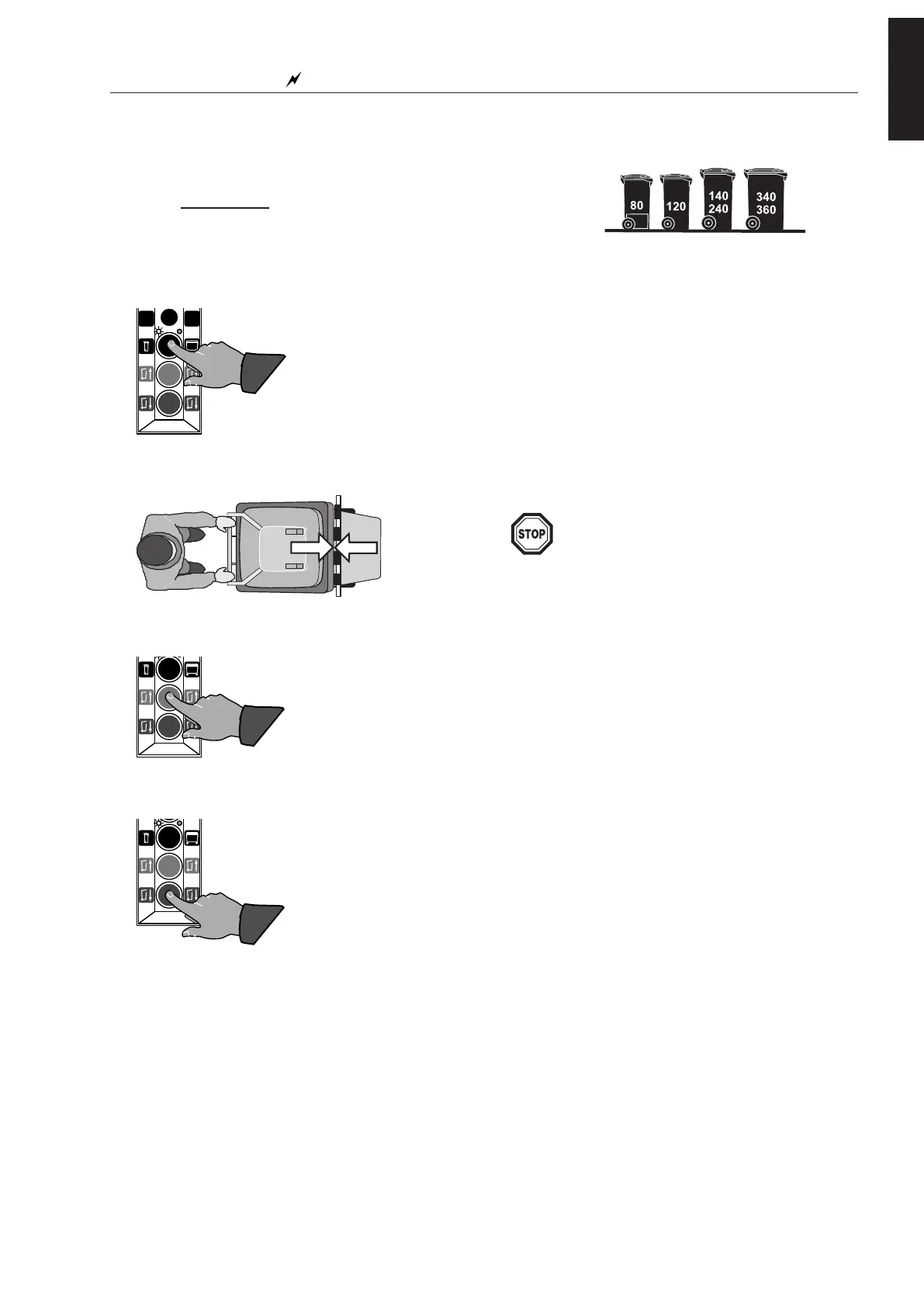

1) Set the bin lift for 2-wheel bins, the left hand LED near the 2-wheel bin must light up.
The catcherbar / lid opener will automatically move to the correct position: Position A.
2) Roll the bin up against the pick-up comb.
3) Press the UP button; the bin is raised into the tilting position.
4) Press the DOWN button; the bin lowers to the ground.
5) Take the bin off of the bin lift when the wheels touch the ground.
A B
A B
A B
Because in manual operation the bin security
switch is deactivated, great care must be
taken that the bin is located correctly on the
pick-up comb.
