Pivot Pin (quick attach)
Removal

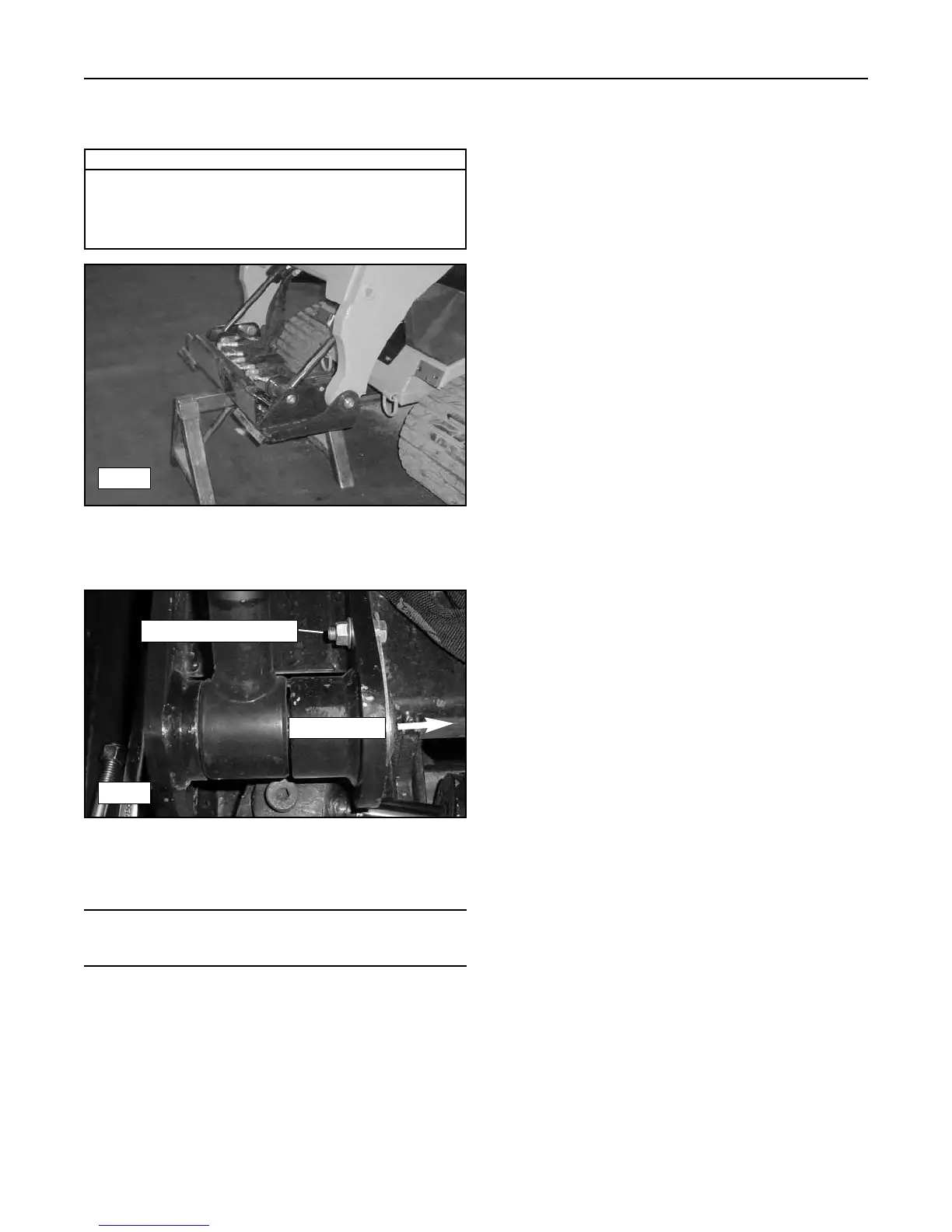

1. Rest the lift arms on an Terex approved jack stand
to provide clearance for quick attach disassembly.
(fig. 15-8)
2. Remove the bolt securing the pivot pin to the quick
attach weldment, then drive the pin out with a
hammer and brass drift punch. (fig. 15-9)
Note: There are four pivot pins that connect the quick
attach to the lift arm and cylinders. All four pins are
removed in a similar manner.
Installation
1. To install the quick attach pivot pins, reverse the
removal procedure.
2. Repeat this process as necessary to remove and
replace worn or damaged quick attach pins.
15-3
Compact Track Loader
15. Quick Attach
15-8
15-9
Required Tools
Combination/Open End/Socket Wrenches
Terex Approved Jack Stand (or equivalent)
Hammer
Punch (brass)
Remove bolt & nut
Drive out
