Terex PT-100G Forestry - Lift Arm Control Valve

Lift Arm Control Valve

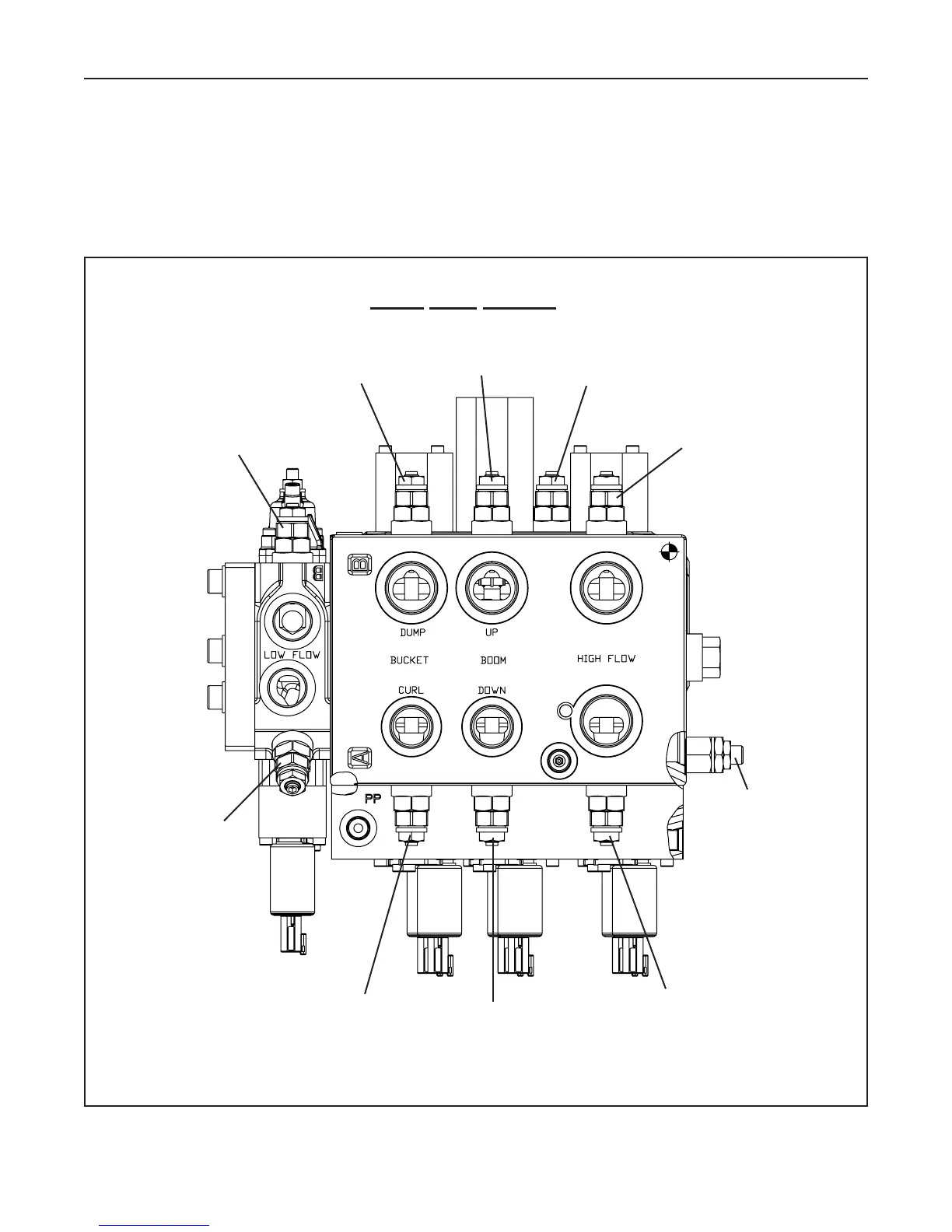

Figure 3-5 PT-100G Lift Arm Control Valve
3-5
Compact Track Loader
3. Circuit Diagrams
RELIEF VALVE SETTINGS
3989 PSI
(27500 kPa)
3989 PSI
(27500 kPa)
4206 PSI
(29000 kPa)
3481 PSI
(24000 kPa)
3989 PSI
(27500 kPa)
4496 PSI
(31000 kPa)
3989 PSI
(27500 kPa)
3307 PSI
(22800 kPa)
4496 PSI
(31000 kPa)
3989 PSI
(27500 kPa)
