Switches

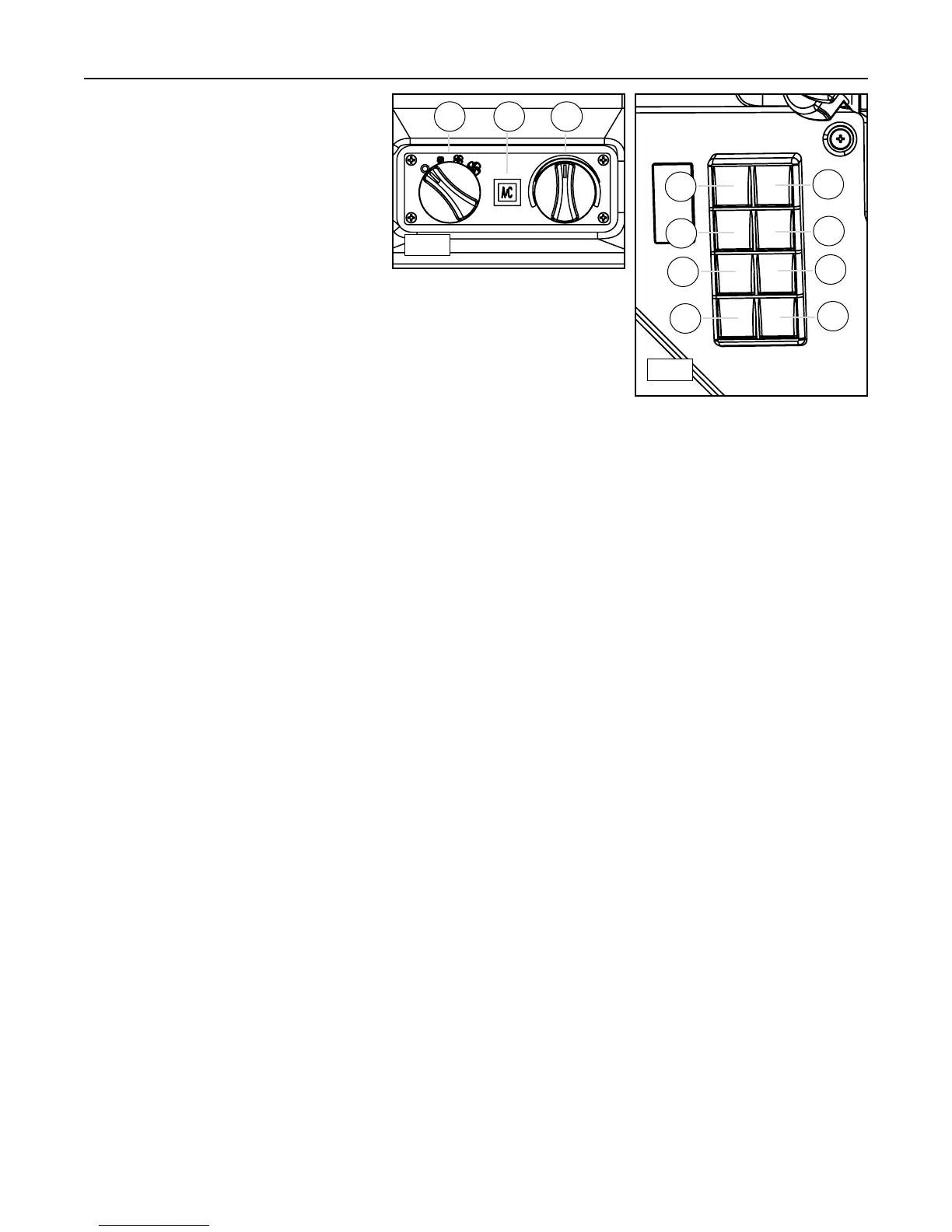

The various switches (Figure 5-3, 5-4) are
positioned to provide good access and visi-
bility. The standard and optional switches
are listed below.
1. Fan Speed Switch (optional)
2. A/C Activation Switch (optional
3. Air Temperature Control (optional)
4. Work Light Switch
5. Bucket Positioning Switch (optional)
6. High Flow Aux. Switch (forward)
7. High Flow Aux. Switch (reverse)
8. Power Quick Attach Switch (optional)
9. Parking Brake Switch
10. Low Flow Aux. Switch (forward)
11. Low Flow Aux. Switch (reverse)
5-2
Compact Track Loader
5. Machine Controls and Instrumentation
5-3
5-4
4
5
6
7
8
9
10
11
