4.7.2 Hi/Lo Pass PEQ 8 Band
This components combines Hi/Low pass filter and PEQ together. It offers a dynamical graphical control
window to easily know the overall results.

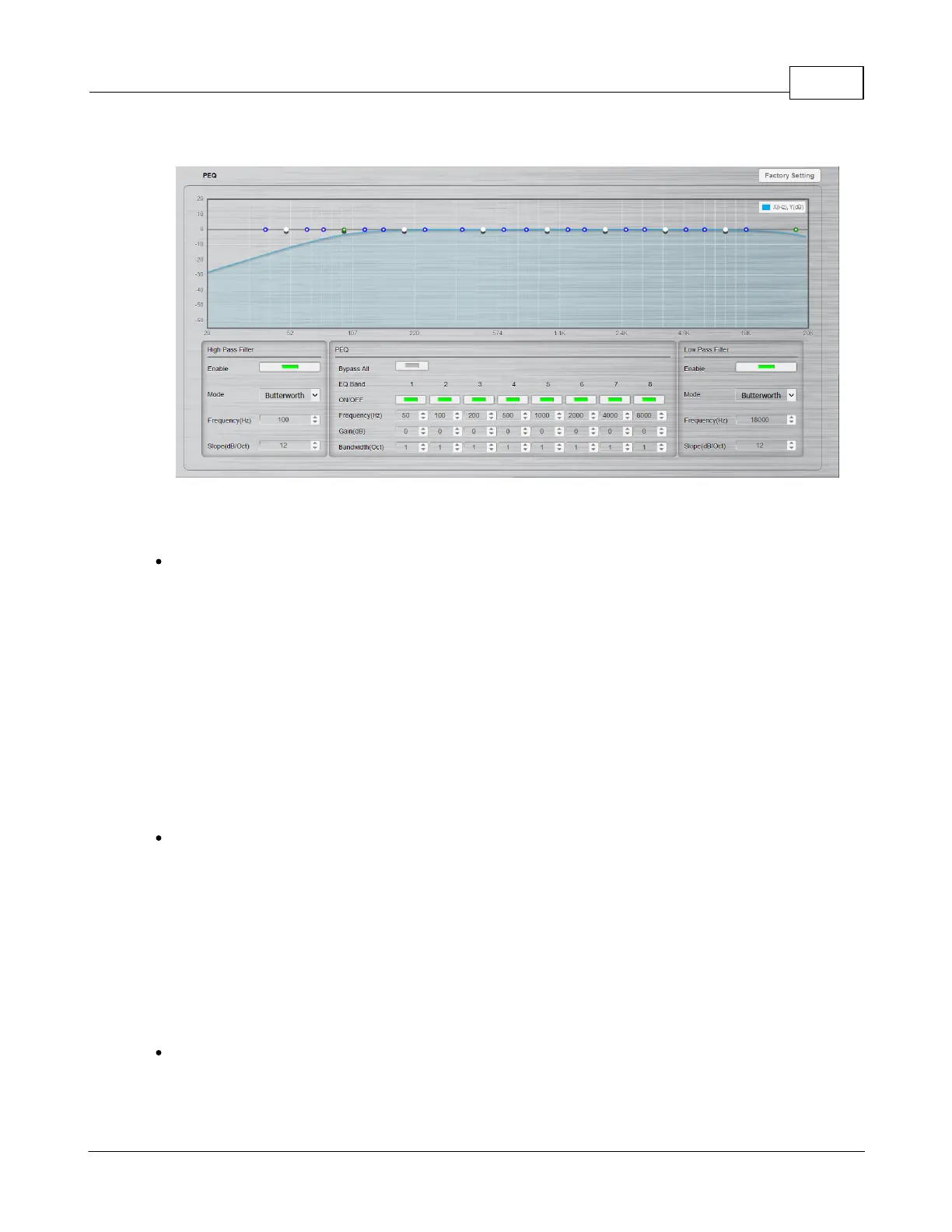

Graphical control window
The parameters which are mentioned above can also be adjusted by a graphical control window.
Once the parameters change, the graph will move together, and vice versa. It will show the result for
the parameters.
o Axis-X: Frequency of output signal (Hz).
o Axis-Y: Level of EQ gain (dB).
o Blue control point: Adjust bandwidth.
o White control point: Adjust EQ gain (using vertical direction) and frequency (using horizontal
direction).
o Green control point: Adjust the frequency of High/Low Pass filter.
High/low pass filter
This DSP component passes the high/low frequency and attenuate the frequency lower/higher than
its cutoff frequency.
o Enable: Enable the filtering.
o Mode: The type of filtering (Linkwitz-Rilet, Butterworth, Bessel).
o Frequency (Hz): The frequency of cut.
o Stope (dB/Oct): The slope of attenuation.
6 band PEQ
PEQ (Parametric Equalizer) is a multi-band variable equalizers which controls the three primary
parameters: gain, center frequency and bandwidth, making more precise adjustments to sound than
