TESA-hite 400 / 700

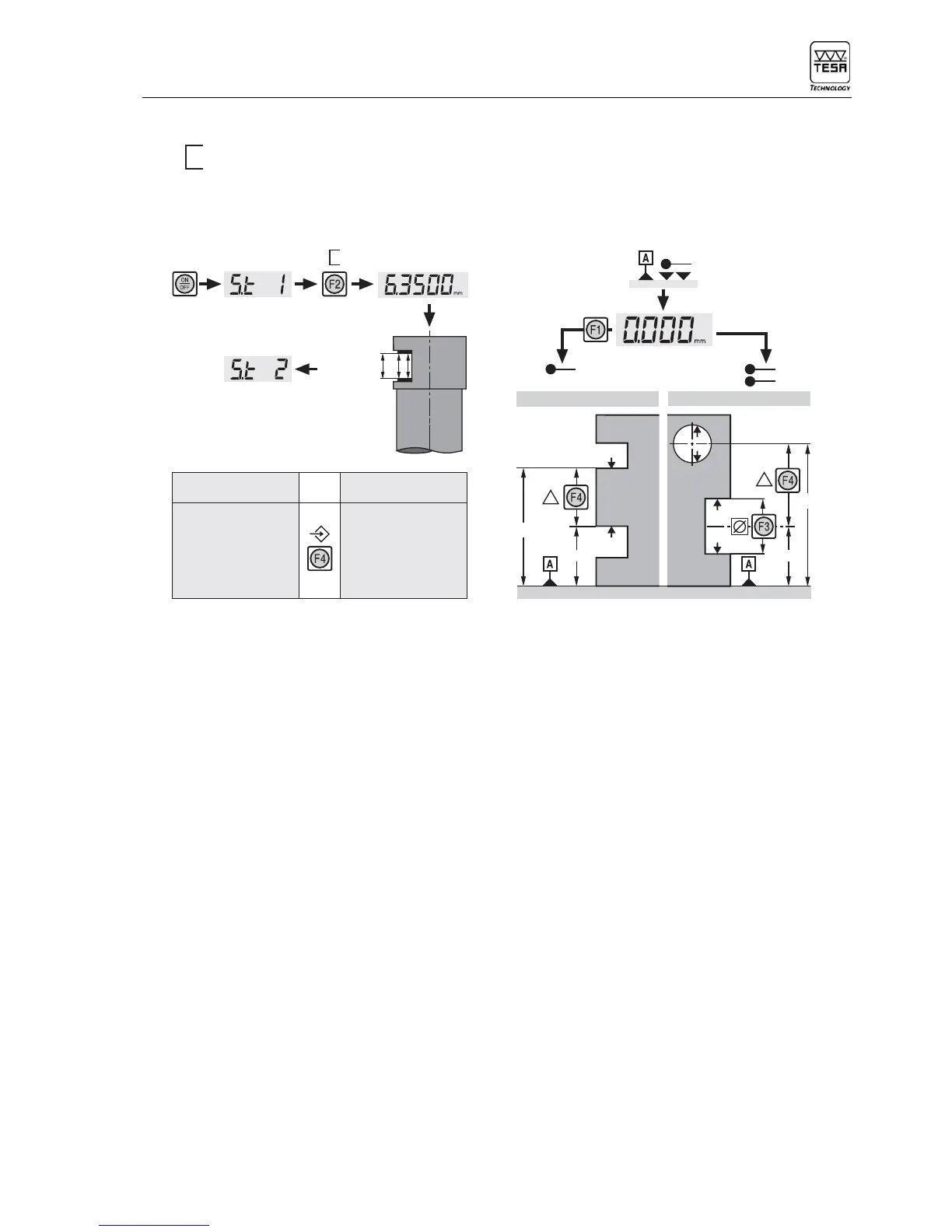

MODE 2 Measuring length in two directions, with calibration
h2
2 x
b
a
h1
d
c
b
h1
h2
a
6.3500 mm
.25000 in
2
1
4
3
With single probing With double probing
With reading Display
Scatter resolution
5 ÷ 10 µm 0.01 mm
.0002 ÷ .0004 in .0005 in
10 ÷ 50 µm 0.1 mm
.0004 ÷ .002 in .005 in
50µm 1 mm
.002 in .05 in
Procedure for detecting the culmination point
Probe normally without releasing the probe; wait about 1 second in the probing zone.
The system will automatically switch to culmination-point detection mode. Move either the part
or the TESA-Hite 400/ 700 by means of its air cushion so that measuring probe passes through the
culmination point. The TESA-Hite 400 / 700 has a system for automatically detecting the shape of the
surface being probed (concave or convex). Hence it is not necessary to indicate to the
TESA-Hite 400 / 700 whether it is probing a bore or a shaft as this will be detected automatically
according to the upward or downward probing of the maximum or minimum culmination point. Once
the symbol ▲ or ▼ appears on the display, the system will have automatically detected the
maximum or minimum point of the bore or shaft to be measured. The measuring head can now be
withdrawn.
8
