DS 300H Series � 3/3 � 30 kVA � UPS CONTROLLED UPS
8

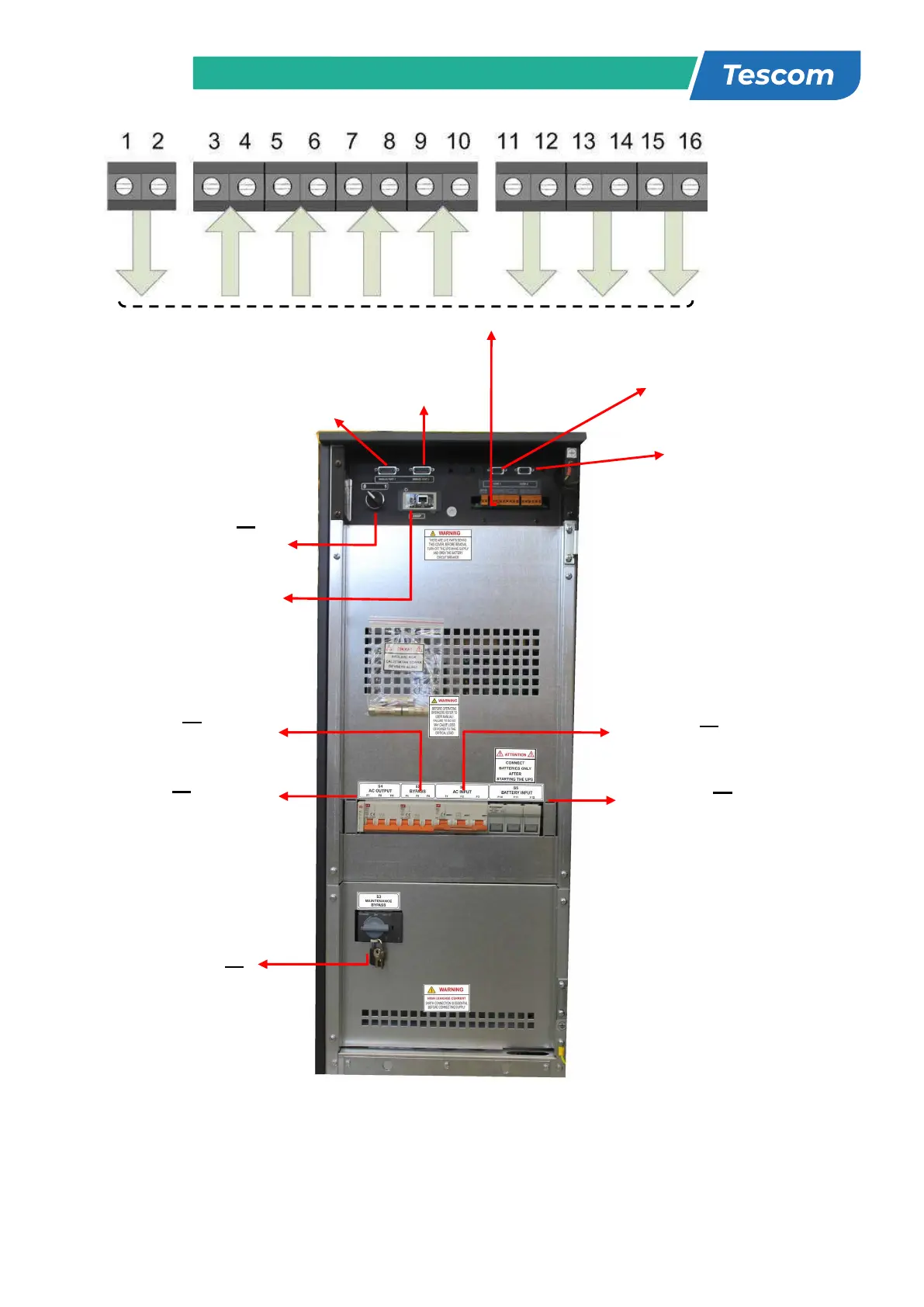

Figure 1.3.b 30 kVA Fuses and Switches Panel
S5
(Battery Input, F10-F11-F12)
S1
(AC Input, F1-F2-F3)
S3
(Maintenance By-pass)
S2
(By-Pass, F4-F5-F6)
S4
(AC Output, F7-F8-F9)
COM1 - RS232
Communication Socket
(DB9 Female)
S7
On / Off
Switch
SNMP Adapter
(Optional)
COM2 - RS232
Communication Soc
ket
(DB9 Female)
Relay Output Contacts and Inputs
Battery
Circuit
Breaker
Generator
input
Repo
input
TH1
Sensor
Relay
2
Relay
3
Relay
4
Parallel Port 2
(Optional)
Parallel Port 1
(Optional)
9
1.4 Technical Specifications
MODEL DS310H DS315H DS320H DS330H
Output (KVA) 10 kVA 15 kVA 20 kVA 30 kVA
Output (KW) 9 kW 13,5 kW 18 kW 27 kW
Output Power Factor 0,9
INPUT
Number of Phases 3 Phase + Neutral
Input Voltage 220/380, 230/400 or 240/415 Vac
Input Voltage Tolerance +20% , -25% (+15% at 240/415Vac)
Input Power Factor (PF) 0,98 - 0,99 (at full load)
Input THDI <= 4% (at full load)
Input Frequency
50 Hz. ±5%
By-pass Voltage 220/380, 230/400 or 240/415 Vac 3 Phase + Neutral
By-pass Frequency
50 Hz. ±2%
RFI Level EN62040-2
OUTPUT
Number of Phases 3 Phase + Neutral
Output Voltage 220/380, 230/400 or 240/415 Vac
Output Voltage Tolerance
±1%
Output Frequency 50 Hz.
Output Frequency Tolerance (Synchronous)
±2%
Output Frequency Tolerance (Battery)
±0,2%
Efficiency (100% Load) up to 94%
Load Crest Factor 3:1
Output Voltage THD (linear load) <3%
Overload 125% Load 10min. , 150% Load 1min.
BATTERY
Total Number 60 blocks 12V (2x30 serial 60 batteries)
Float Charge Voltage (25
0
C)
± 405V DC
End of Discharge Voltage
± 300V DC
Battery Test Automatic and Manual
Boost Charge Available
COMMUNICATION INTERFACES
RS232 Com Port 2 each standard (COM1 and COM2)
External Temperature Measurement Input Available (standard)
RS485 Comm. Port Optional
Remote Monitoring Panel Optional
SNMP Adapter Optional
Modbus Adapter Optional
Alarm Relay Contacts 4 each dry contacts (function programmable) 8 optional
Digital Inputs 2 each optional
Emergency Power-Off Input Available (standard)
ENVIRONMENT
Operating Temperature 0 – 40
0
C
Operating Humidity <= %90 (non-condensing)
Acoustic Noise <55dB <57dB <61dB
Dimensions (WxDxH) (mm) 400x815x1035
Device Type and Protection Class Class 1 – IP20
Weight (Without Batteries) (app. kgs) 87 91 100
