Tescom DS360H - Front View of UPS Connection Panel

9
USER MANUAL
DS 300H Series � 3/3 � 30 kVA � UPS CONTROLLED UPS
7

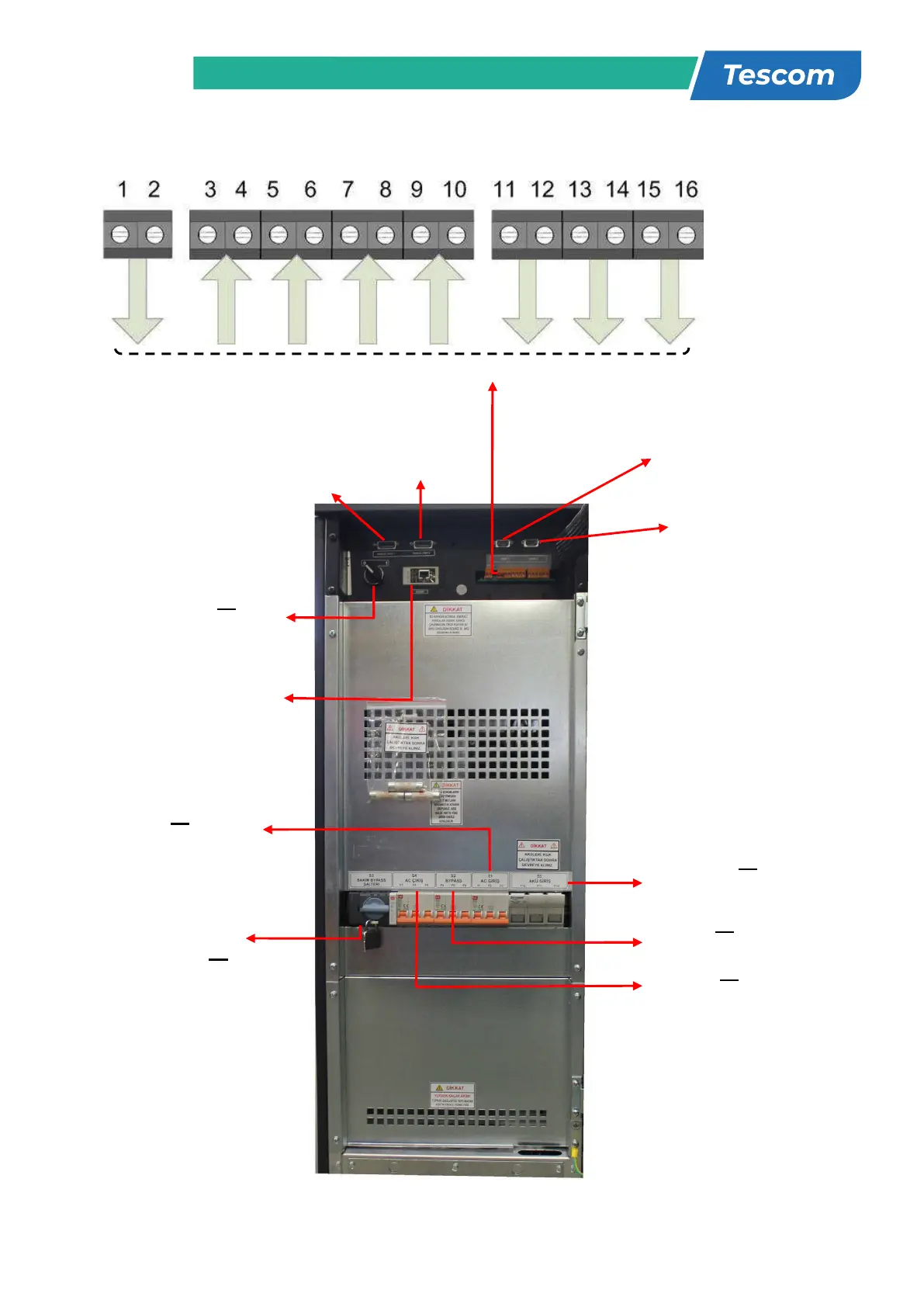

1.3 Front view of UPS Connection Panel
Figure 1.3.a 10-15-20 kVA Fuses and Switches Panel
COM1 - RS232
Communication Socket
(DB9 Female)
Relay Output Contacts and Inputs
S7
On / Off
Switch
S1
(AC Input, F1-F2-F3)
S3
(Maintenance By-pass)
S2
(By-Pass, F4-F5-F6)
S4
(AC Output, F7-F8-F9)
SNMP Adapter
(Optional)
COM2 - RS232
Communication Soc
ket
(DB9 Female)
Battery
Circuit
Breaker
Generator
input
Repo
input
TH1
Sensor
Relay
2
Relay
3
Relay
4
S5
(Battery Input, F10-F11-F12)
Parallel Port 2
(Optional)
Parallel Port 1
(Optional)
