TESTO 312 - Pressure Transducer (Accessories)

Normal use
The pressure transducer protects the testo 312
measuring instrument from moisture and high
temperatures: measures vapour and water pressure.
Measuring
Do not use an extension cable between the pressure
transducer and the instrument.
1 Connect connection A of the pressure transducer
directly to the instrument (+).
2 Switch on instrument.
3 Press “Start” and wait for calibration phase (5s).
4 Connect connection P of the pressure transducer
directly to the control pressure pipe.
Observe maximum pressure range of instrument and the
pressure transducer used!
5 Apply pressure to pipe.
6 Take readings.
7 Press “Hold”.
8 Remove pressure from pipe.
9 Disconnect pressure transducer from instrument.
Technical data
Connection size: ..........1/8” plug-in connection
Size
(Height/Diameter): ........33mm/64.8mm
Weight: ........................175g
Housing material:..........Aluminium
Pressure range: ............0-1bar (0554.3168)
....................................0-6bar (0554.3159)
Pressure loss: ..............0 to 6% of reading
Diaphragm: ..................Temperature resistant to 120°C,
....................................oil resisting
Overload:......................2bar (0554.3168)
....................................8bar (0554.3159)
Pressure transducer (Accessories)
Instructions

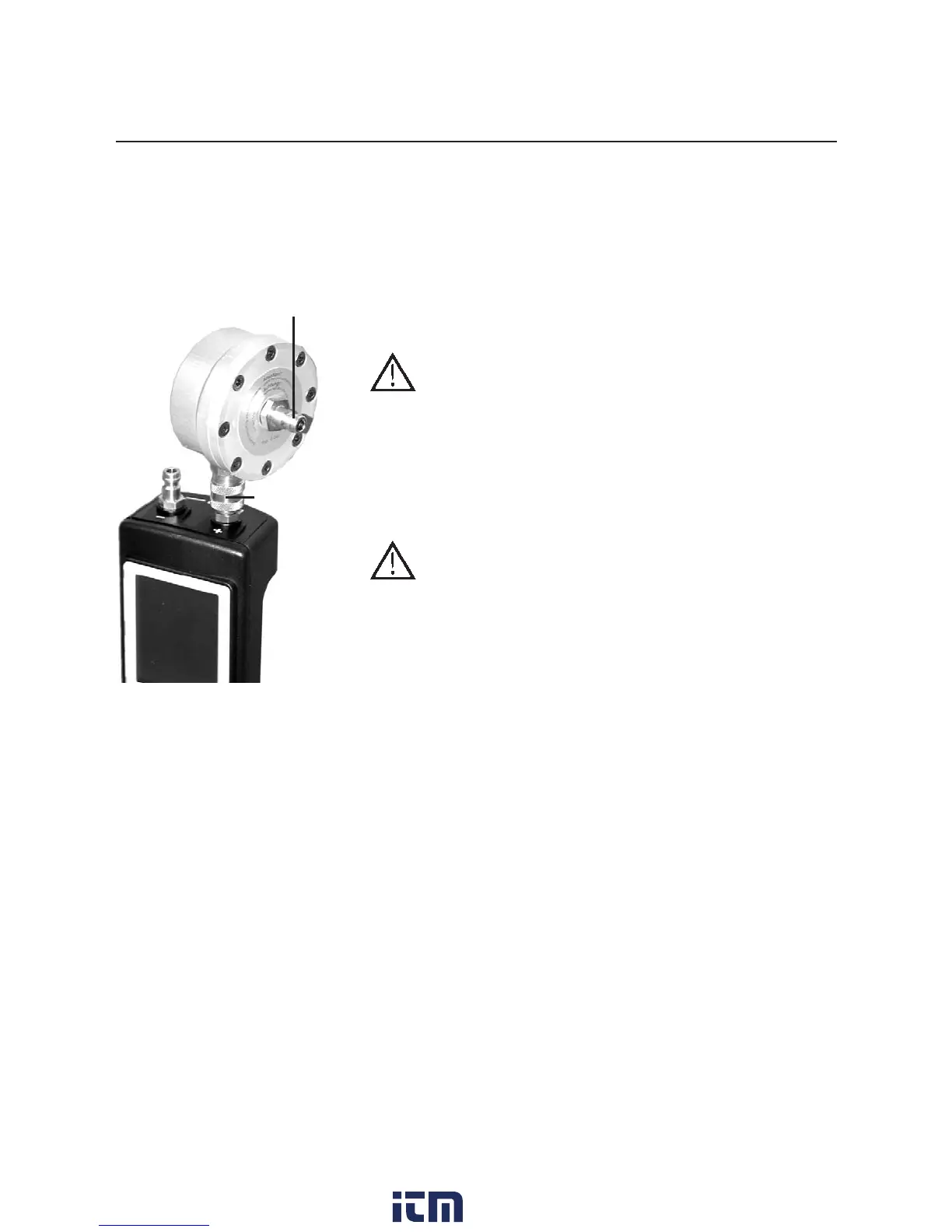

Connection
A
Connection P
