Procedure
www.ti.com
8
SLUUC60–February 2020
Submit Documentation Feedback
Copyright © 2020, Texas Instruments Incorporated
BQ24800 EVM

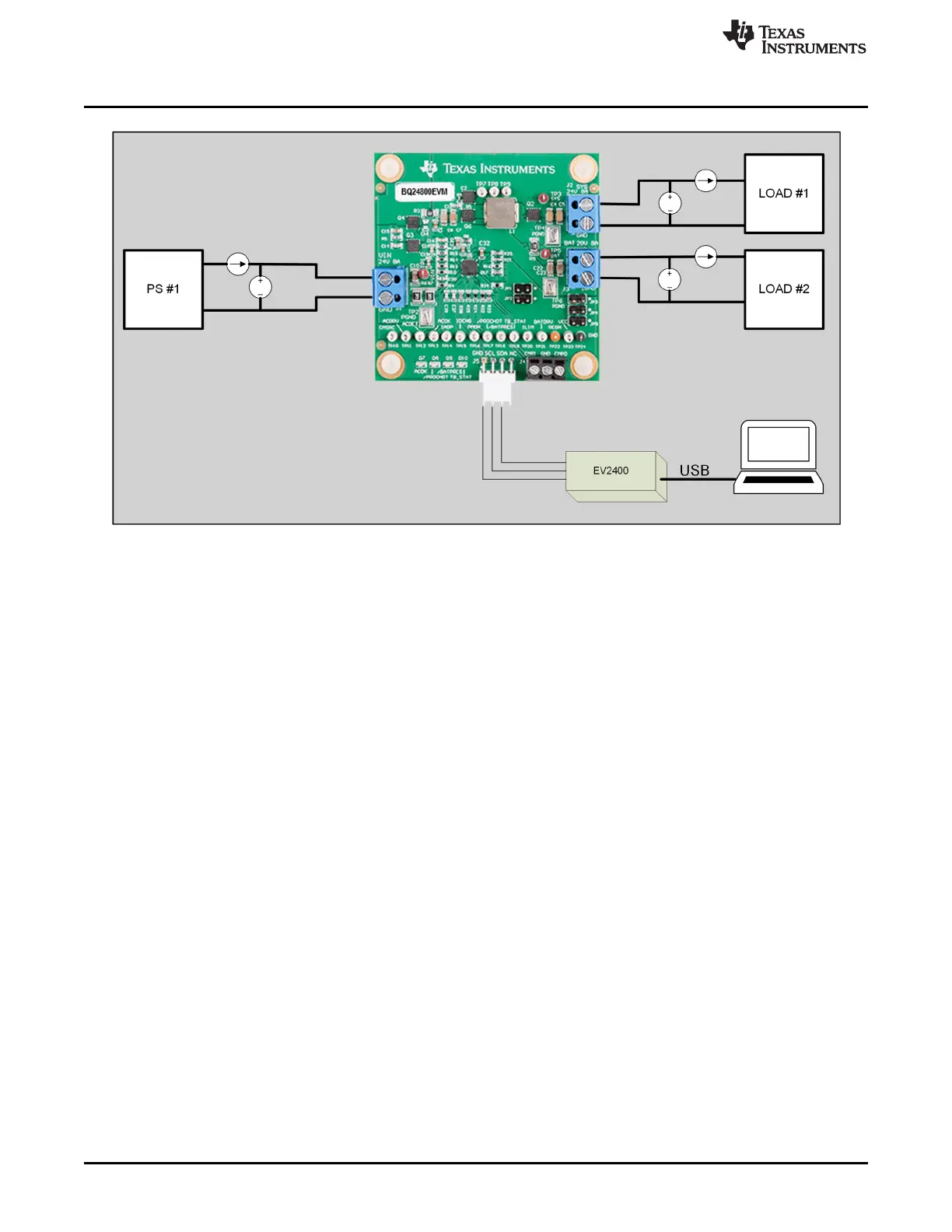

Figure 4. Test Setup for BQ24800EVM
3. Type “2944” (mA) in ChargeCurrent Register and click OK.
This sets the battery charge current regulation threshold to 2.944 A.
• Measure → IBAT = 3000 mA ±300 mA
• Measure → V[TP14(IIADP)] = 340 mV ±40 mV
4. Set Load #1 current to 3.0 A ±50 mA but disable the output. Make sure ISYS = 0 A ±10 mA. Enable
the output of Load #1.
• Measure → ISYS = 3000 mA ±300 mA
• Measure → IBAT = 1800 mA ±300 mA
• Measure → IIN = 4100 mA ±400 mA
• Measure → V[TP14(IADP]) = 820 mV ±100 mV
5. Turn off the Load #1.
• Measure → ISYS = 0 ±100 mA
• IBAT = 3000 mA ±300 mA
3.4 Hybrid Boost Mode
Use the following steps for hybrid boost mode:
1. Enter “1A44” in ChargeOption3 value to enable the hybrid boost function
2. Change Load #2 with PS#2. Make sure a voltage meter is connected across J2 (BAT, GND).
3. Enable the output of PS#2. Make sure the output voltage is 10 V ±500 mV and 3-A current limit.
4. Set Load #1 load current to 5.0 A ±50 mA. Enter boost mode.
• Measure → ISYS = 5000 mA ±500 mA
• Measure → IBAT = –2000 mA ±600 mA
• Measure → IIN = 4100 mA ±400 mA
• Measure → V[TP15(IIDCHG)] = 270 mV±100 mV
5. Set Load #1 load current to 0.5 A ±50 mA. Exit boost mode. Back to charging mode.
• Measure → ISYS = 500 mA ±50 mA
