I2CWriteWord(0x0000, 0x0009, 100)
CCA == 1 && BCA == 1
I2CReadBlock(0x00, 2, 100)
Wait for CCA bit
to clear
End
Device is not calibrating
CC offset; retry
The device is in the
process of calibrating
CC offset while the
CCA bit is set. The
CCA bit will clear and
then the device will
calibrate the board
offset. Host should
check the CCA/
BCA bits more than
once every 0.5 s.
NOT
True
True
False
False
BCA == 0
I2CWriteWord(0x0000, 0x0000, 100)
BOARD_OFFSET MAC Command:
0x0009 to 0x0000
Enter Calibration Mode
Exit Calibration Mode
Board Offset www.ti.com
14
SLUUBH1C–August 2016–Revised March 2018
Submit Documentation Feedback
Copyright © 2016–2018, Texas Instruments Incorporated
Factory Calibration
3.6 Board Offset
Use MAC commands for Board Offset calibration. The host system does not need to write information to
the DF. The host system must ensure that the fuel gauge is UNSEALED. See CONTROL_STATUS:
0x0000 for the description of the CONTROL_STATUS[CCA] and [BCA] bits.
NOTE: While the device is calibrating the Board Offset, the host system should not read the
CONTROL_STATUS() register at a rate greater than once every 0.5 seconds and no current
should be flowing.
The step labeled Enter CALIBRATION Mode refers to Section 3.3, Enter CALIBRATION
Mode.
The step labeled Exit CALIBRATION Mode refers to Section 3.11, Exit CALIBRATION
Mode.

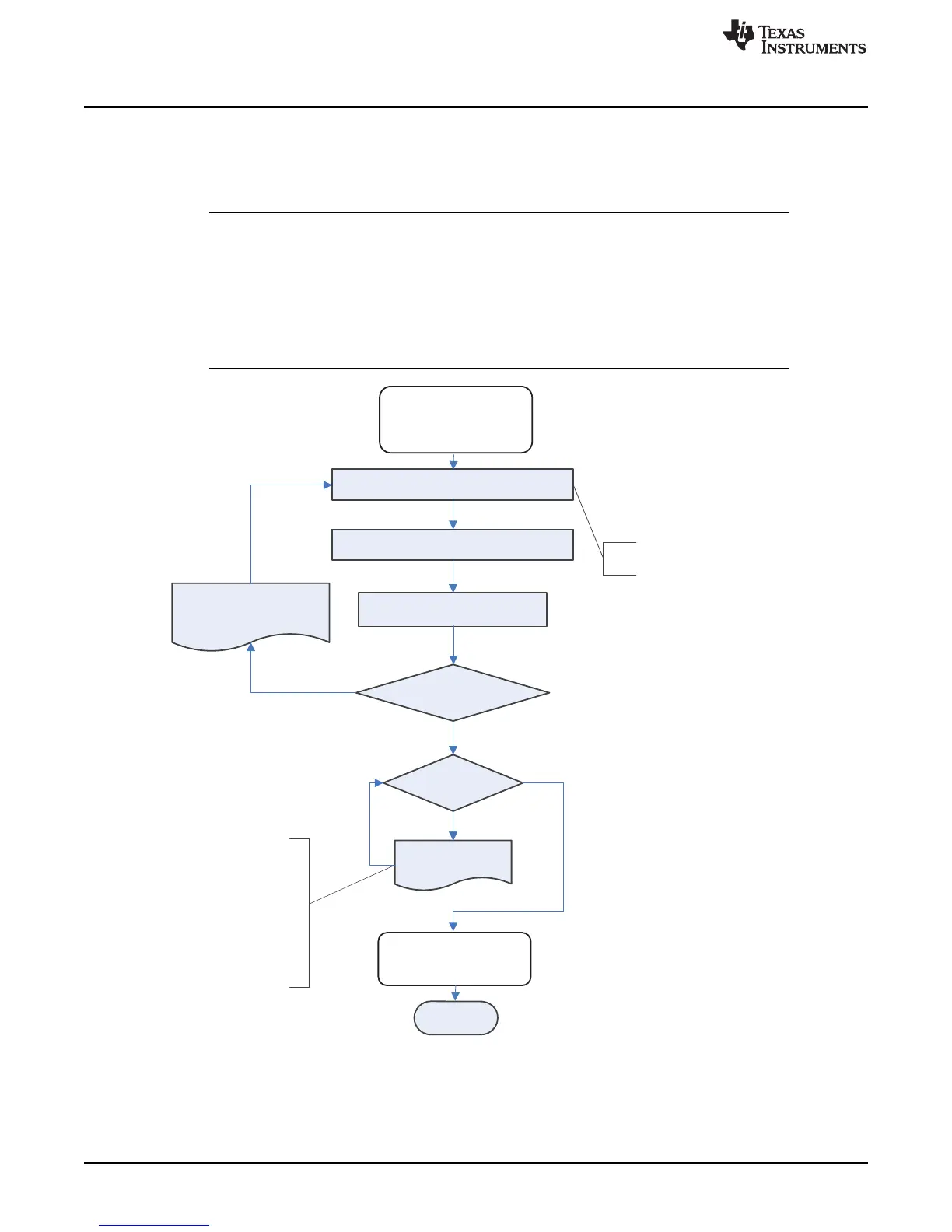

Figure 3-4. Board Offset Flow
