Bringing LMX2594 to a Lock State
www.ti.com
10
SNAU210–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
LMX2594 EVM Instructions – 15-GHz Wideband Low Noise PLL With
Integrated VCO
For best results, in the User Controls Tab in TICS Pro. Under General Controls, check and uncheck the
Reset box. After the reset, Write all registers as shown in Figure 9:

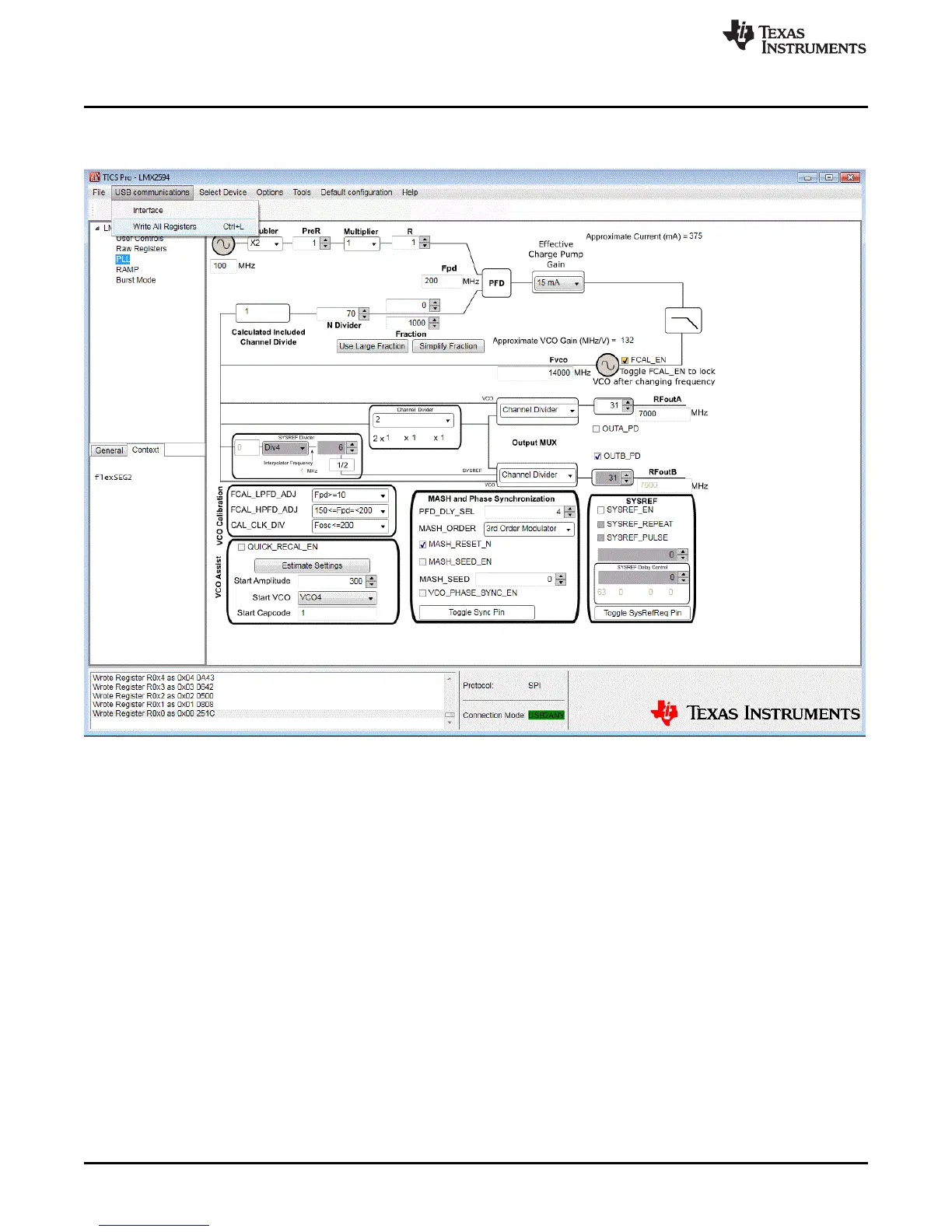

Figure 9. TICS Pro Write All Registers
