SYSREF Feature
Appendix G
SNAU210–March 2017
SYSREF Feature
1. Bring LMX2594 to a Lock State
2. Perform Sync

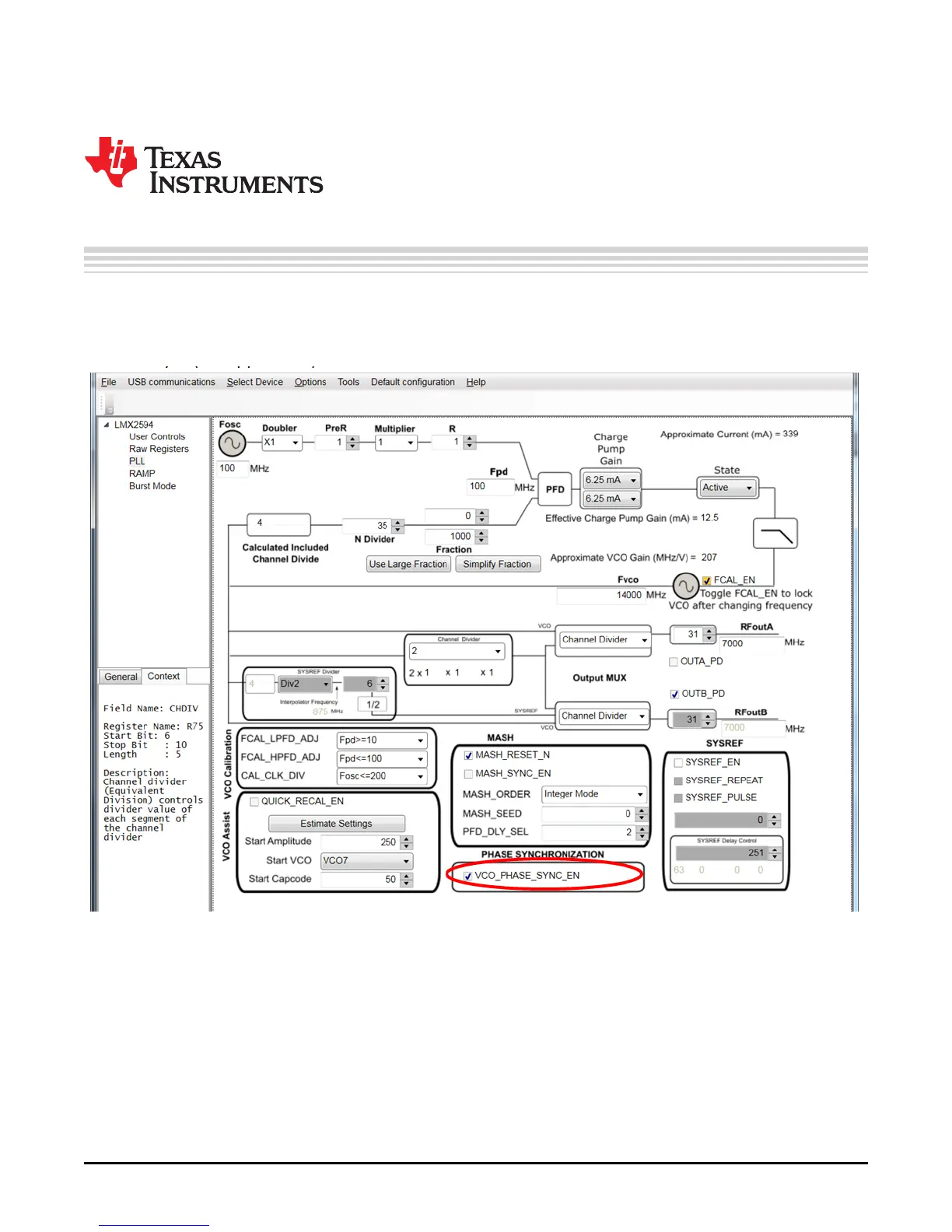

Figure 21. Perform Sync For SysRef
3. Configure TICS Pro PLL tab for SysRef
• Check the SYSREF_EN box
• Change OUTB_MUX to SysRef
• Uncheck the OUT_PD box
