LMX2594 EVM Instructions – 15-GHz Wideband Low Noise PLL With
Integrated VCO
6 Key Results to Expect

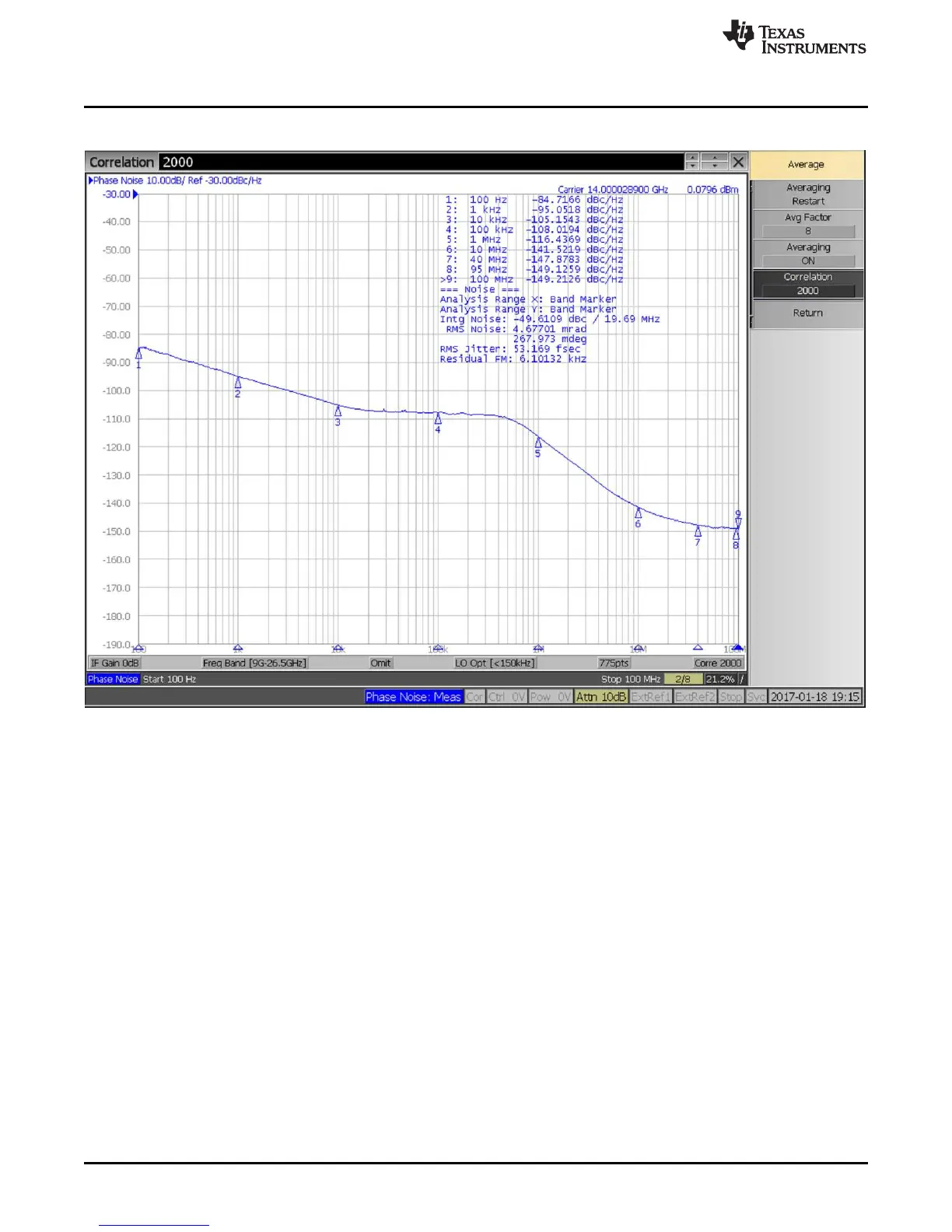

Figure 11. Phase Noise Plot at 14-GHz Output Frequency
This assumes that the input reference is very clean, such as a 100-MHz Wenzel oscillator. A signal
generator is NOT sufficiently clean. The LMX2594 requires an external reference.
