Ramping Feature
Appendix F
SNAU210–March 2017
Ramping Feature
F.1 Ramping Example Waveform

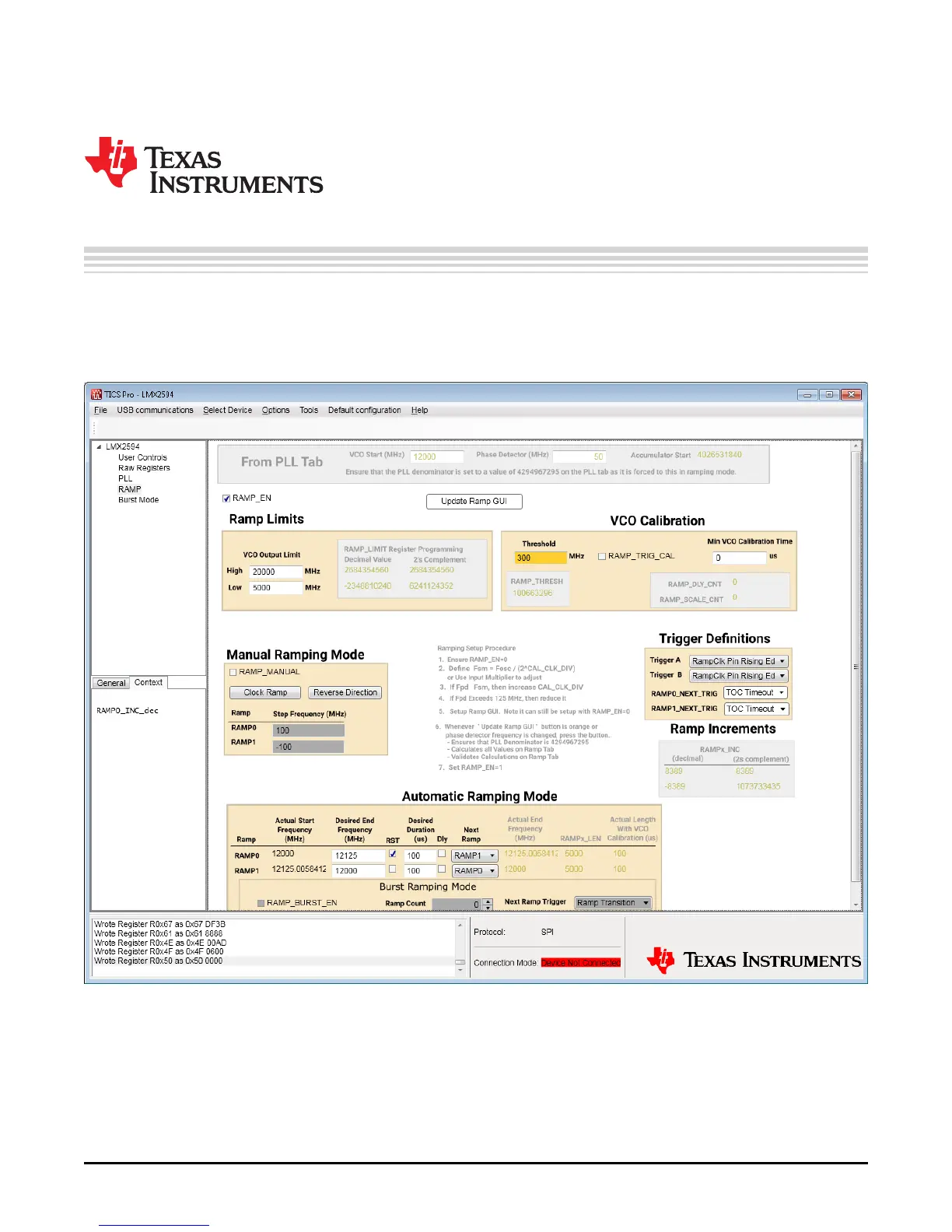

VCO is ramping from 8 to 10 GHz and being dividing by 4 so that it can be seen with the HP53310A. This
can be set up on the ramp GUI tab.
Figure 19. Ramping Example Tics
