16
SNAU210–March 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
Board Layers Stack-Up
Appendix C
SNAU210–March 2017
Board Layers Stack-Up
Total Board thickness is 62 mils.

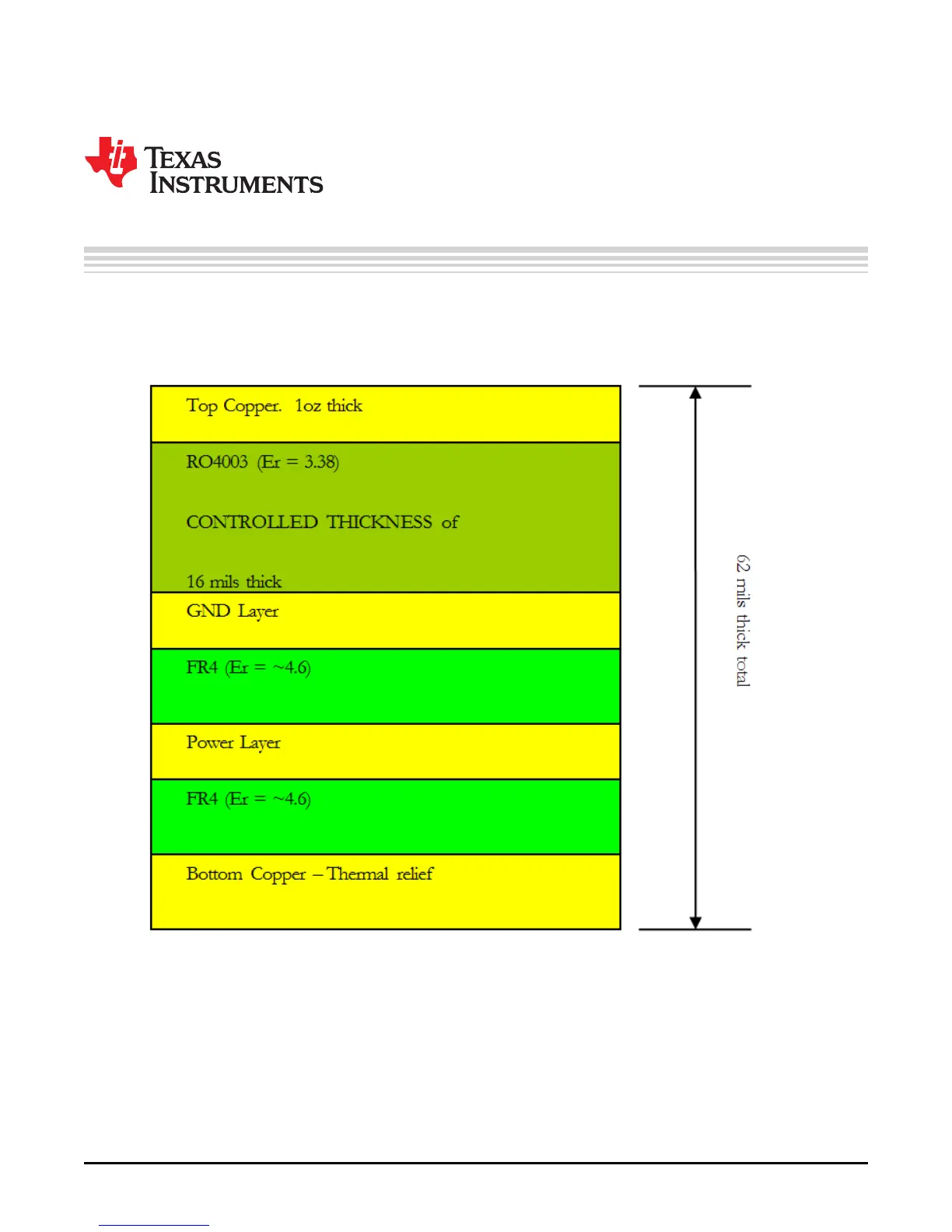

Figure 13. Board Layer Stack-Up
