www.ti.com MSP430 MSP-EXP430F5529LP Settings and Resources
3.4 MSP430 MSP-EXP430F5529LP Settings and Resources

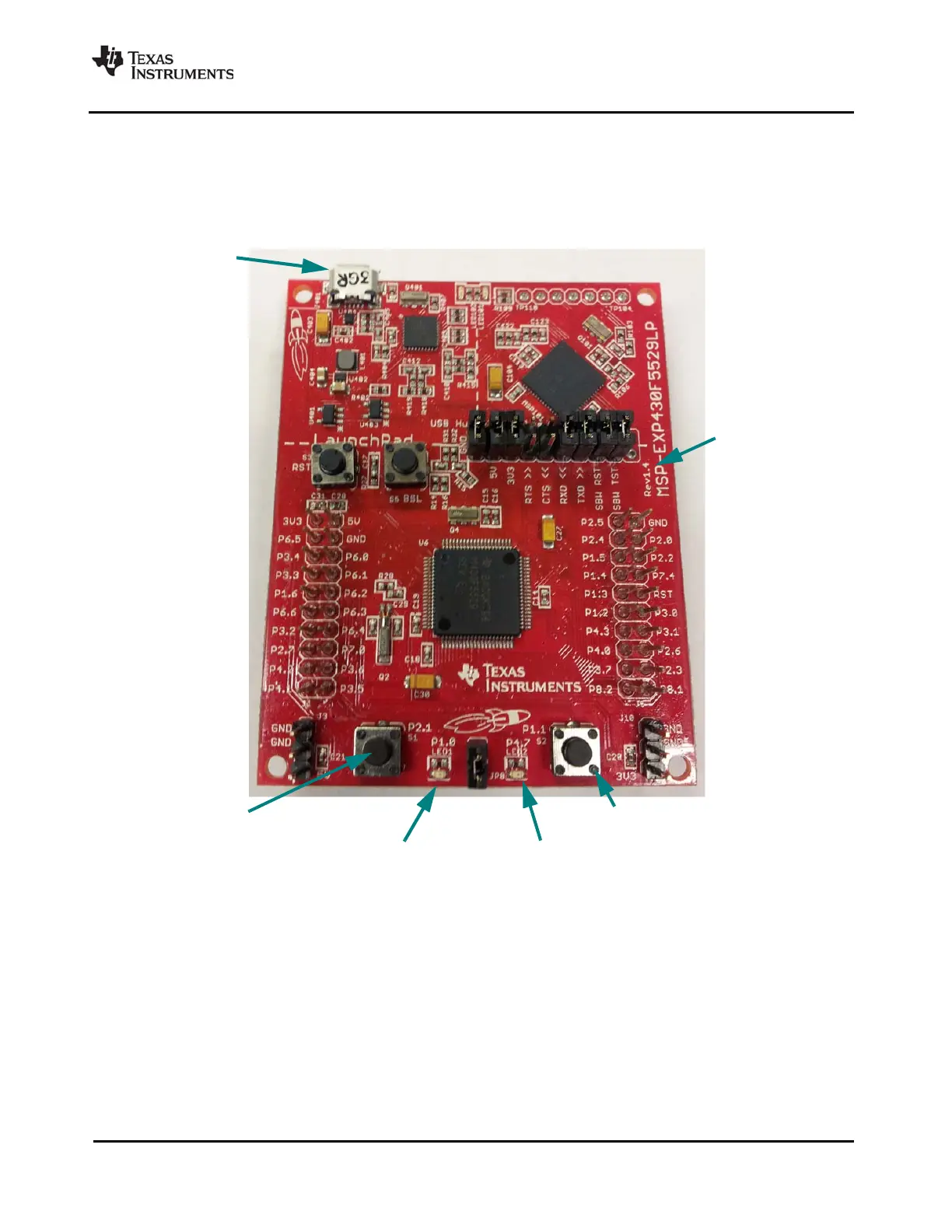

The MSP-EXP430F5529LP board contains an MSP430 MSP430F5529 device.
MSP-EXP430F5529LP connections:
Jumper settings:
•
Set RXD << and TXD >> to provide UART communications via the onboard USB debugger.
If you use a BoosterPack with this board (Section 3.8), the BoosterPack fits over J1 and J5.
SPI Loopback example pin connections:
The SPI loopback example is not supported on MSP430F5529.
Micro-B USB for
power, emulation,
UART examples,
and USB examples
Board_LED0
(MSP_EXP430F5529LP_LED1)
Board_BUTTON0
(MSP_EXP430F5529LP_S1)
Board_BUTTON1
(MSP_EXP430F5529LP_S2)
Board_LED1
(MSP_EXP430F5529LP_LED2)
Rev 1.4+
required for all
booster-packs
