30 Examples for TI-RTOS SPRUHU4D—February 2016
Submit Documentation Feedback
BoosterPacks www.ti.com
3.8.5 RF430CL330 NFC Transponder Module
The I
2
C RF430CL330 Load example uses the I
2
C driver to communicate with a RF430CL330 NFC
transponder module. This board may be used with the MSP-EXP430F5529LP, MSP-EXP430FR5969LP,
MSP-EXP430FR6989LP, and MSP-EXP432P401RLP.
A Wireless Connectivity Adaptor board is also required in order to use the NFC Transponder Module with
a LaunchPad board.

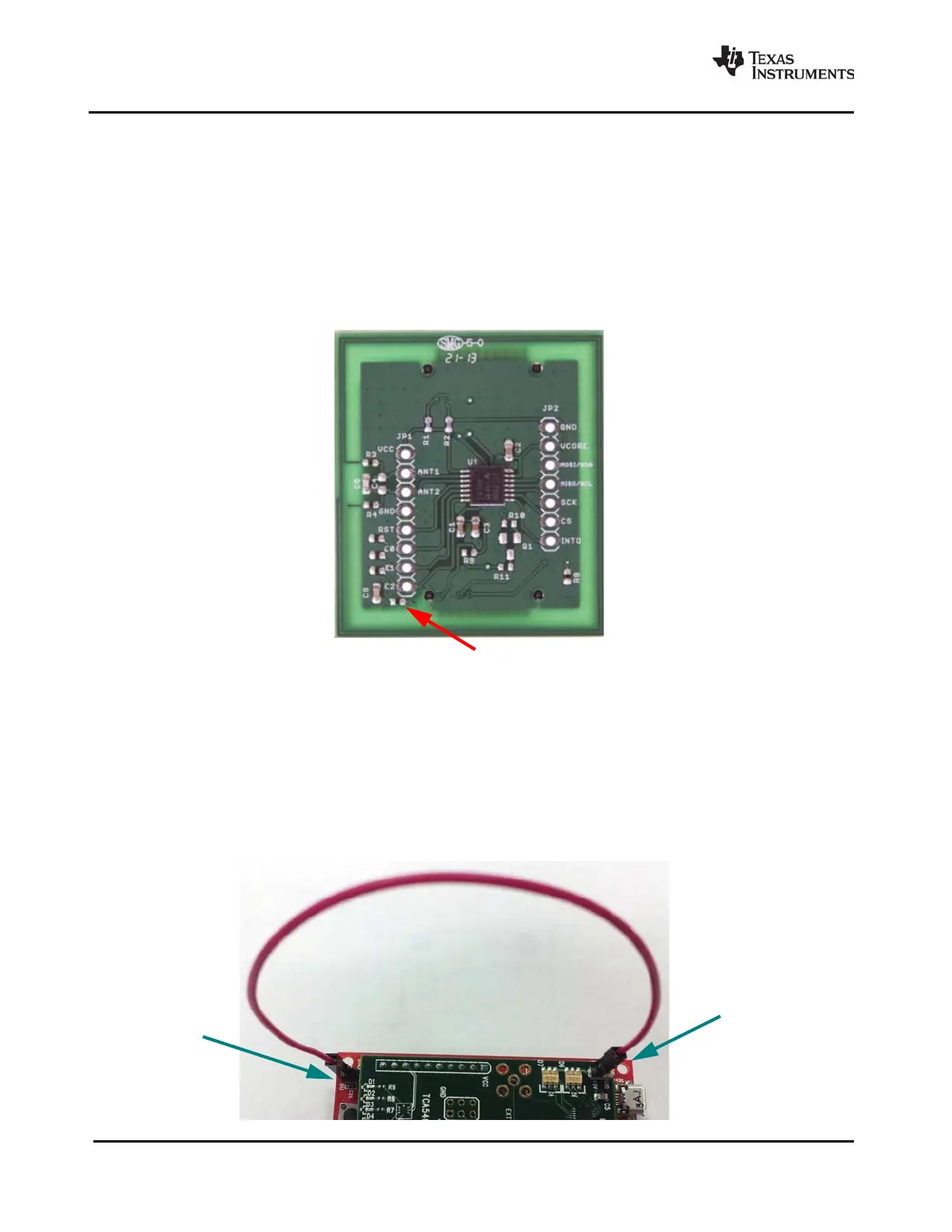

Hardware Modification Note: In order to use the RF430CL330 module with a Wireless Connectivity
Adapter board, you need to remove R12 from the RF430CL330H board.
3.8.6 TPL0401EVM Board
The I
2
C TPL0401EVM example requires an attached TPL0401EVM board. This board may be used with
the MSP-EXP430F5529LP, MSP-EXP430FR5969LP, MSP-EXP430FR6989LP, and MSP-
EXP432P401RLP.
A wire like the one shown in the following figure should be added to provide power to the TPL0401EVM
board. This figure shows the wire on an MSP-EXP430F5529LP board. Similar wiring is required to
connect the TPL0401EVM board to other boards supported by this example. A 5V power supply is
recommended to provide sufficient LED brightness.
