3.8 BoosterPacks
Several BoosterPack boards are used with the TI-RTOS examples. This section described those boards
and provides any special notes about installing the board.
3.8.1 SD Card BoosterPack
A microSD BoosterPack or SD Card BoosterPack should be used with examples that require an SD Card
reader on target boards that do not include an SD Card reader. This board may be used with the MSP-
EXP430F5529LP, MSP-EXP430FR5969LP, MSP-EXP430FR6989LP, and MSP-EXP432P401RLP.

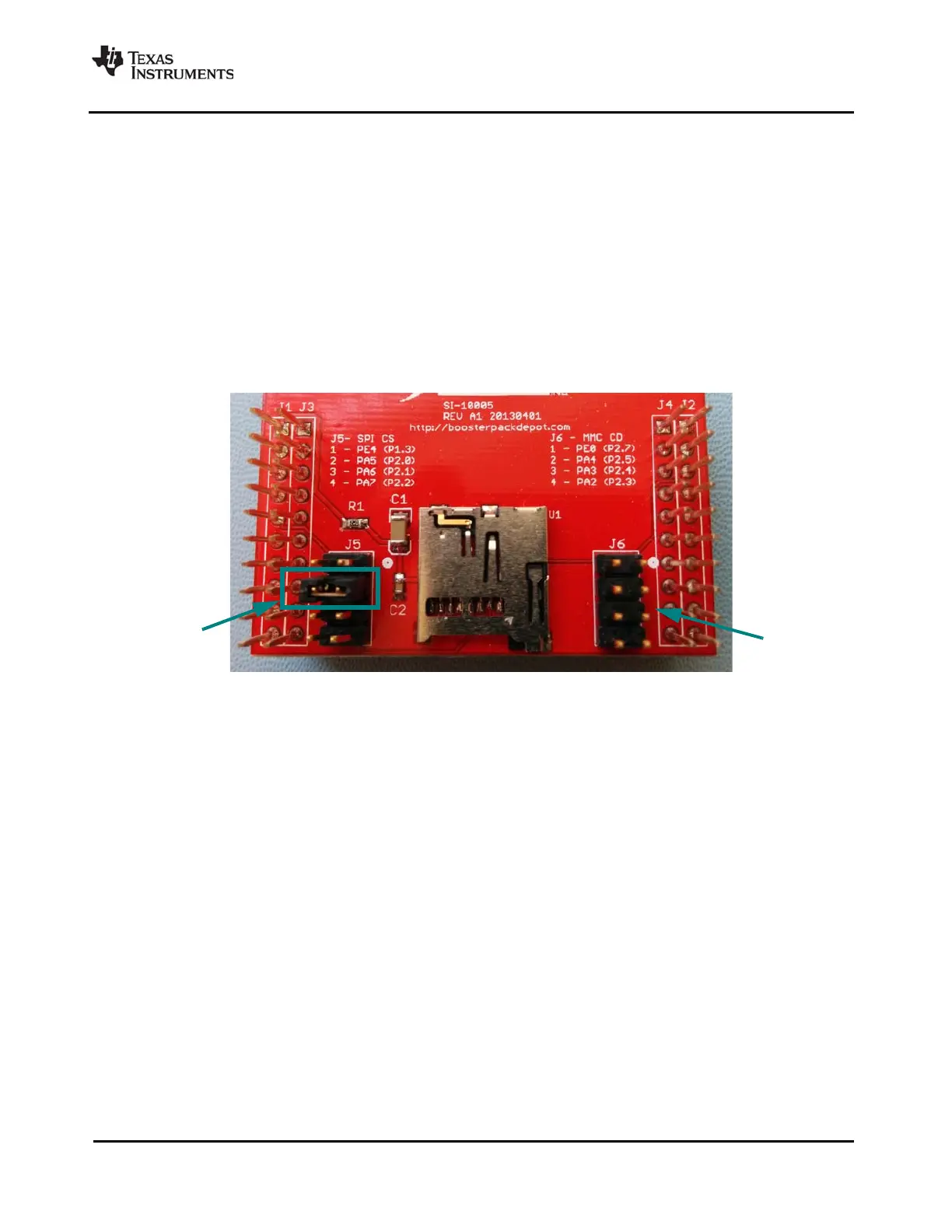

The figure below shows the jumper needed on the microSD BoosterPack to make it pin-compatible with
the SD Card BoosterPack.
3.8.2 TMP006 BoosterPack
The I
2
C TMP006 example uses the TMP006 BoosterPack to connect the TMP006EVM circuit board to
the LaunchPad. The TMP006 BoosterPack kit, which includes a TMP006EVM circuit board, is available
online. This board may be used with the MSP-EXP430F5529LP, MSP-EXP430FR5969LP, MSP-
EXP430FR6989LP, and MSP-EXP432P401RLP.
3.8.3 Sharp Memory LCD BoosterPack
The LCD BoosterPack has a 96 x 96 pixel display that should be used with the graphics library demo
example on the MSP-EXP430FR5969LP. This board may also be used with the MSP-EXP430F5529LP
and MSP-EXP432P401RLP for applications you create. It is available on the TI eStore.
