Installat
ion
INS 034-9
11

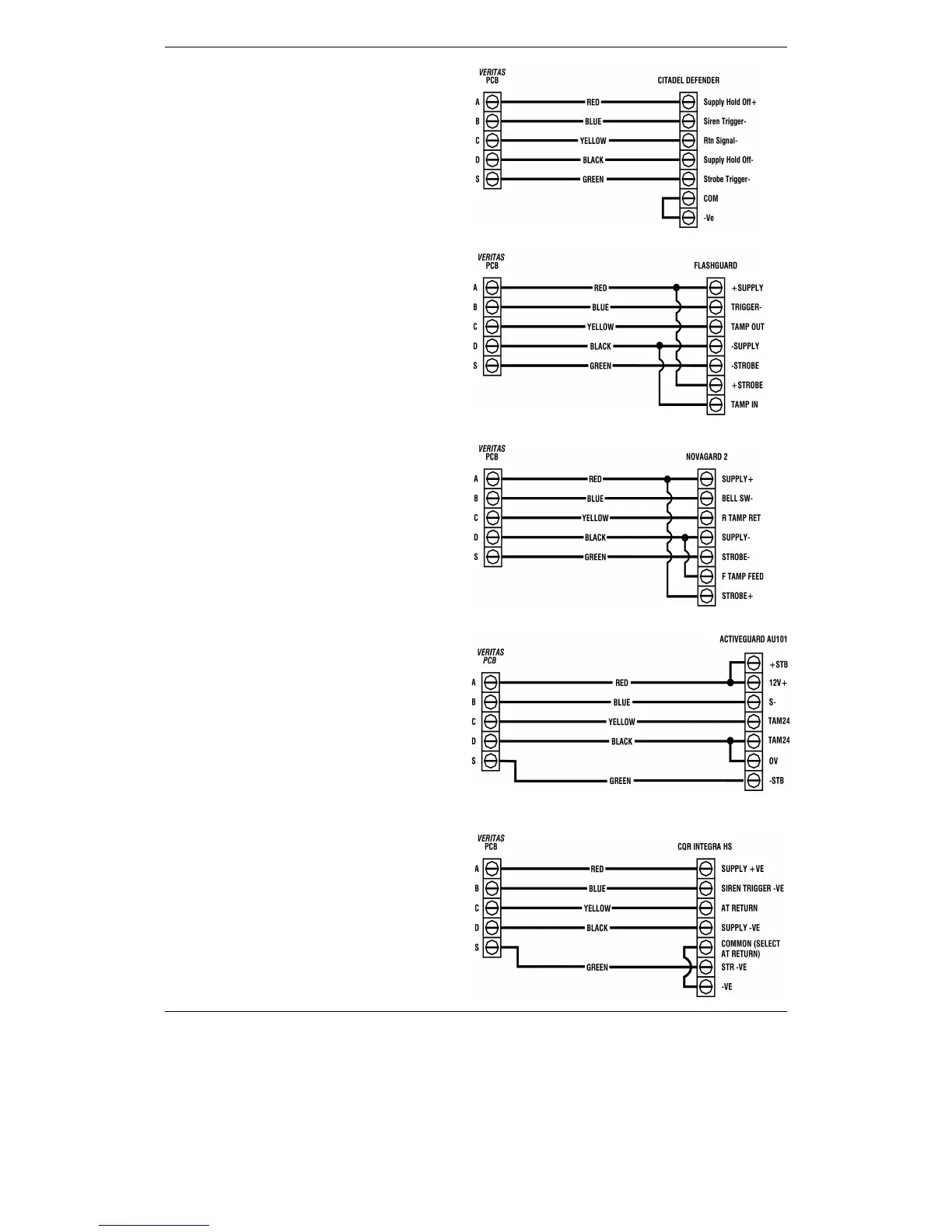

Figure 3
d - Citad
el Def
ender
Figure 3
e - Voluma
tic Flashg
uard
Figu
re 3f – Ga
rdiner Te
chno
logy
Novagard 2
Figure 3g - Activeguard
AU101
Figure 3h -
CQR Integr
a HS
10
12
Table of Contents
Default Chapter
1
Installation Manual
1
Table of Contents
2
1 Programming Summary
4
Programming Menu
4
Factory Settings
5
2 Installation
6
Introduction to the Control Panel
6
Testing the Control Panel (Pre-Installation)
6
Mounting the Control Panel
6
Wiring the Control Panel
7
Veritas PCB Layouts
8
Wiring the External Sounder and Strobe
9
Magnetic Contacts and Panic Buttons
12
Powered Detectors
13
Extension Speaker(S)
14
Internal Siren(S)
14
Global System Tamper
14
Commissioning the System (Initial Power Up)
15
Servicing the System
16
Trouble Shooting
17
No Power to the Unit (Mains Only)
17
No Power to the Unit (Battery Only)
17
No Power to the Unit (Mains & Battery)
17
Unit Does Not Accept Code
17
Unit will Not Set and Bleeps 10 Times
17
Unit will Not Set and Bleeps 9 Times
18
Unit will Not Set and Bleeps between 1 & 8 Times
18
Unit Goes into False Alarm
18
Unit Makes no Sound
18
System Operates but Remote Keypad Makes no Sound
19
The External Sounder or Strobe Does Not Work
19
The Panic Button Does Not Work
19
The Service Timers Cannot be Programmed
19
3 Programming
20
The Programming Menu
20
Programming the Miscellaneous Selections
20
Miscellaneous Selections Zero
20
Miscellaneous Selections One
21
Miscellaneous Selections Two
22
Miscellaneous Selections Three
22
Engineer Reset
23
Push to Set
24
Programming the Number of Alarm Activations
24
Testing the Sounders, Strobe and SW
24
Walk Testing
25
Re-Loading the Factory Settings
26
Programming the Switched Positive Output
26
Configuring the Remote Keypad(S)
27
Zone Types
27
Description of Zone Types
27
Programming the Zone Type
29
Changing Zone Types When Part Setting
30
Programming the Zones that will Change to Entry/Exit
31
Programming the Zones that will Change to Inhibited Entry
31
Programming the Zones that will Change to Guard
31
Programming the Date and Time
31
Programming the Date
32
Programming the Time
32
Programming the Service Timers
32
Programming Service Timer One (Reminder) #)
33
Programming Service Timer Two (Nuisance)
33
Programming Service Timer Three (Lockout)
33
Programming the Times
33
The Seven Event Basic Log
34
Clearing the Seven Event Basic Log
34
Displaying the Seven Event Basic Log
34
Programming the Suites
35
Programming the Part Set Suites
35
Programming the Chime Suite
35
Programming the Double Knock Suite
35
Programming the Manual Omit Suite
36
Programming the Zone Disable Suite
36
Programming the Zone Soak Test Suite
36
Changing the Engineer Code
37
4 Technical Specification
38
Power Supply
38
Physical
38
Environmental
38
Electrical
38
Fuses
39
Miscellaneous
39
Safety Notes
39
European Standards
40
Warranty
41
5 Installation Records
42
Installation Details
42
Maintenance & Call-Out Record
42
Registered Installer Application Form
43
Technical Support
44
Other manuals for Texecom Veritas R8
