2. Mounting the machine
3

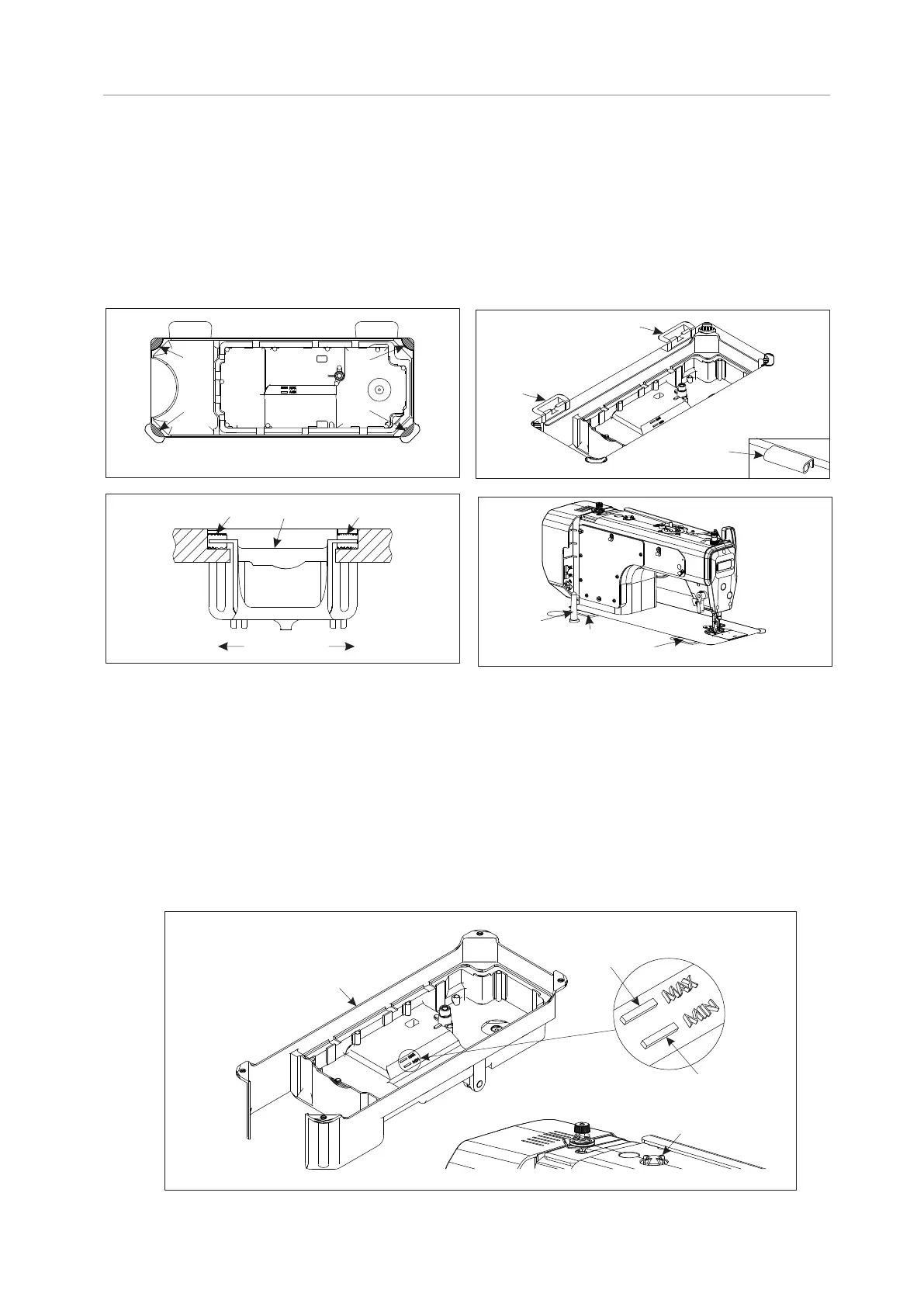

1. Fixing oil tray
1) Put the oil tray ② on the four groove corners on the sewing table.
2) Fix two arm cushion ① to the A side of oil tray ② (facing the operator). Fix the two stand bases ③ to the B
side of oil tray ② (hinge side),then fix the oil tray ②.
3) Insert machine head coupling hook ⑤ into the pin holes in the bottom plate such that it is embedded into the
coupling hook seat ④, and put the machine head onto the seating washer on four corners of the oil tray.
4) As shown in the picture, insert head support ⑥ into the machine table firmly.
2. Plug in the connecting wires on the electronic control.
① ①
③ ③
Fig.1
Fig.2
AB
Fig.3
⑤
④
Fig.4
④
⑤
② ①③
④
⑥
3. Lubrication of machine
1. Information on lubrication
1) Fill oil pan ① with sewing machine oil (10 while oil)up to MAX mark A.
2) When the oil level lowers below MIN mark B, refill the oil pan with the specified oil.
3) When you operate the machine after lubrication, you will see splashing oil through oil sight window ② if the
lubrication is adequate.
4) Note that the amount of the splash oil is unrelated to the amount of the lubricating oil.
Caution:
To prevent the unexpected startup of sewing machine, switch off the power supply before the operation is
conducted.
Fig.6
A
B
①
②
