5-7-5. Output ON/OFF with external contacts
It is possible to turn on or off output with external contacts if the
external control function is activated in Section “5-5-7. External control
(On/Off)” below. For the setting procedures, see Section “5-5-7.
External control (On/Off)”.
CHA ： Pins 21 and 22 (COM)
CHB ： Pins 12 and 13 (COM)
Short : OUTPUT ON
Open : OUTPUT OFF
1
2
25
26
EXT CONT 「J3」
Negative output
terminal of CHA
1
2
25
26
EXT CONT 「J3」
Negative output
terminal of CHB
CHB
OUTPUT ON/OFF
CHA
OUTPUT ON/OFF

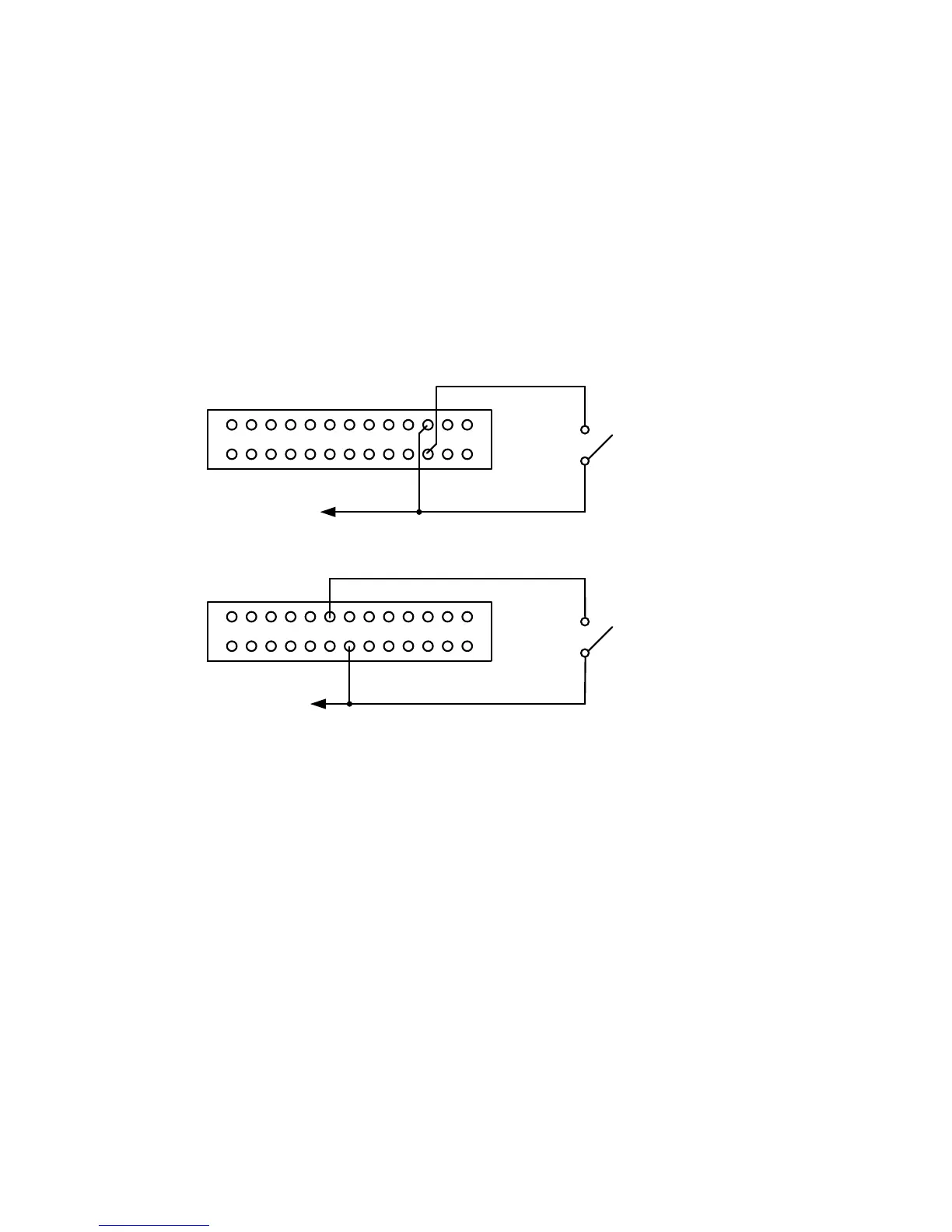

Fig.5-17 Output ON/OFF Terminals with External Contacts
