6-4-1. How to use the PSF-800LS
The PSF-800LS is not equipped with a power switch.
As soon as the master unit is turned on in parallel operation described
in Section “6-2. One-Control Parallel Operation”, the PSF-800LS is
turned on. In other words, the PSF-800LS cannot be used alone.
Check again if the AC power cable, signal cables and load wires are
connected properly before using it. Improper wiring or setting may
cause troubles.

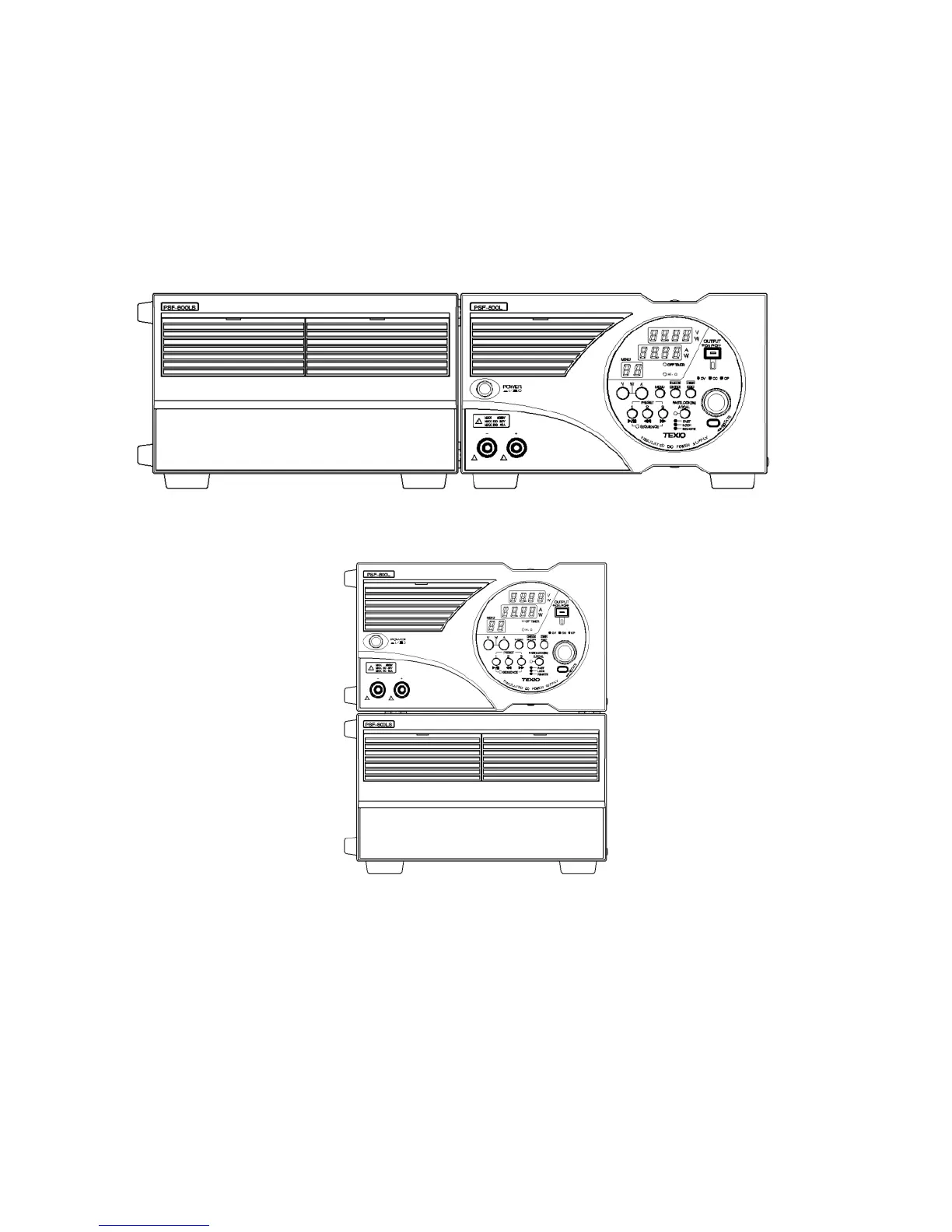

Fig.6-4 Connection Example of Slave-Only Unit (Horizontal Installation)
Fig.6-5 Connection Example of Slave-Only Unit (Vertical Installation)
To Next Page
