6-4. Power Extension using PSF-800LS (Parallel Connection Only)
The model PSF-800LS (slave-only unit) is especially designed for
power expansion.
It is possible to increase output up to 3200W (max.) in one-control
parallel operation (if the PSF-800L is the master unit).
PSF-1200L
:PSF-400L + PSF-800LS
PSF-1600L
:PSF-800L + PSF-800LS
For the connection method, see Section “6-2. One-Control Parallel
Operation” above.
※ Note that the PSF-800LS is not applicable to series operation.

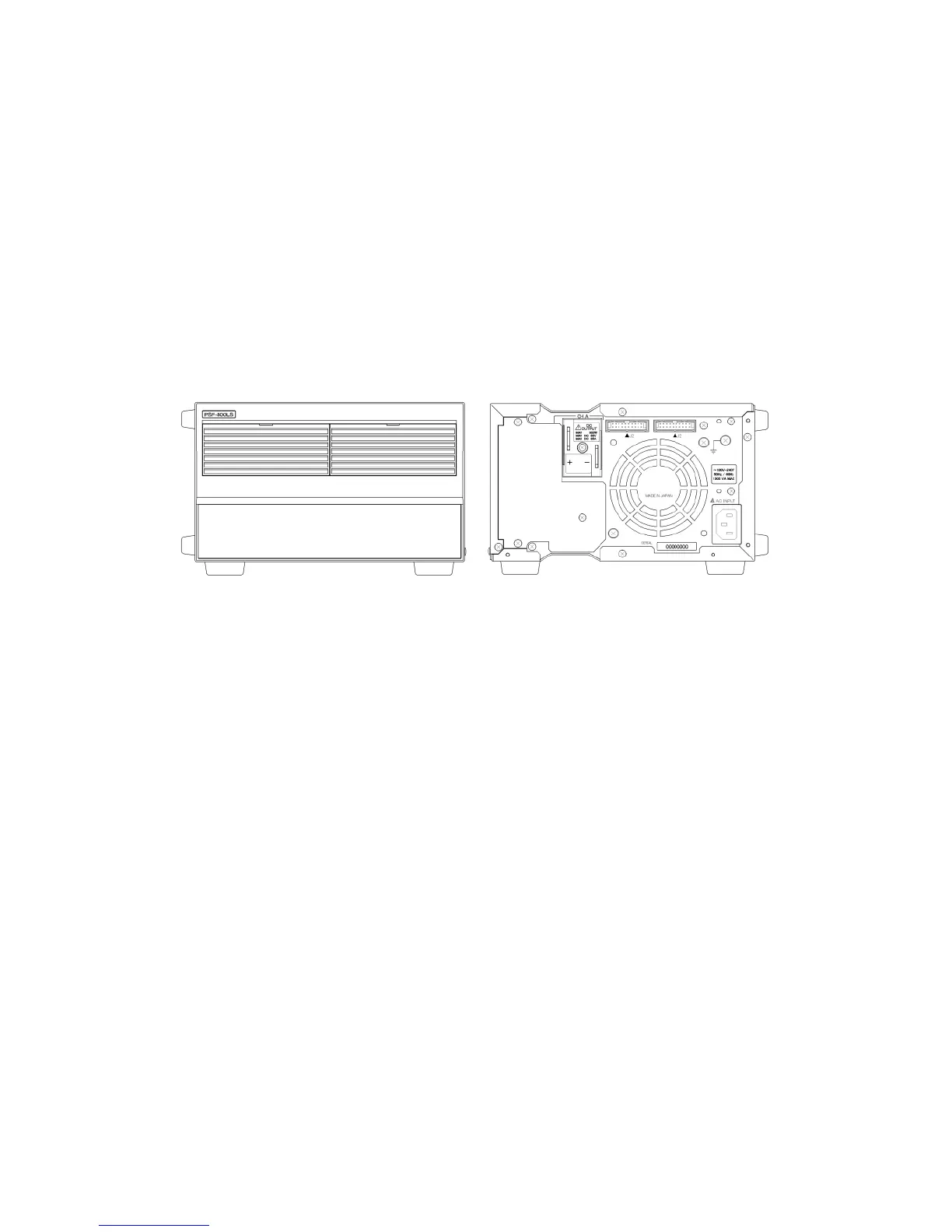

Fig.6-3 Front and Rear panel of PSF-800LS
