5-7-7. Various status signals (CV, CC & ALARM)
It is possible to check the status using the open collector output.
■ Constant-voltage (CV) status signal
This status signal goes Low when the PSF Series power supply unit
enters the constant-voltage (CV) status.
■ Constant-current (CC) status signal
This status signal goes Low when the PSF Series power supply unit
enters the constant-current (CC) status.
■ Alarm status signal
This status signal goes Low when the PSF Series power supply unit
enters the alarm status.
PC3H7 made by SHARP
Item
Symbol
Max. rating
Unit
Output
Collector-emitter voltage
V
CEO
66
V
Emitter-collector voltage
V
ECO
6
V
Collector current
I
C
50
mA
Collector loss
P
C
150
mW
Total allowable loss
P
T
170
mW
Isolation voltage
BV
S
2500
Vrms
CHA ： Constant-voltage (CV) status: Pins 23 and 26 (COM)
Constant-current (CC) status: Pins 24 and 26 (COM)
Alarm status: Pins 25 and 26 (COM)
CHB ： Constant-voltage (CV) status: Pins 4 and 1 (COM)
Constant-current (CC) status: Pins 3 and 1 (COM)
Alarm status: Pins 2 and 1 (COM)
26
EXT CONT 「J3」
1
2
25
CV
CC
ALARM
CHA status
26
EXT CONT 「J3」
1
2
25
CV
CC
ALARM
CHB status

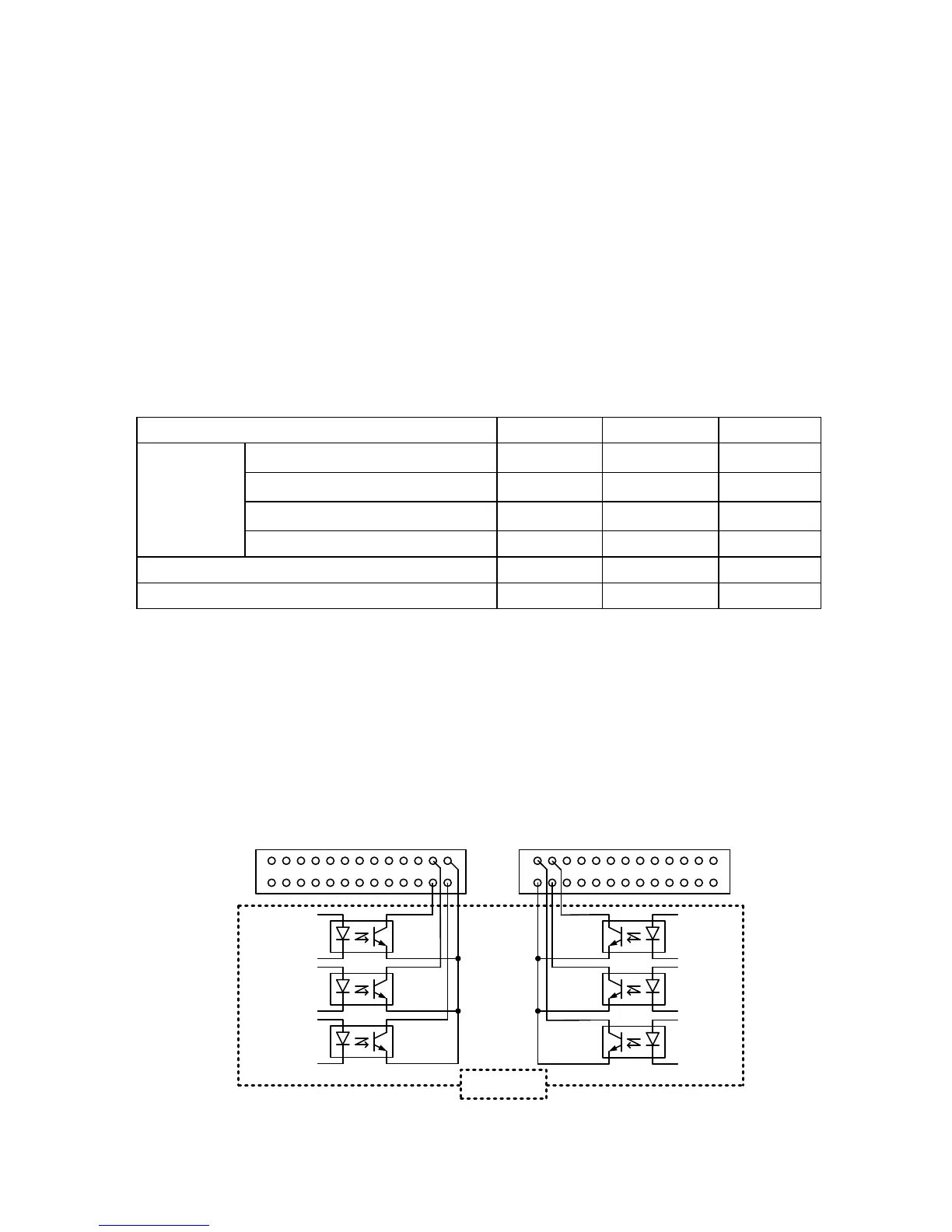

Inside of PSF
Series
Fig.5-19 Status Terminals
